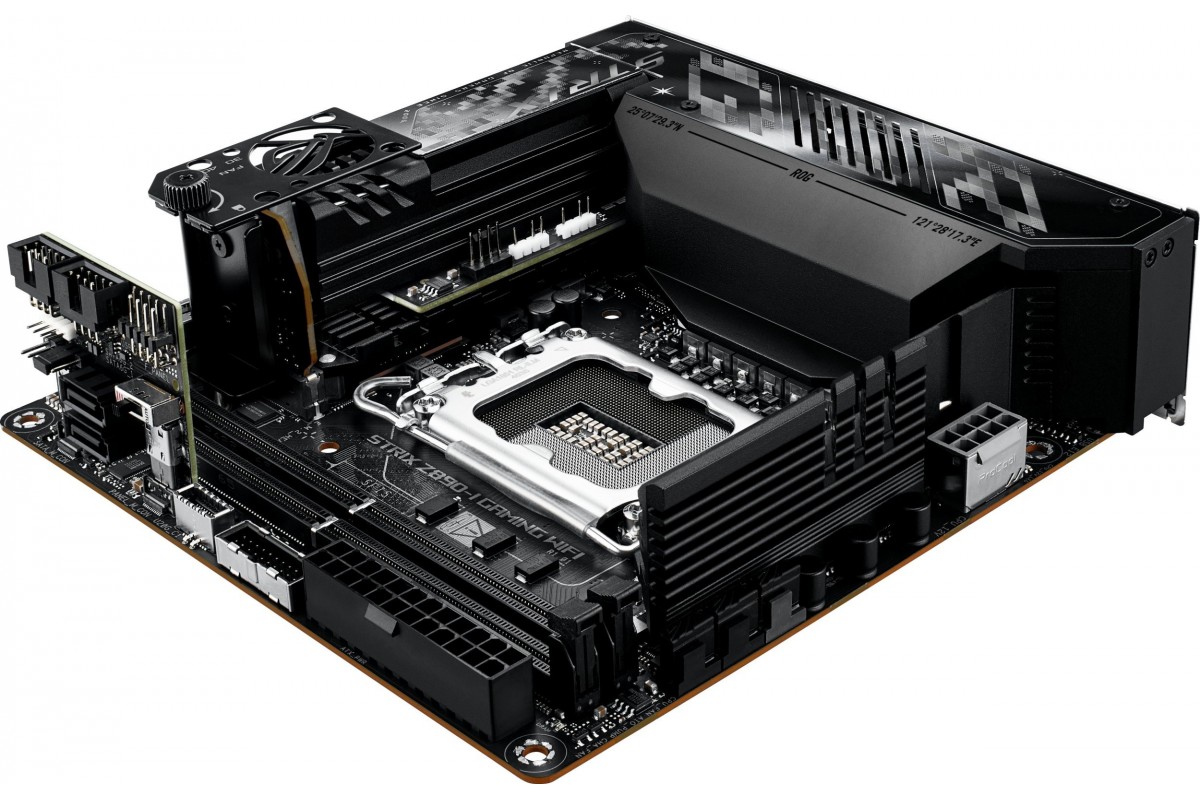

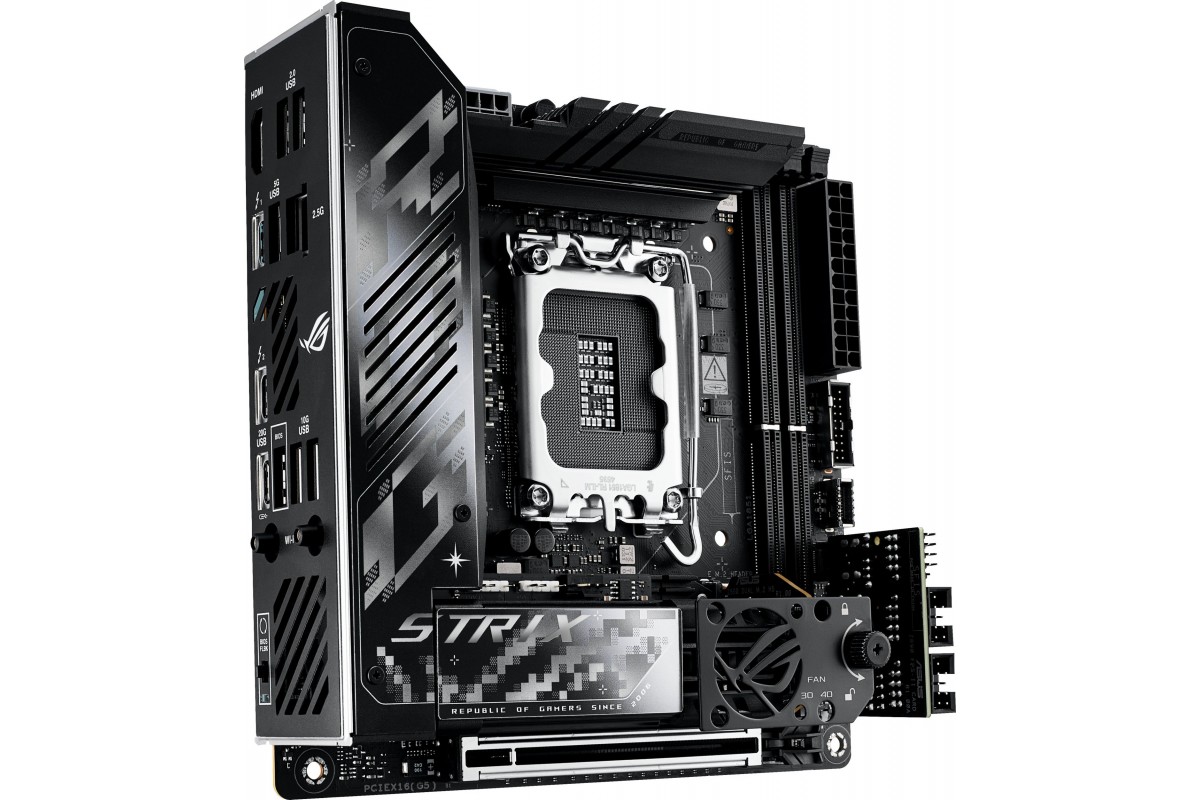

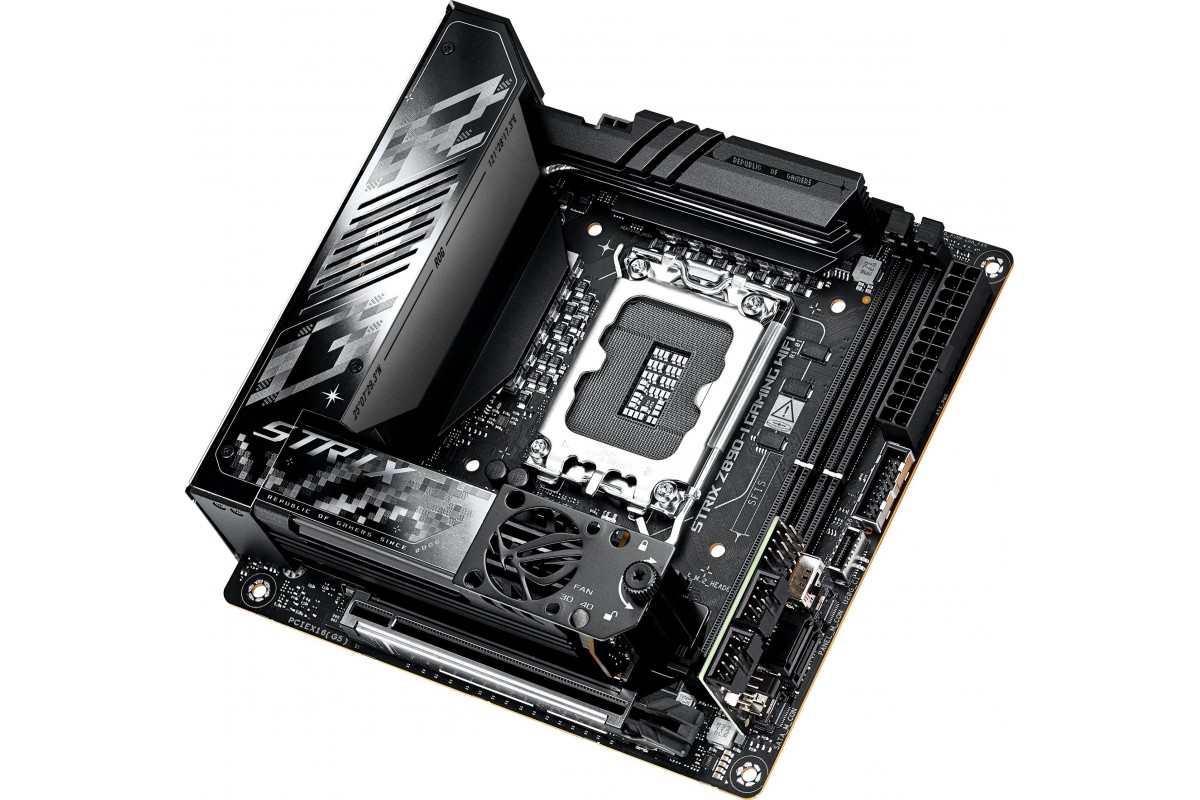

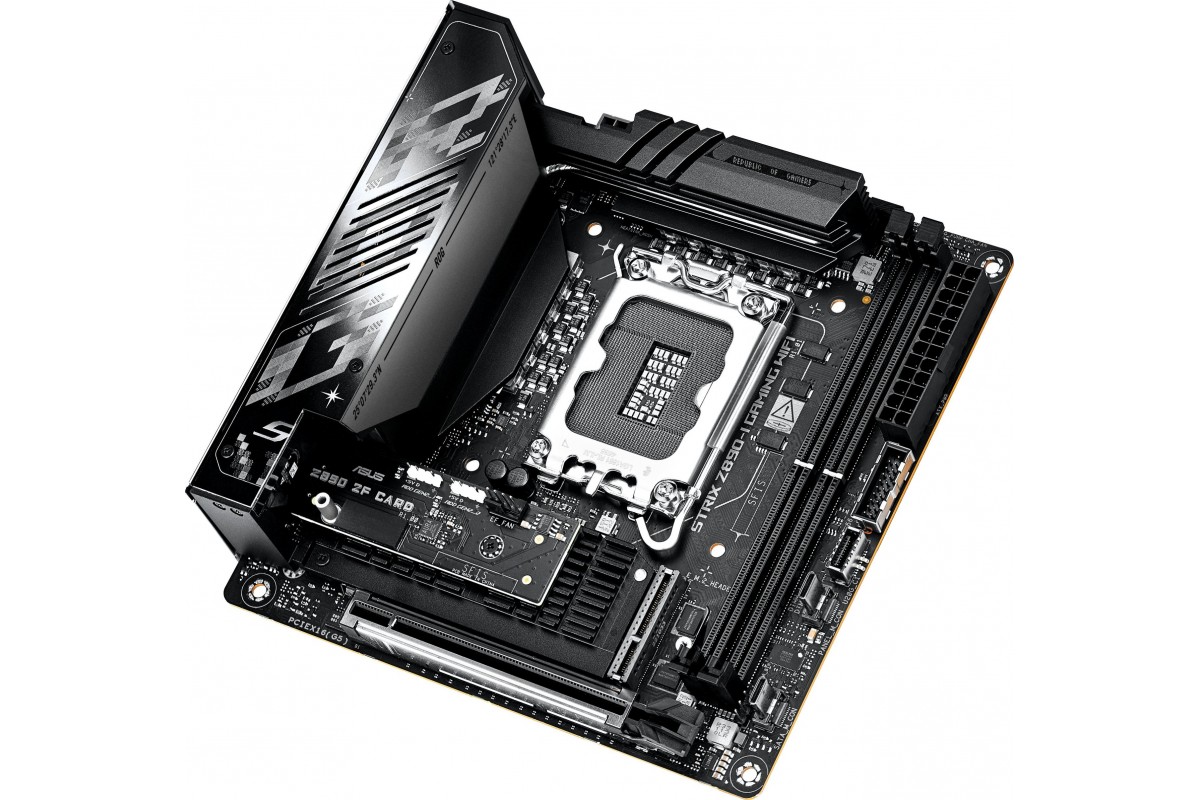

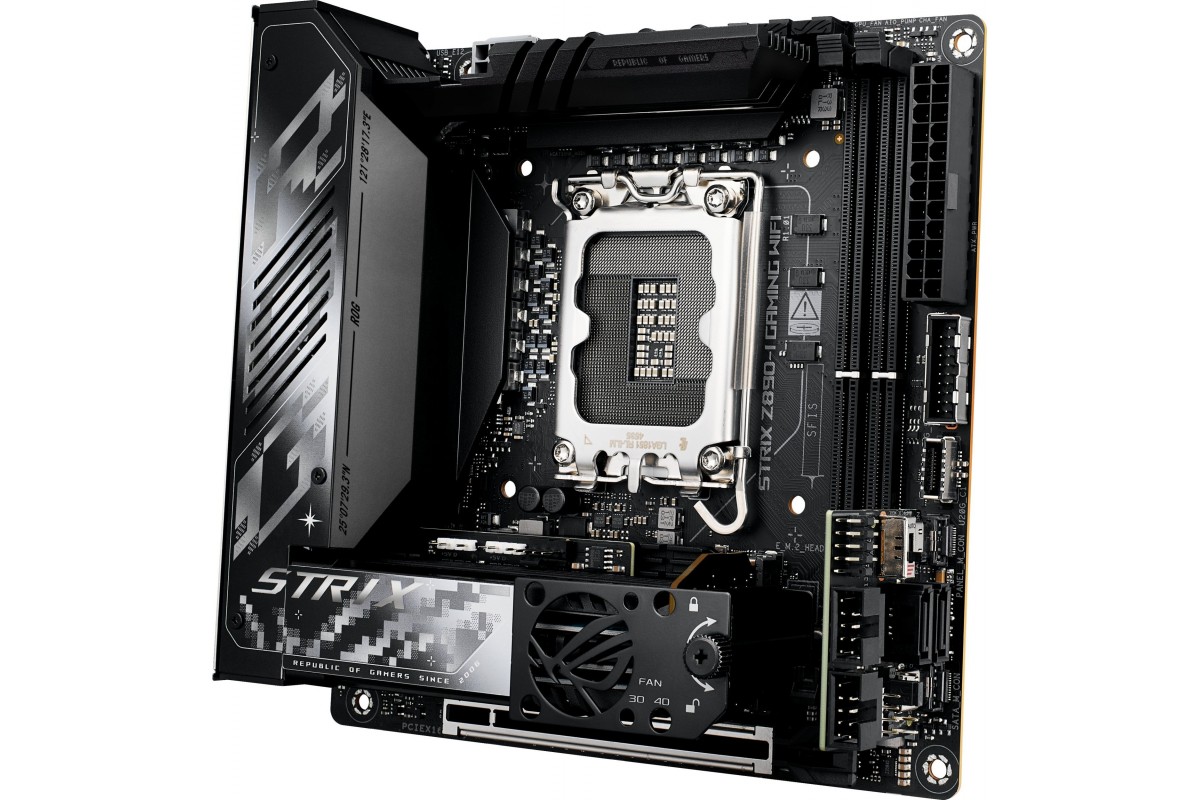

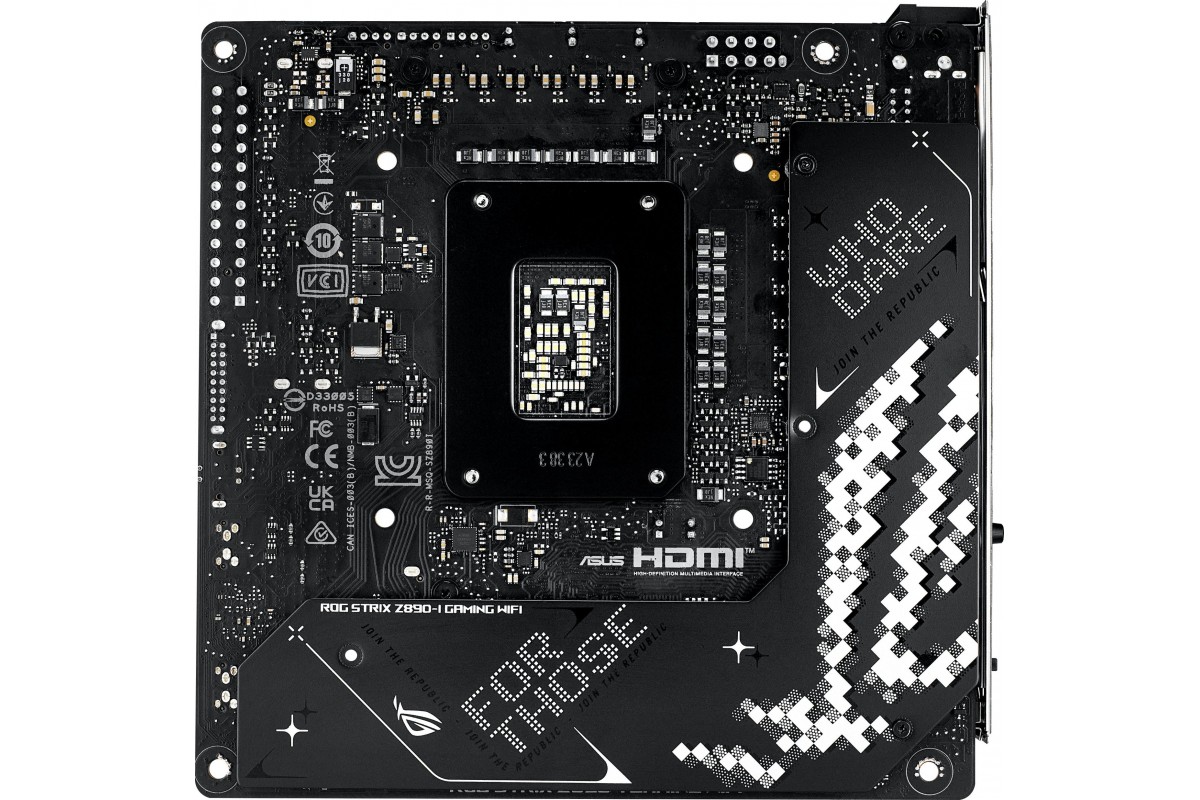

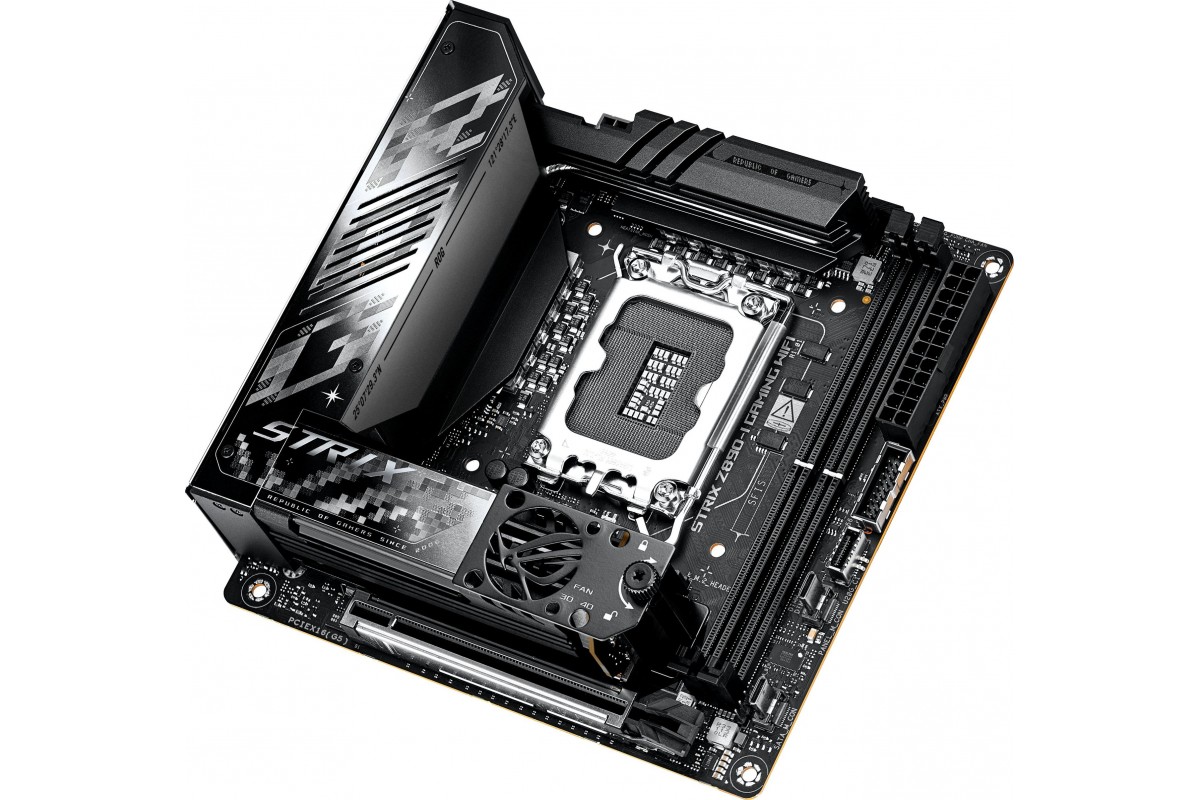

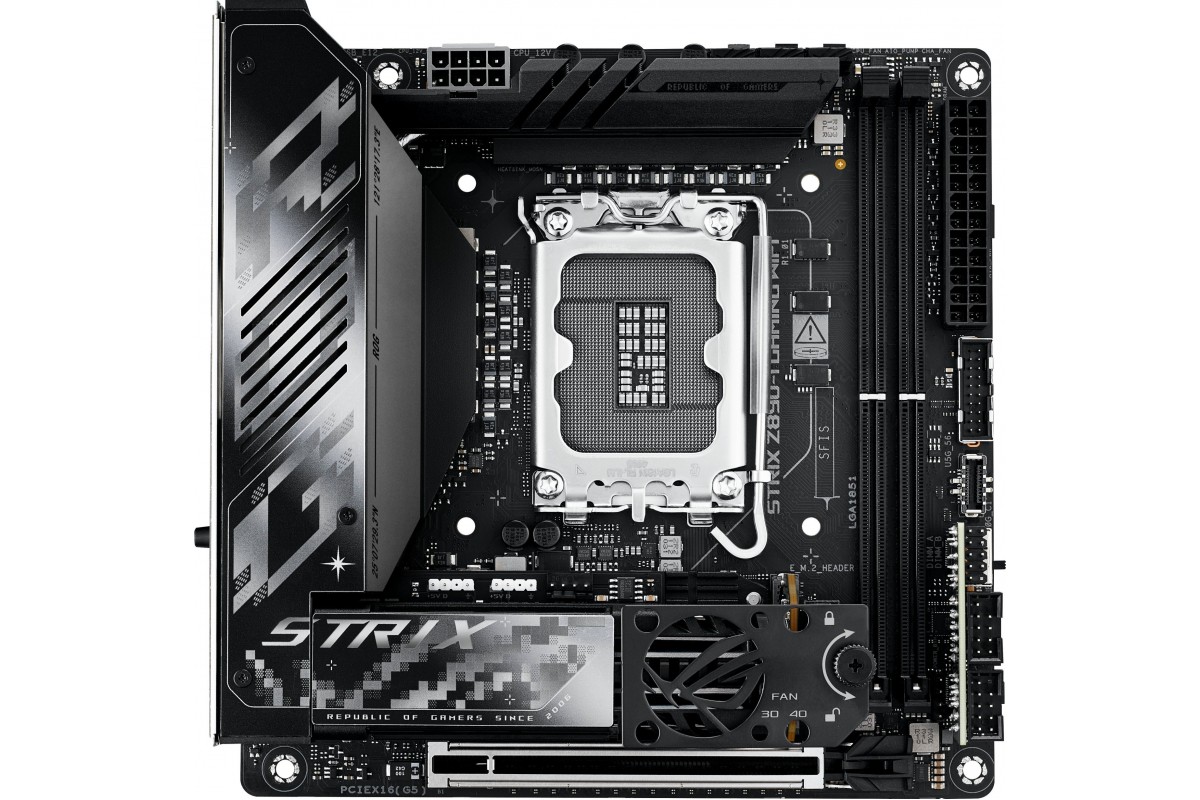

Intel Z890 Asus ROG STRIX Z890-I GAMING WIFI

Motherboard Form Factor
Mini ITX
Motherboard Width [mm]
170
Motherboard Depth [mm]
170
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel Z890
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
9200 MHz
Motherboard Maximum Memory Capacity
96 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
ESS SABRE9260Q
Motherboard Audio Channels
2
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Intel 2.5GbE
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x2 SATA 3 x2
Motherboard Internal Connectors
Przełącznik PCIe x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze AURA Addressable Gen 2 x2 Złącze Clear CMOS x1 Złącze CPU FAN 4-pin x1 Złącze czujnika termicznego x1 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x1 Złącze W_FLOW x1 Zworka CPU/DRAM overvoltage x1

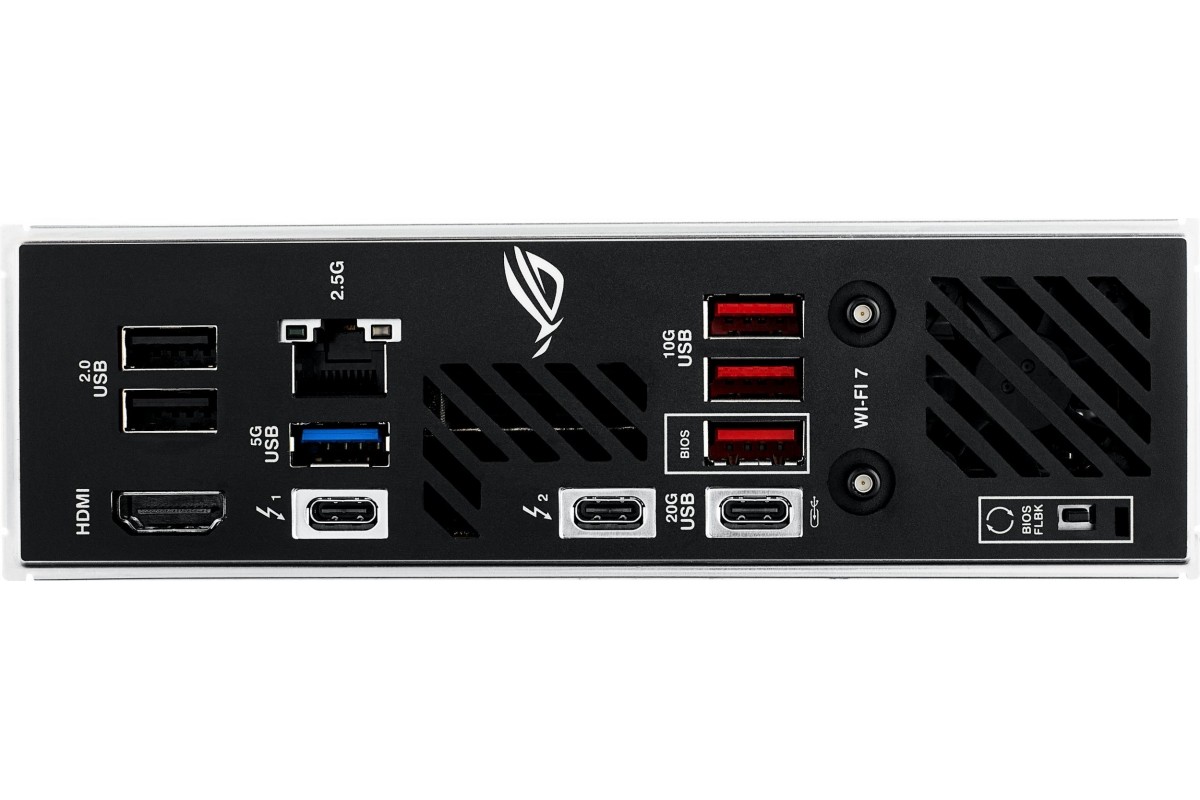

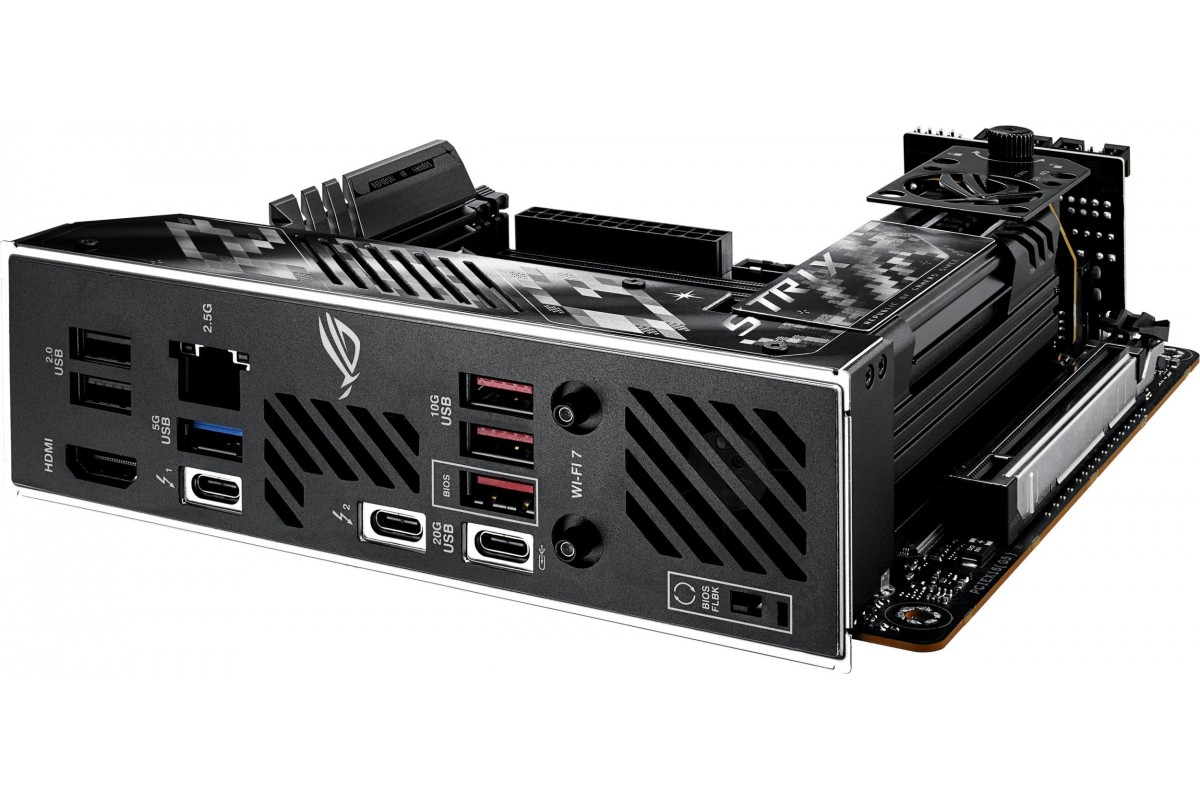

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 RJ-45 x1 Thunderbolt 4 x2 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB 3.2 Gen 2 (3.1 Gen 2) x3 USB-C 3.2 Gen 2x2 x1 Złącze anteny WiFi x2

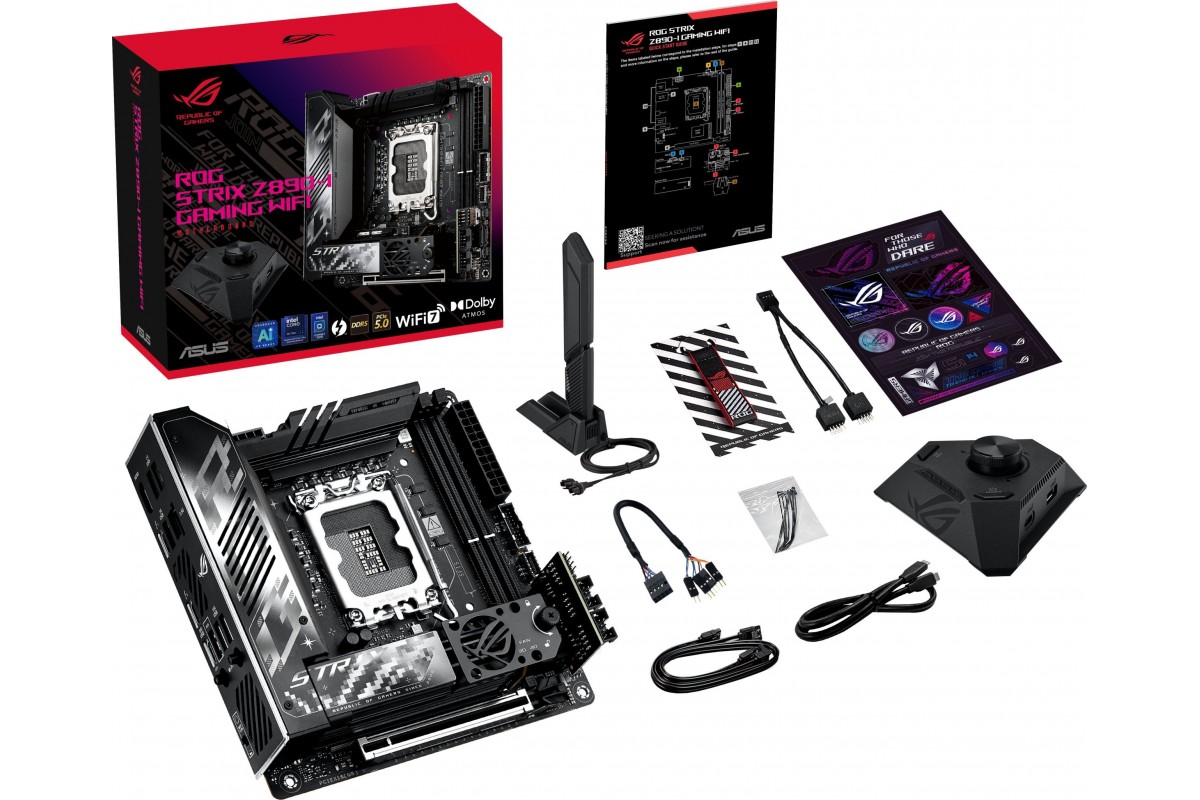

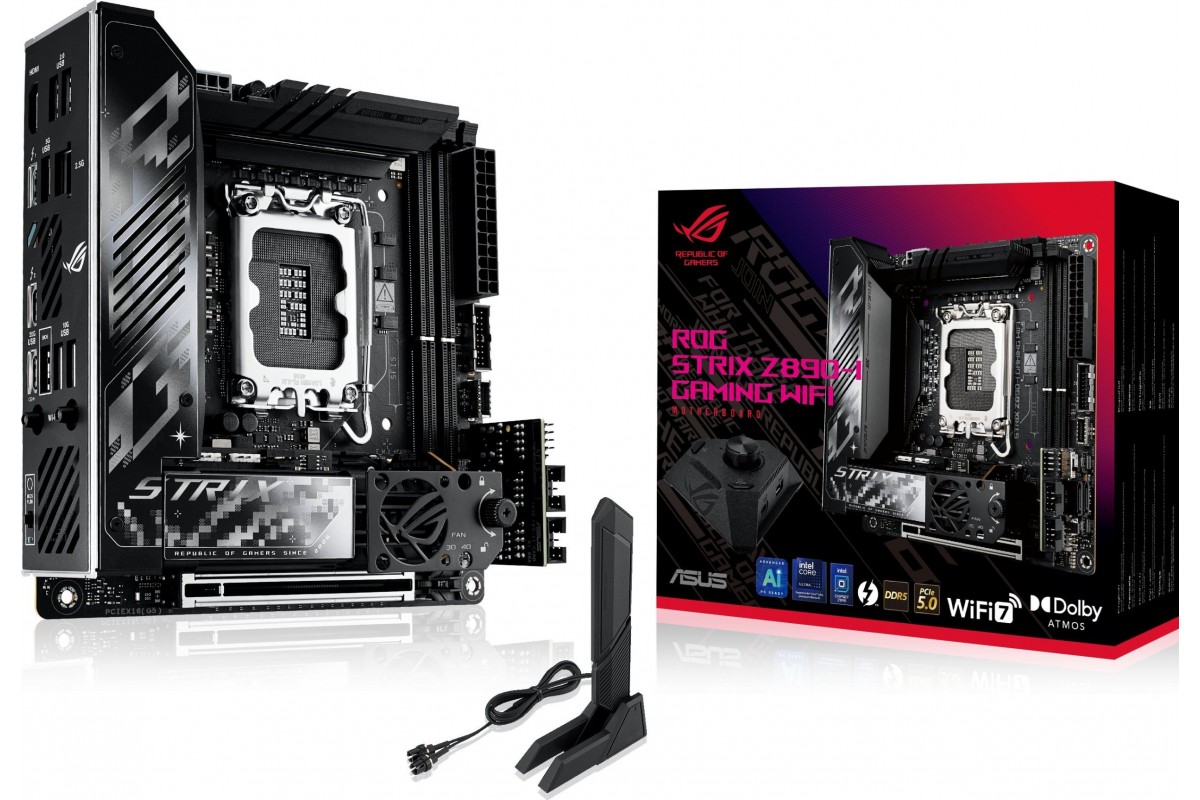

Motherboard Included Accessories

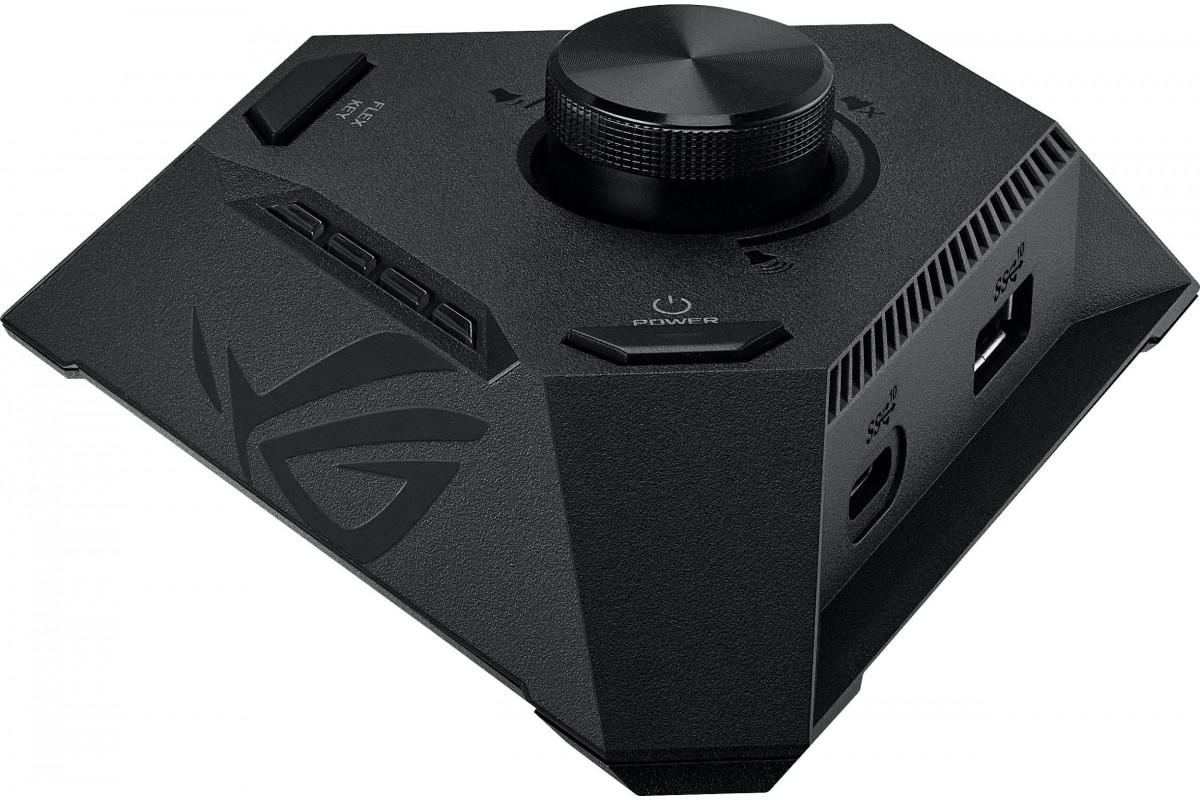

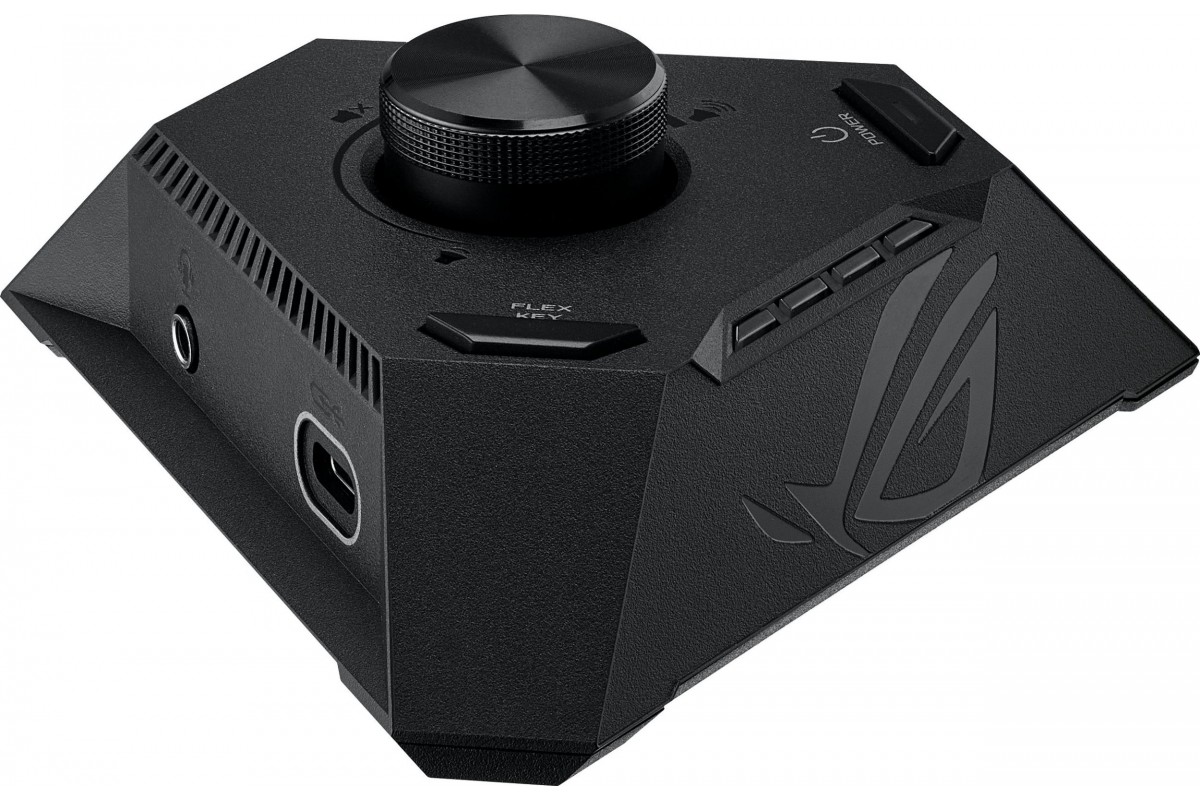

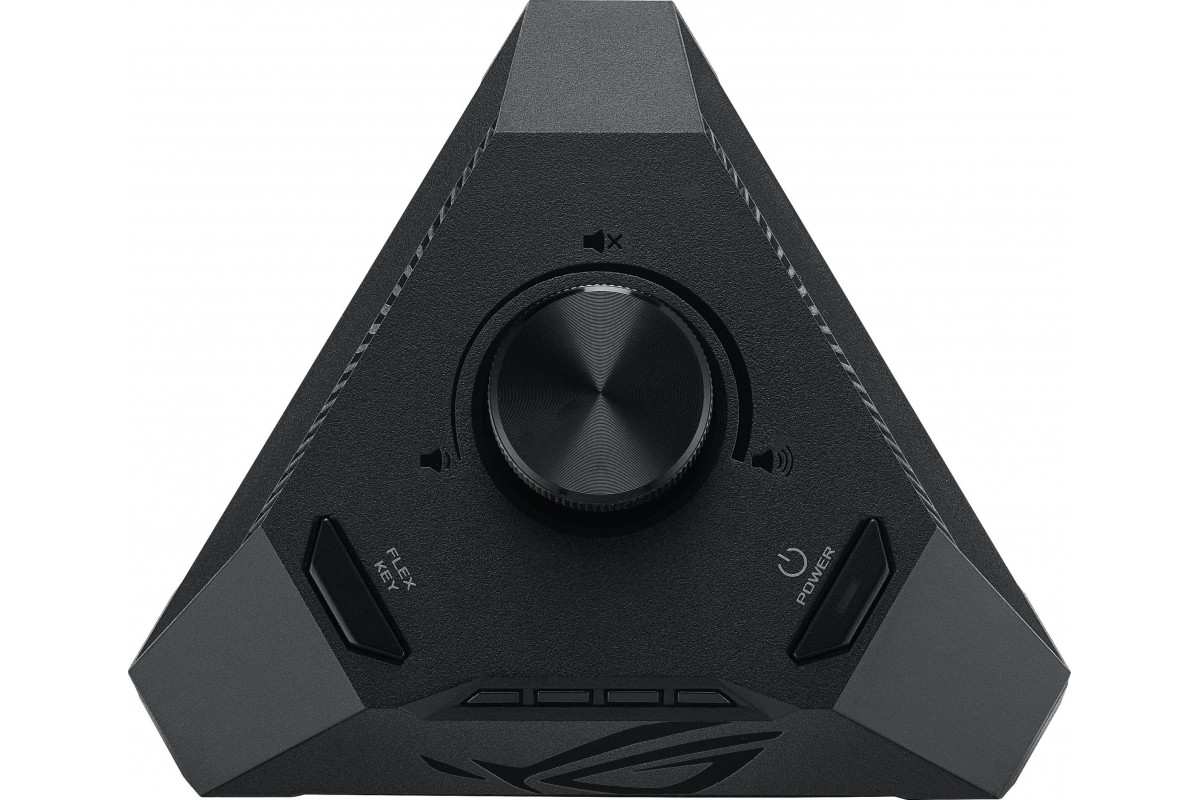

Antena WiFi Brelok do kluczy Karta dźwiękowa ROG Strix Hive II Moduł ROG FPS Naklejki Opaski do kabli Przewód panelu przedniego Przewód SATA III x2 Przewód zasilania USB-C Splitter ROG USB 2.0
