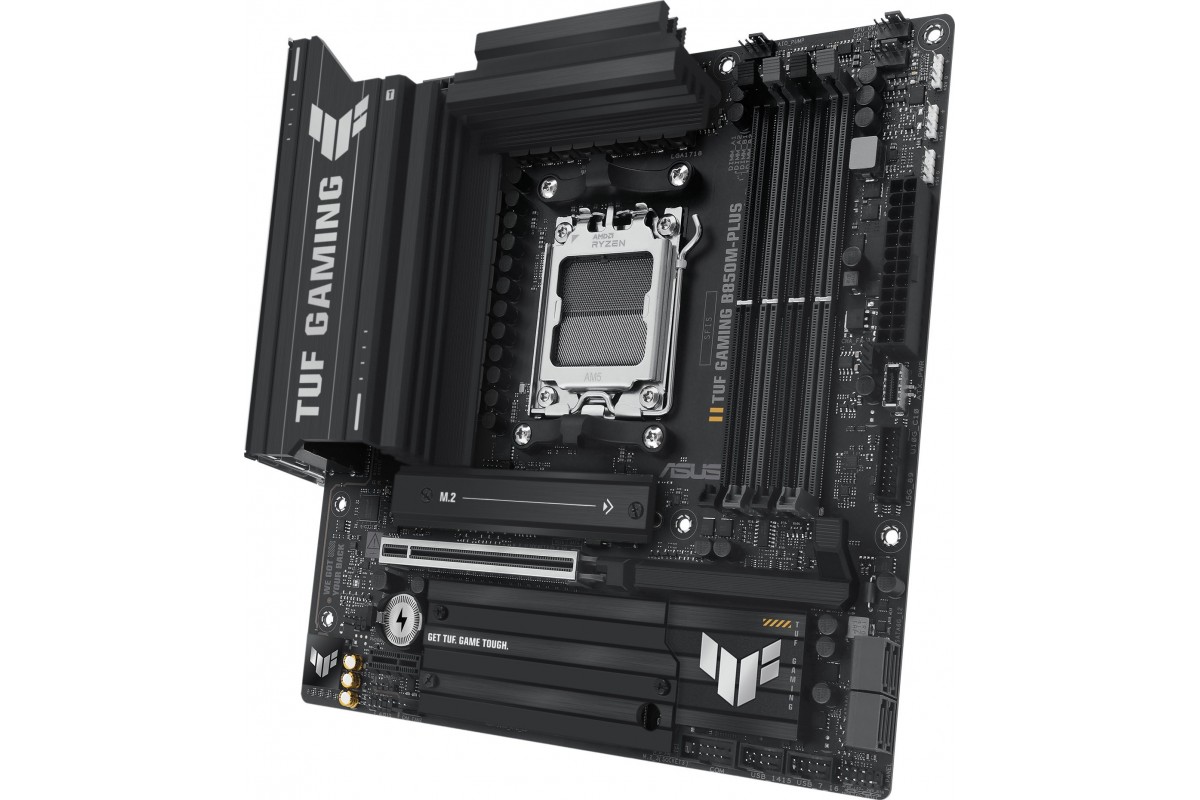

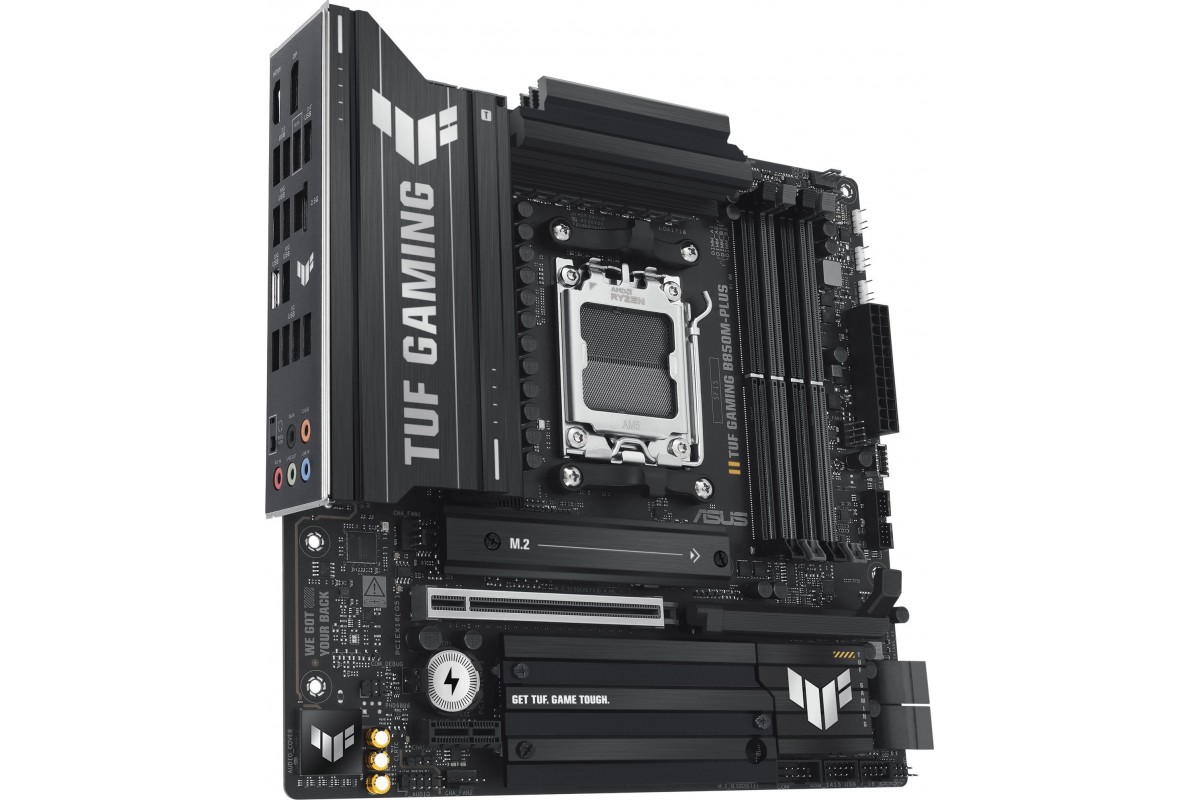

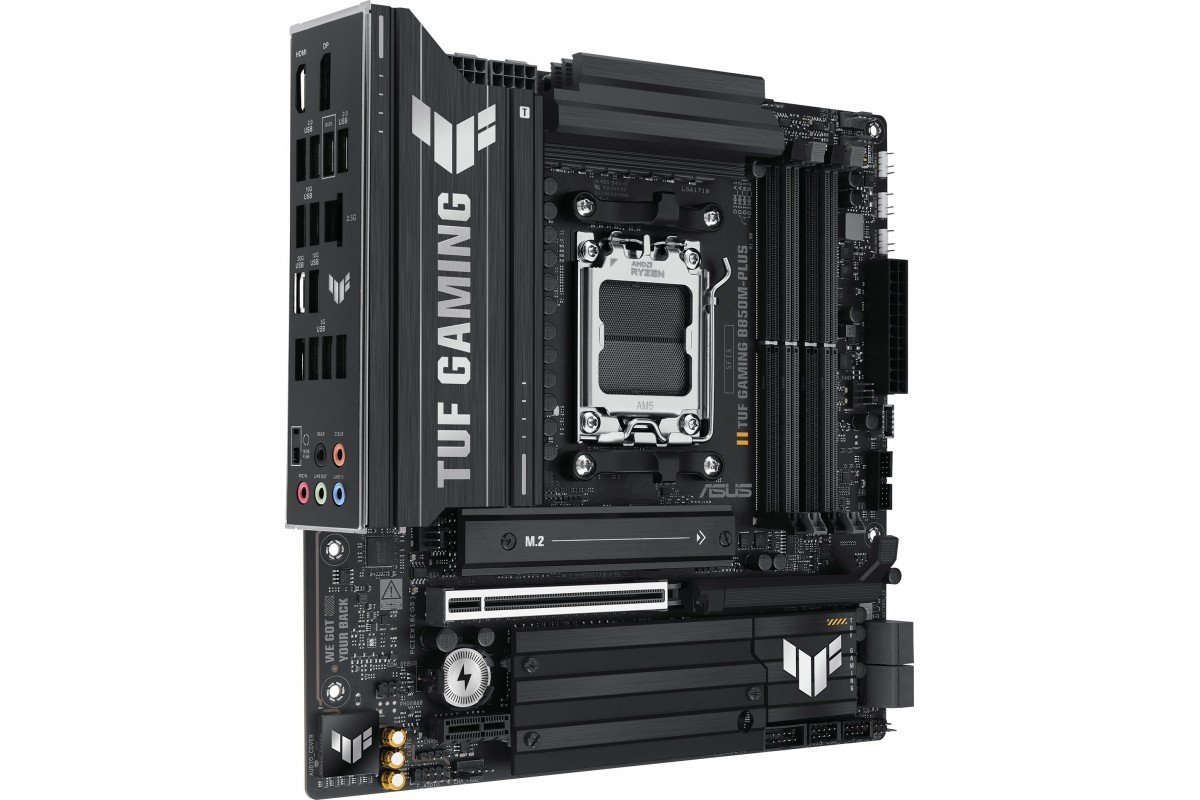

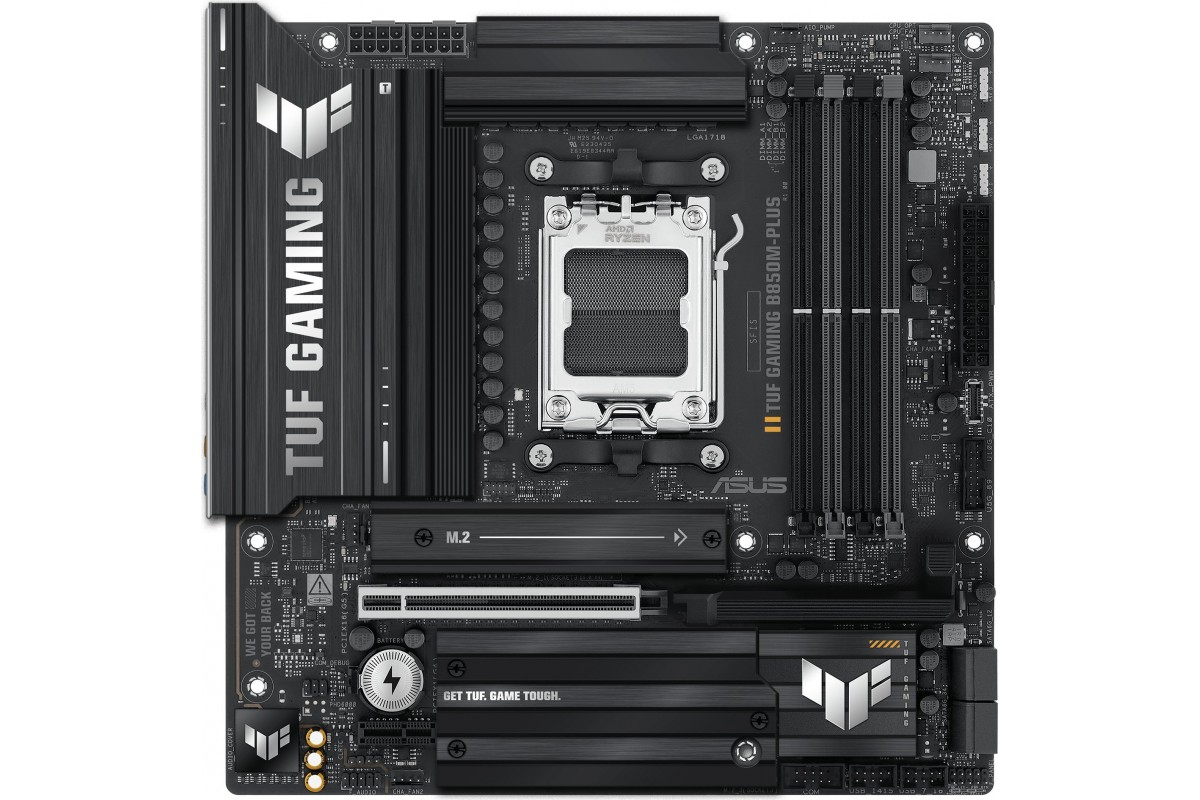

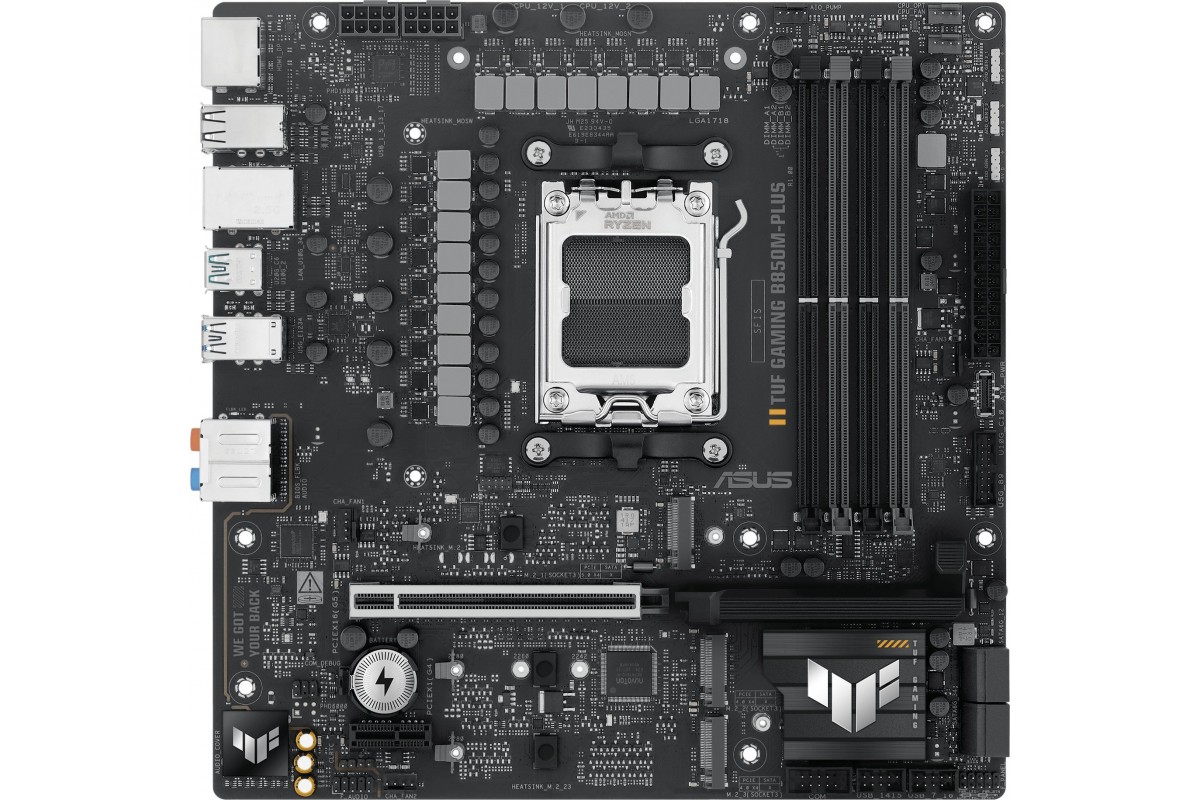

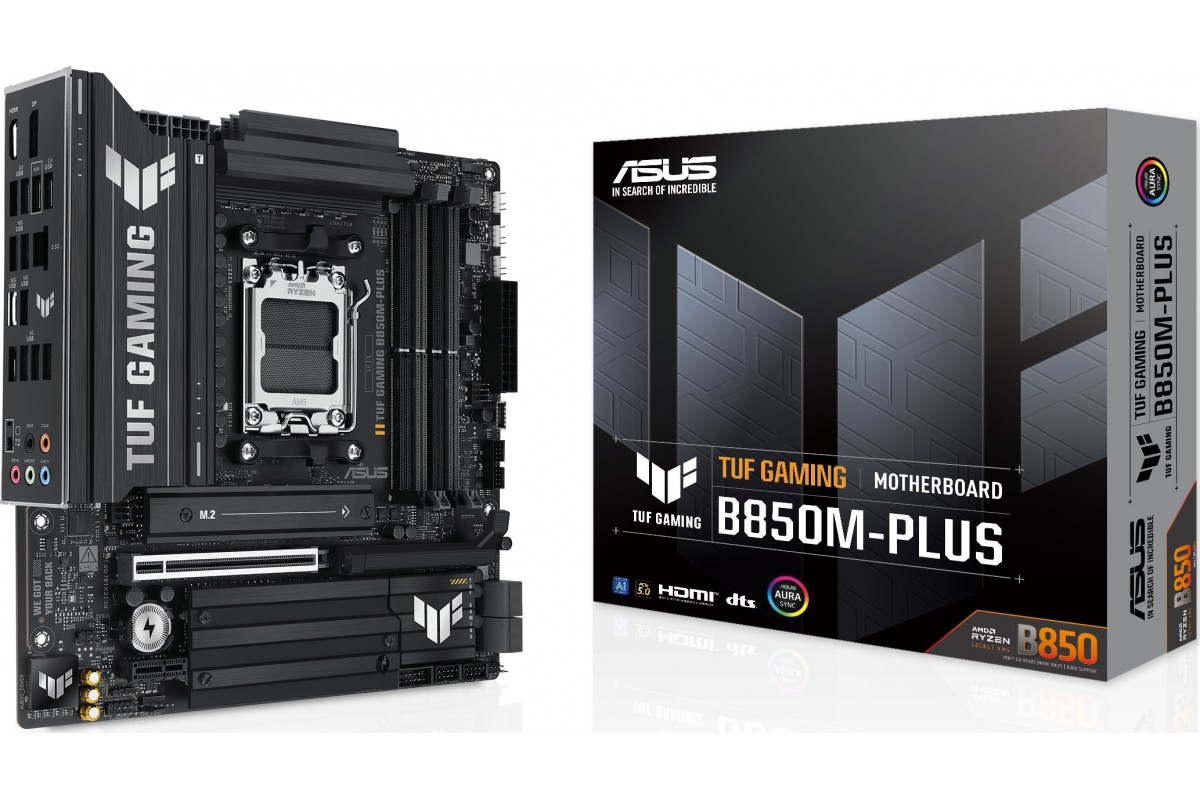

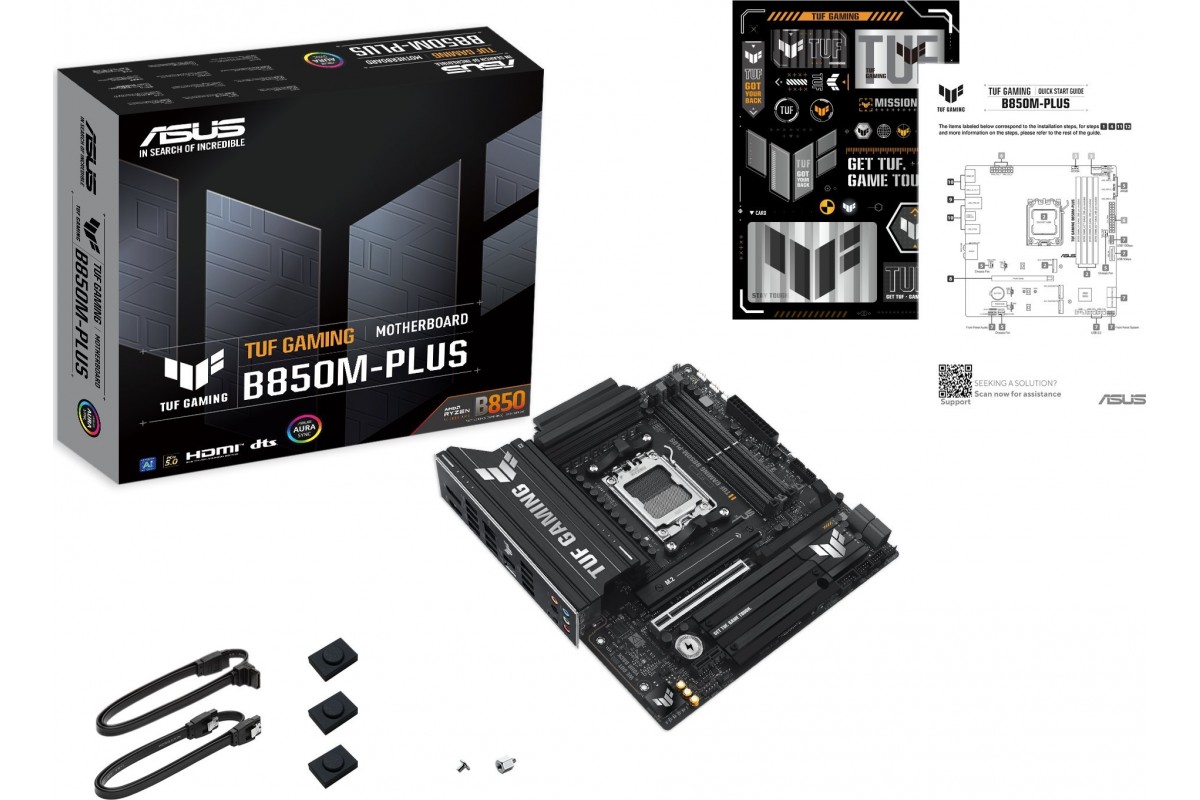

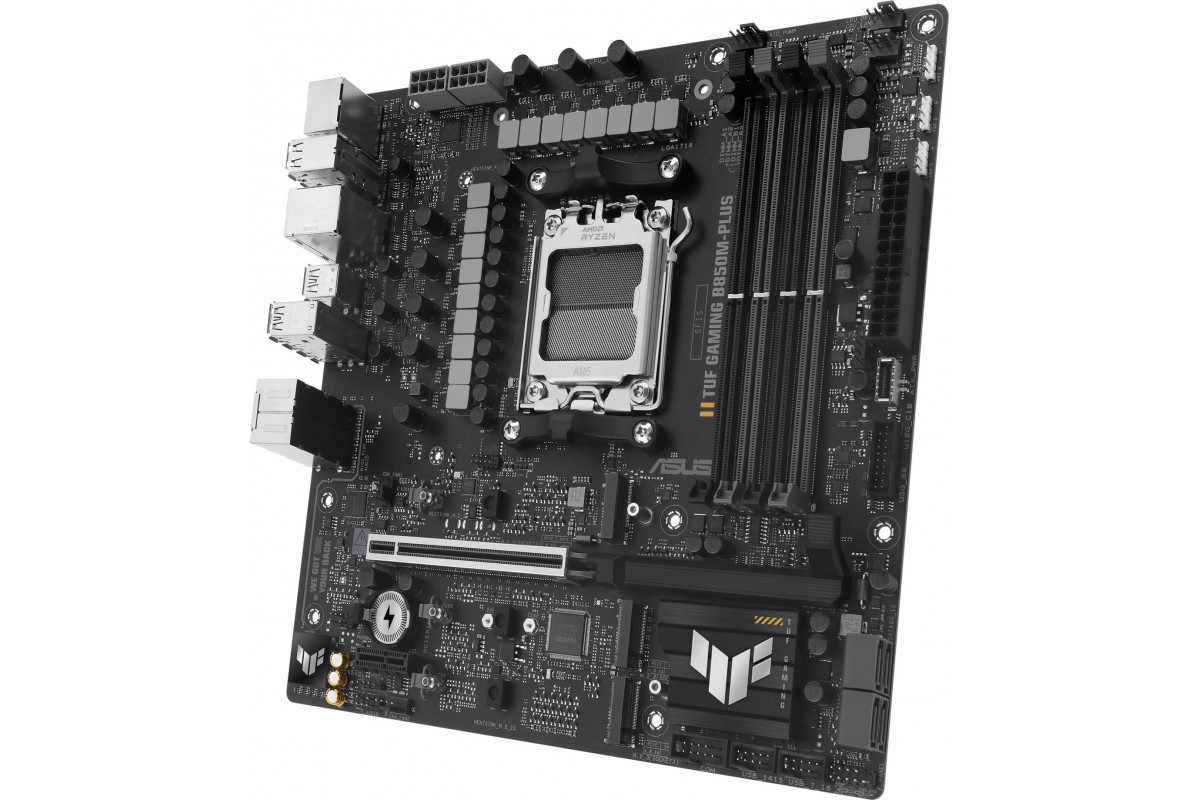

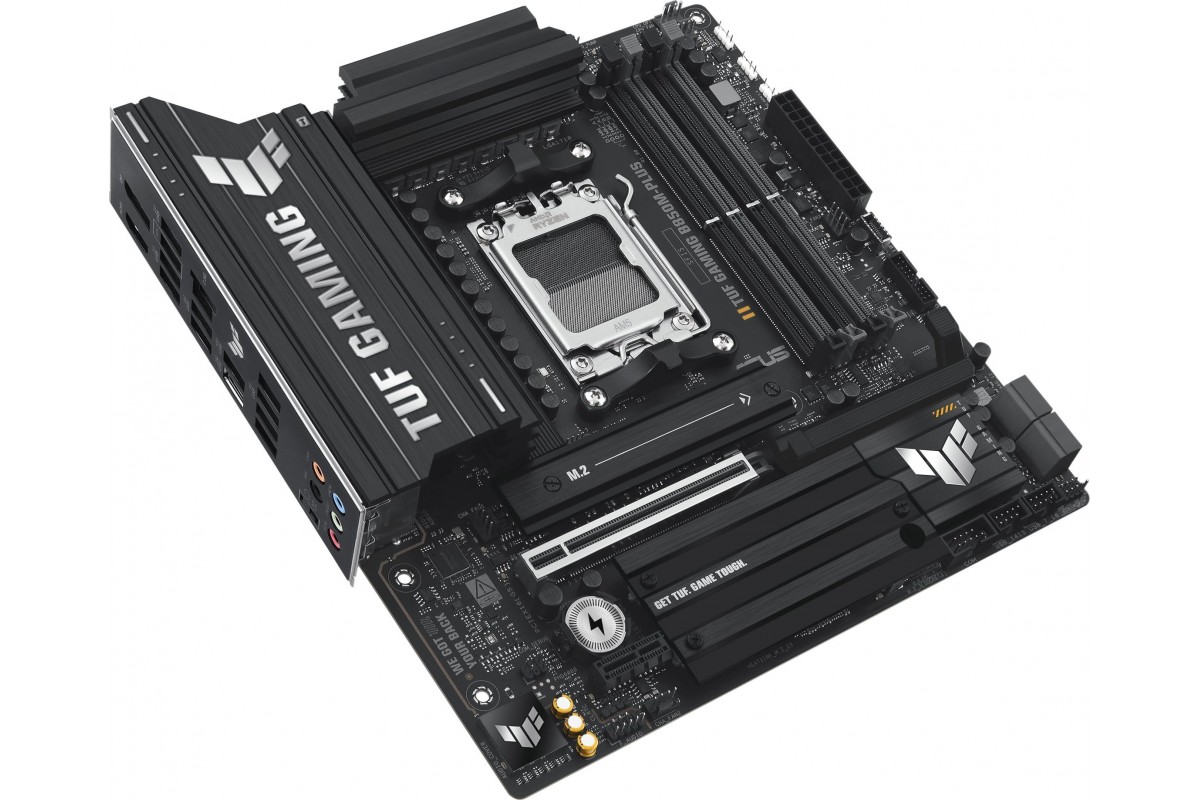

AMD B850 Asus TUF GAMING B850M-PLUS

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
244
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD B850
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
8000 MHz
Motherboard Maximum Memory Capacity
192 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 1220P
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek 2.5GbE
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x1 (1 szt.) PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x3 SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze AURA Addressable Gen 2 x3 Złącze Clear CMOS x1 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x3 Złącze szeregowe (COM) x1

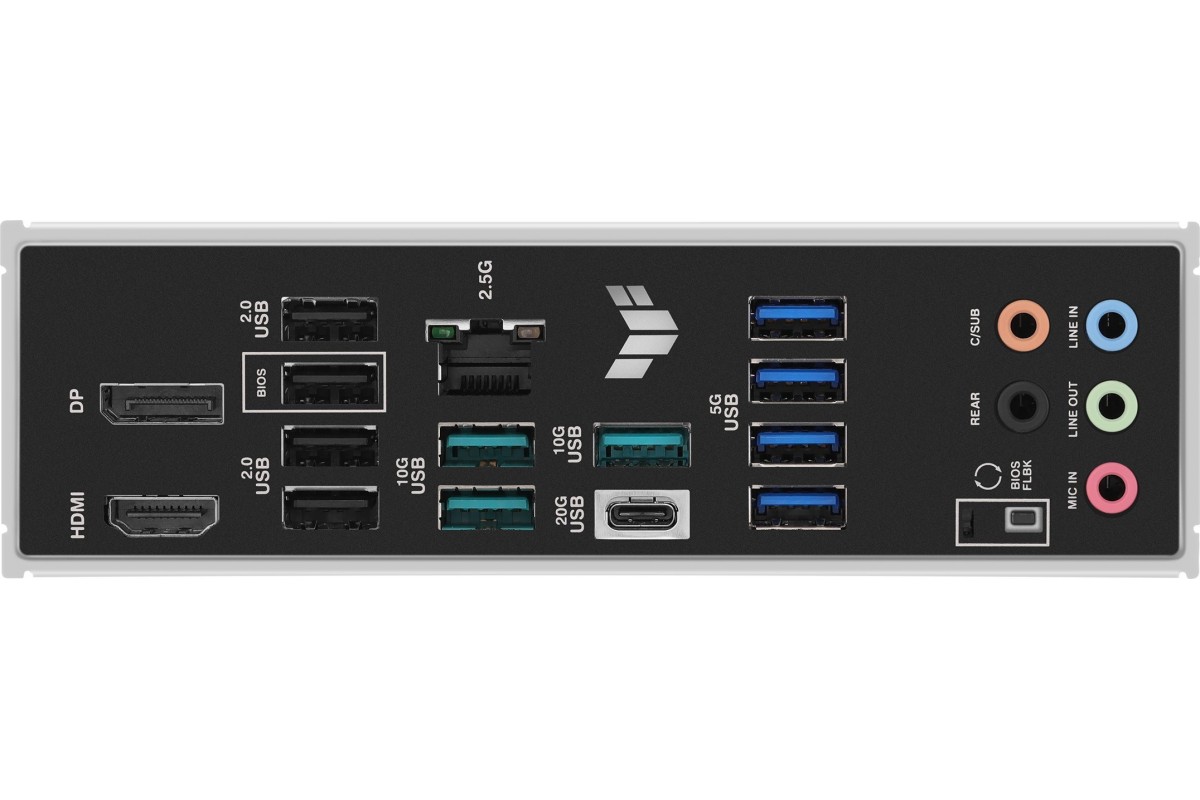

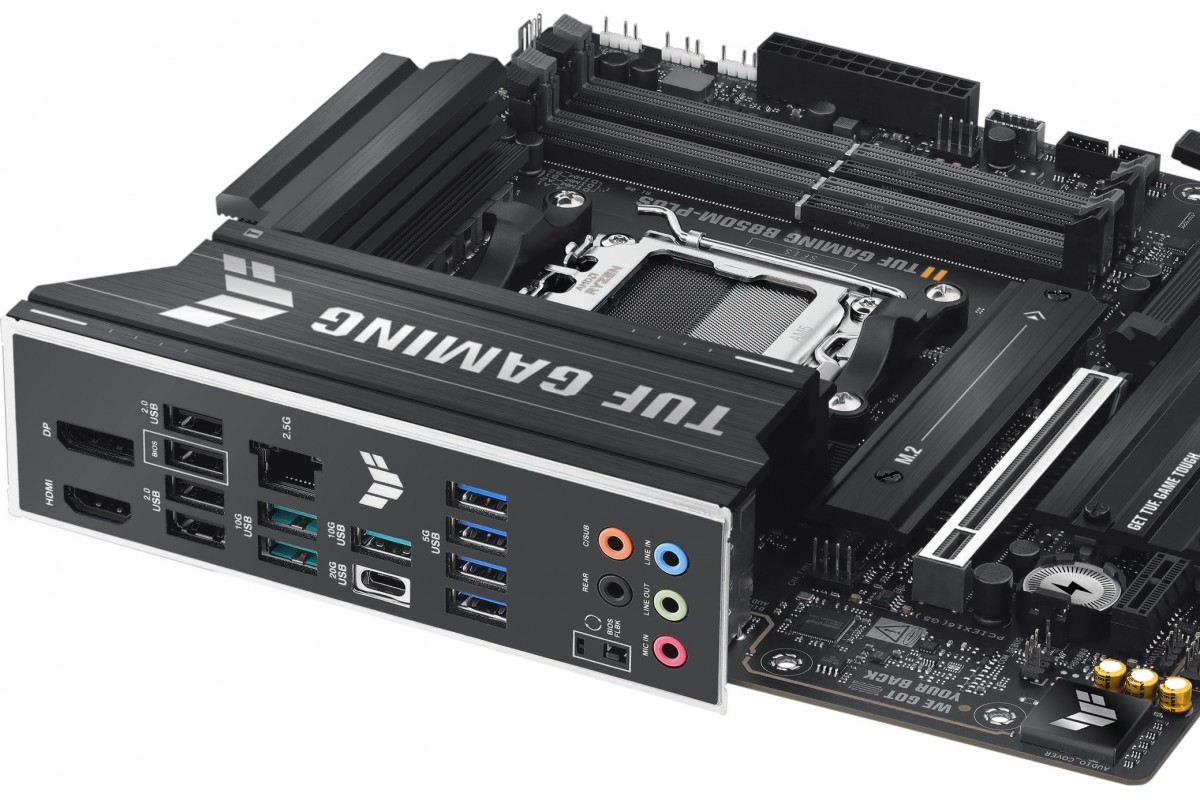

Motherboard Rear Panel
DisplayPort x1 HDMI x1 Przycisk BIOS Flashback x1 RJ-45 x1 USB 2.0 x4 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x4 USB 3.2 Gen 2 (3.1 Gen 2) x3 USB-C 3.2 Gen 2x2 x1 Złącze audio x5
