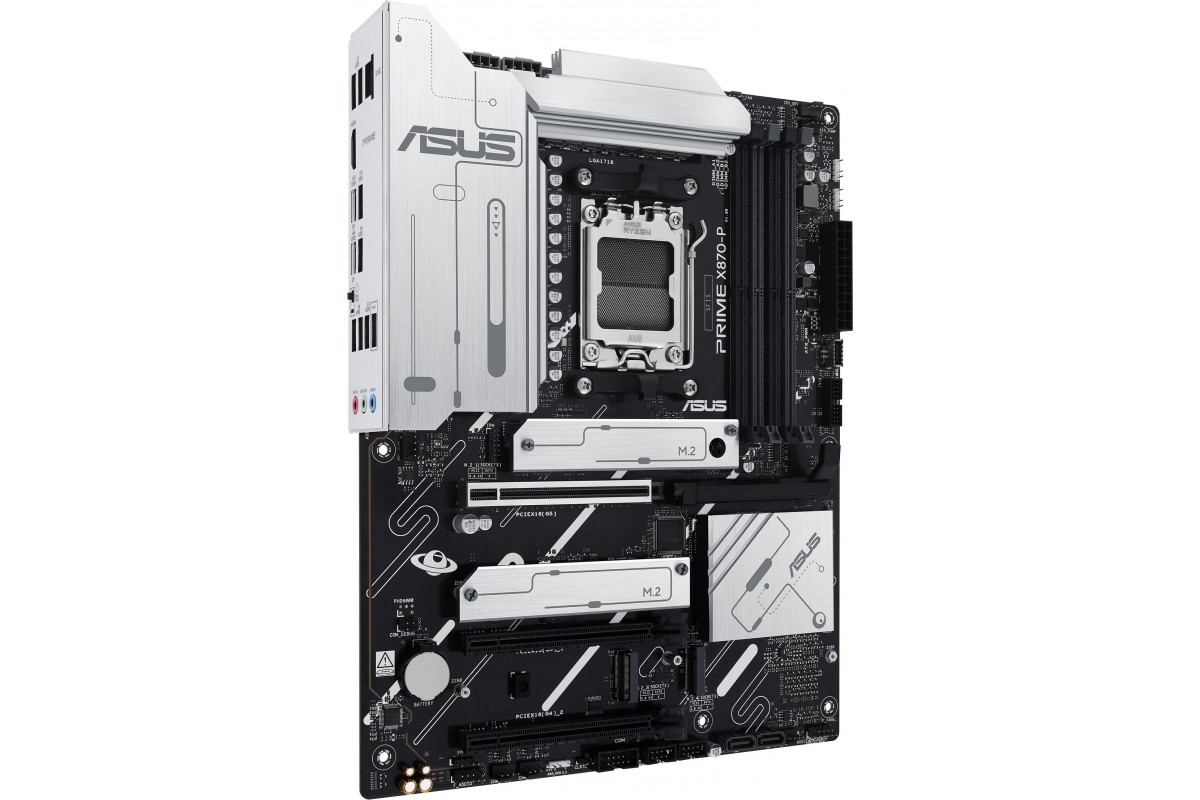

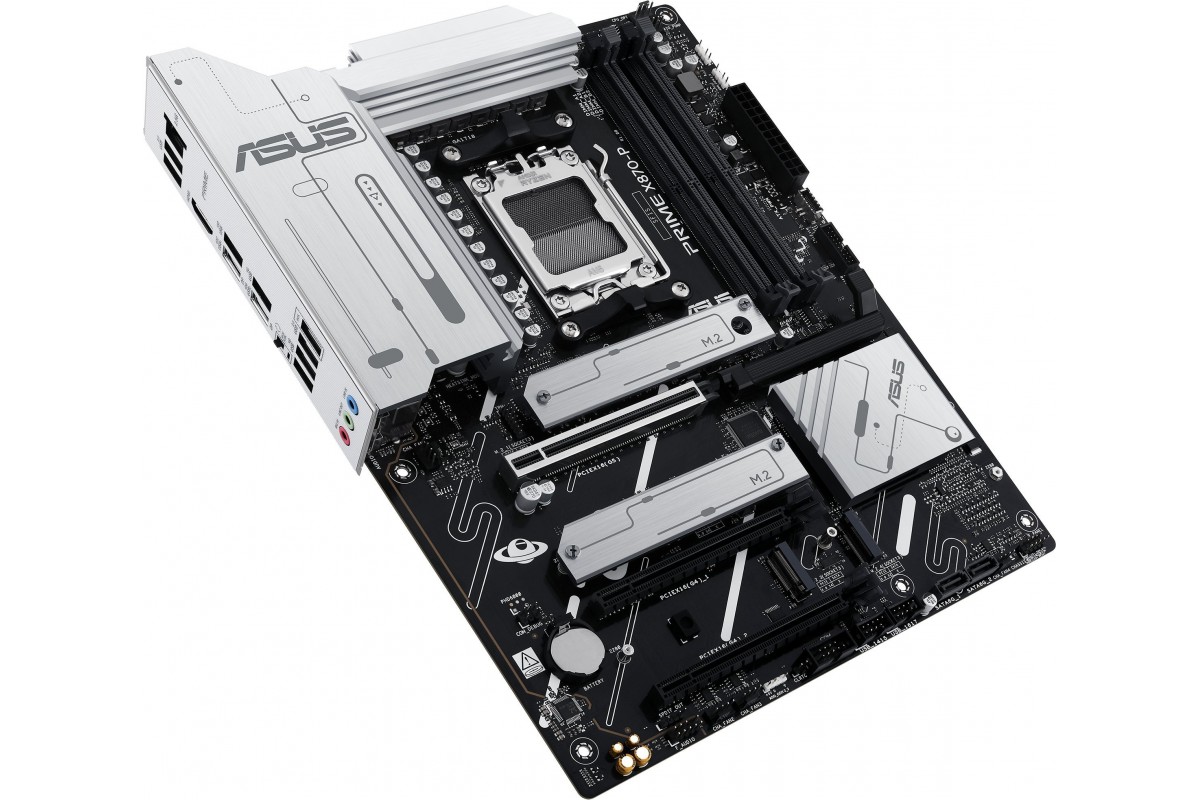

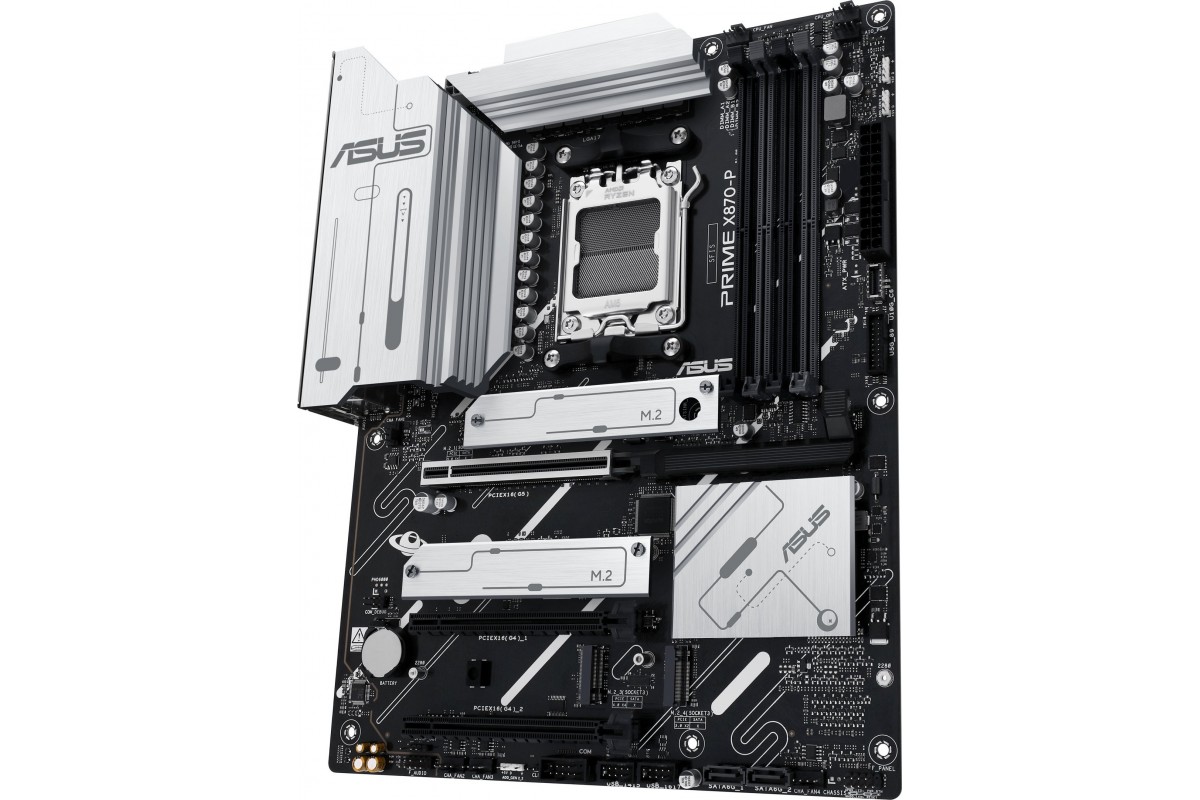

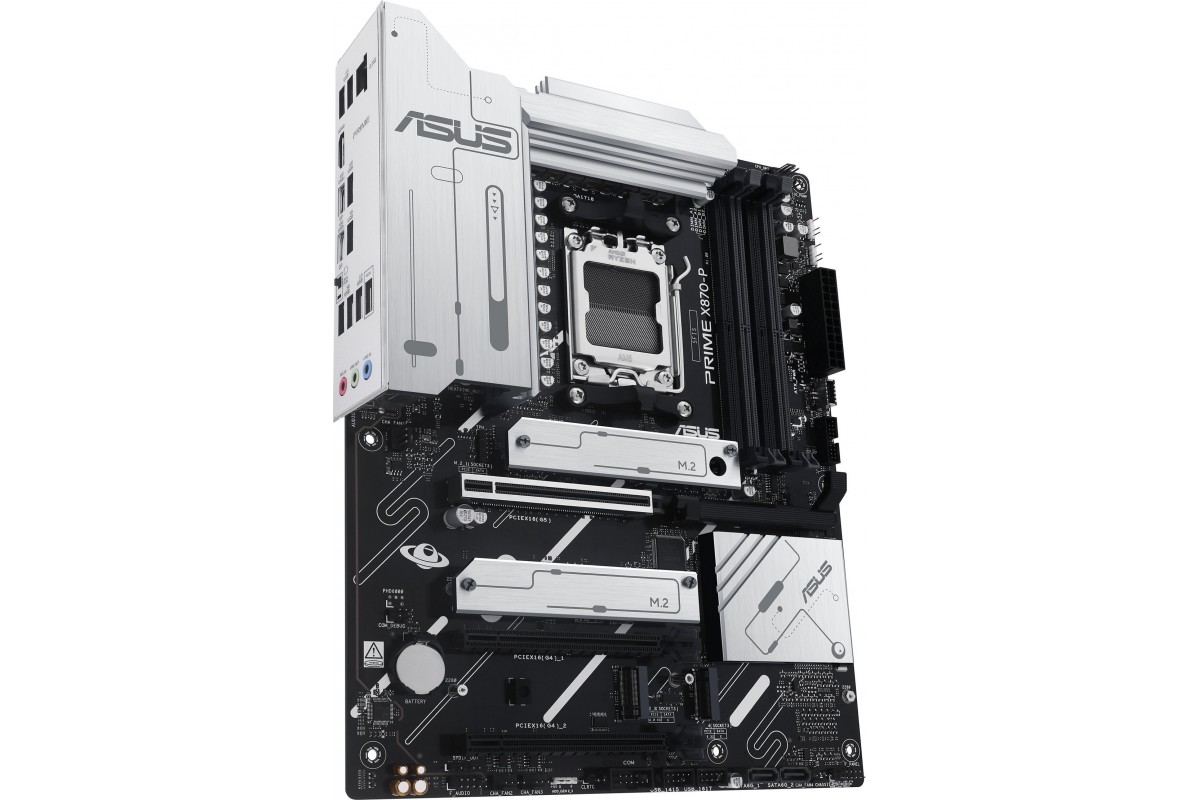

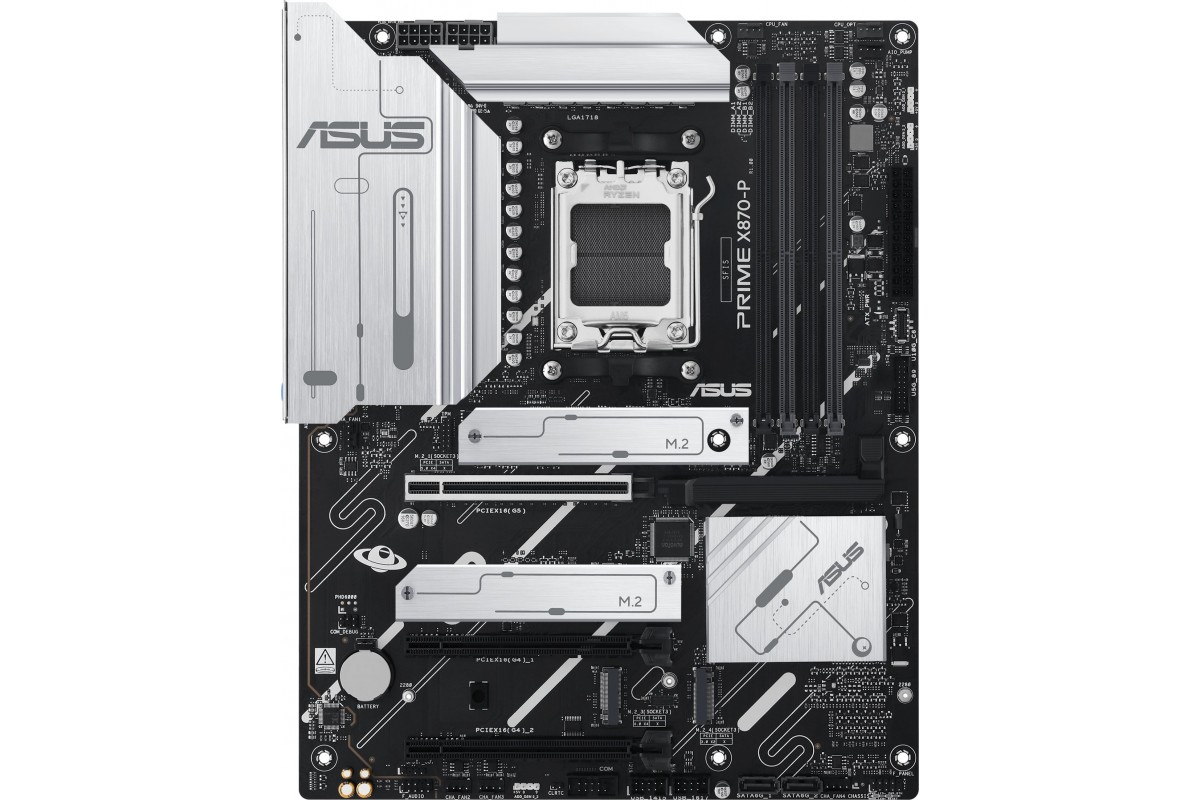

AMD X870 Asus PRIME X870-P

Motherboard Form Factor
ATX
Motherboard Width [mm]
305
Motherboard Depth [mm]
244
Motherboard Color
Silver/White/Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD X870
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
8000 MHz
Motherboard Maximum Memory Capacity
192 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 887
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Realtek 2.5GbE
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x16 (3 szt.)
Motherboard Drive Connectors
M.2 slot x4 SATA 3 x2
Motherboard Internal Connectors
USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze AURA Addressable Gen 2 x3 Złącze Clear CMOS x1 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze panelu systemu x1 Złącze S/PDIF x1 Złącze SYS FAN 4-pin x4 Złącze szeregowe (COM) x1 Złącze TPM x1

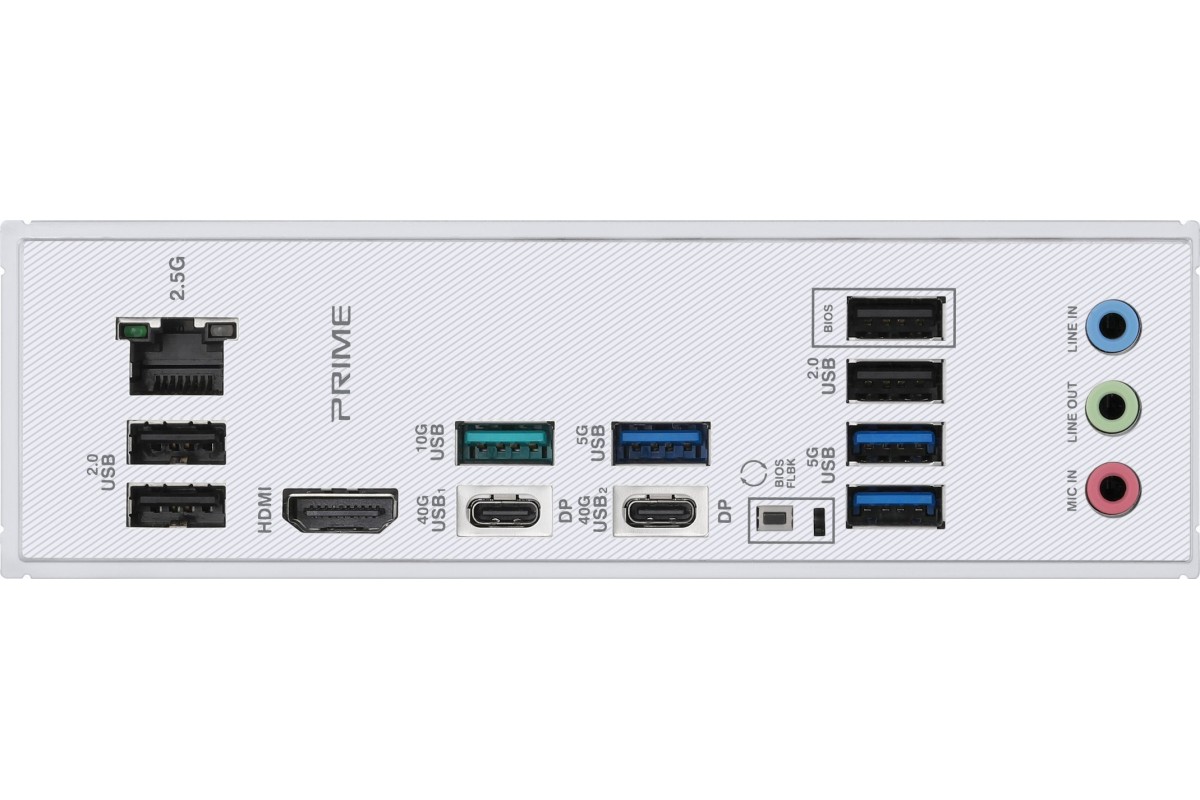

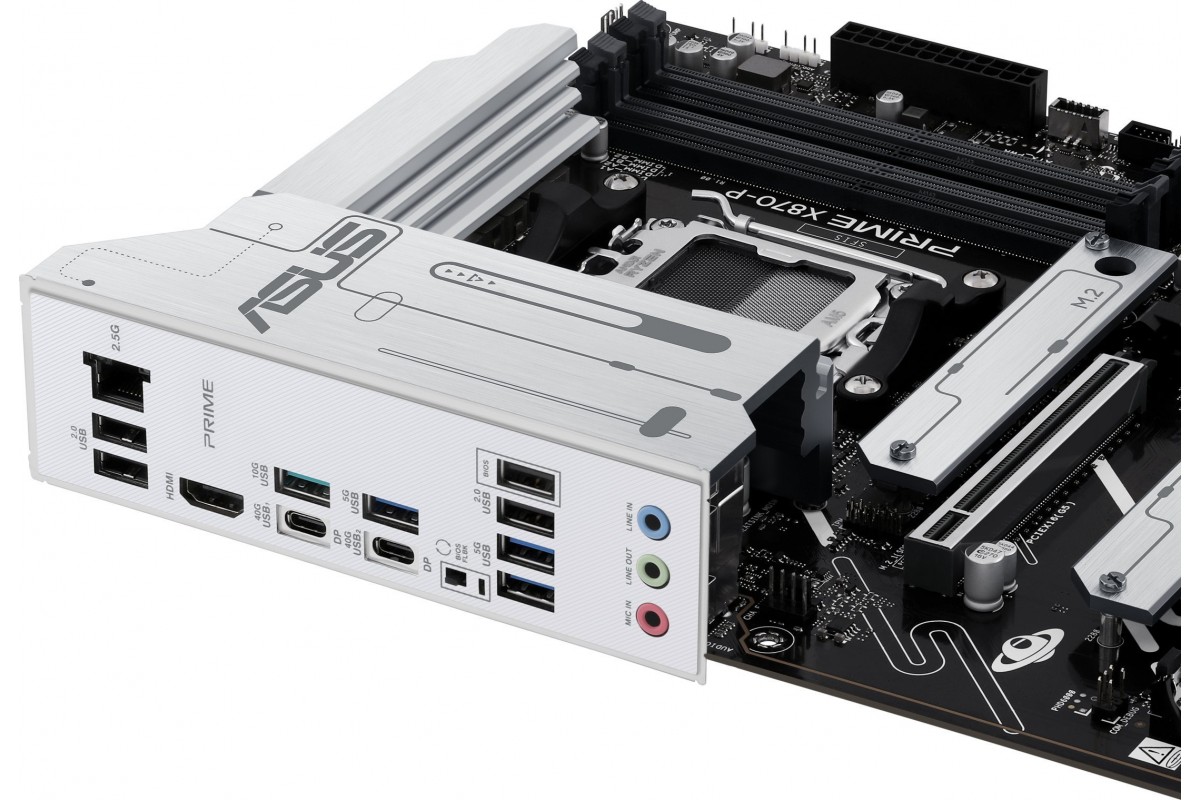

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 RJ-45 x1 USB 2.0 x4 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x3 USB 3.2 Gen 2 (3.1 Gen 2) x1 USB4 x2 Złącze audio x3

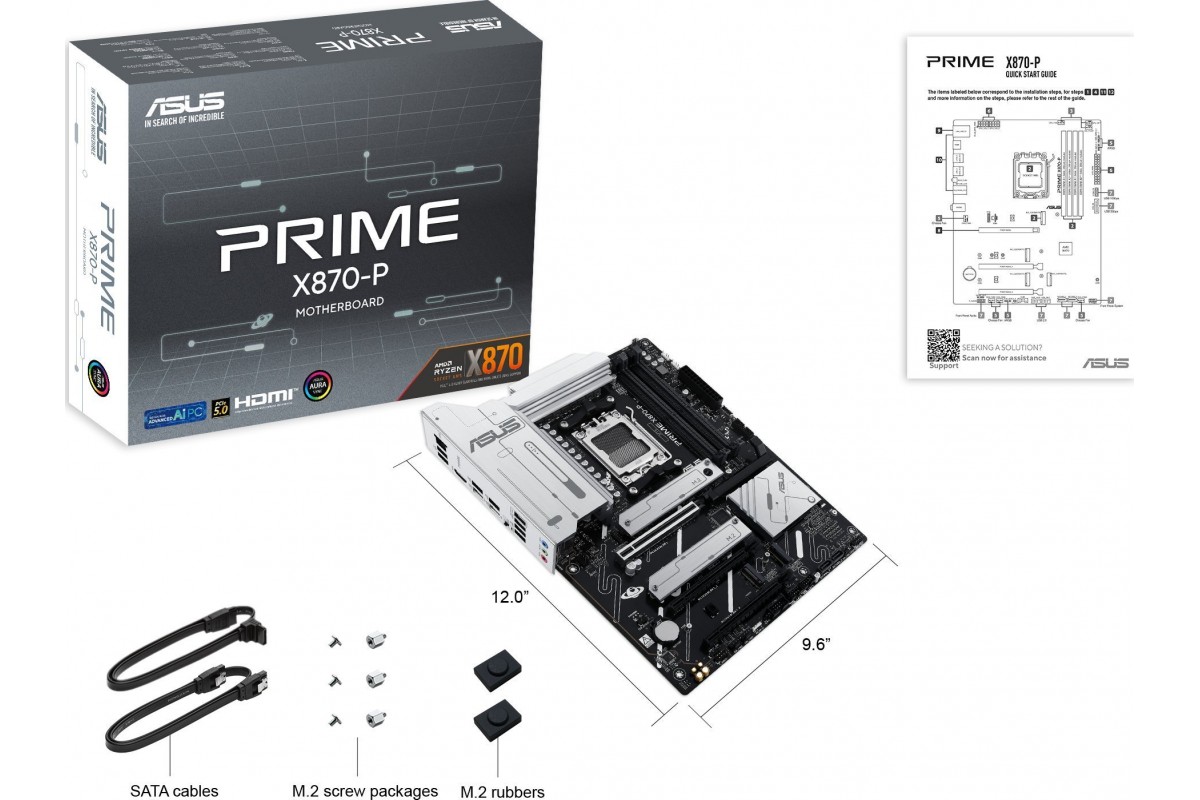

Motherboard Included Accessories
Przewód SATA III x2 Śruby do modułu M.2
