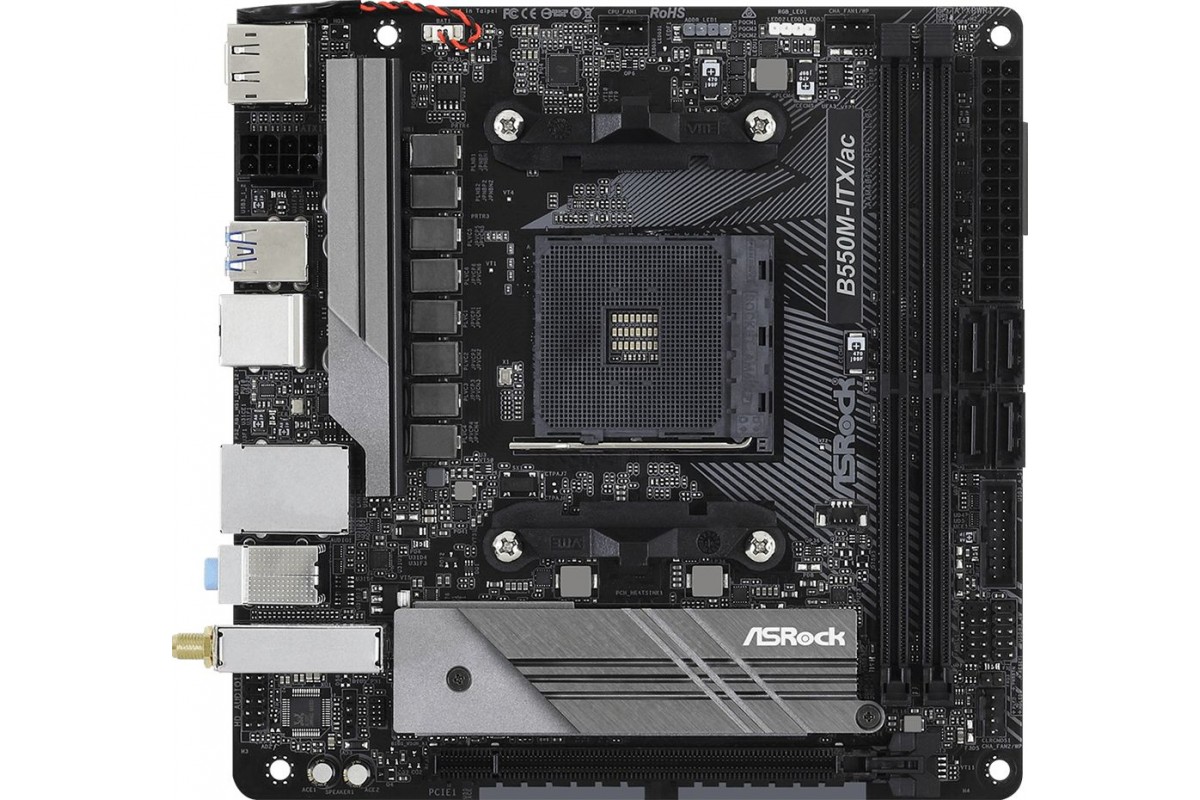

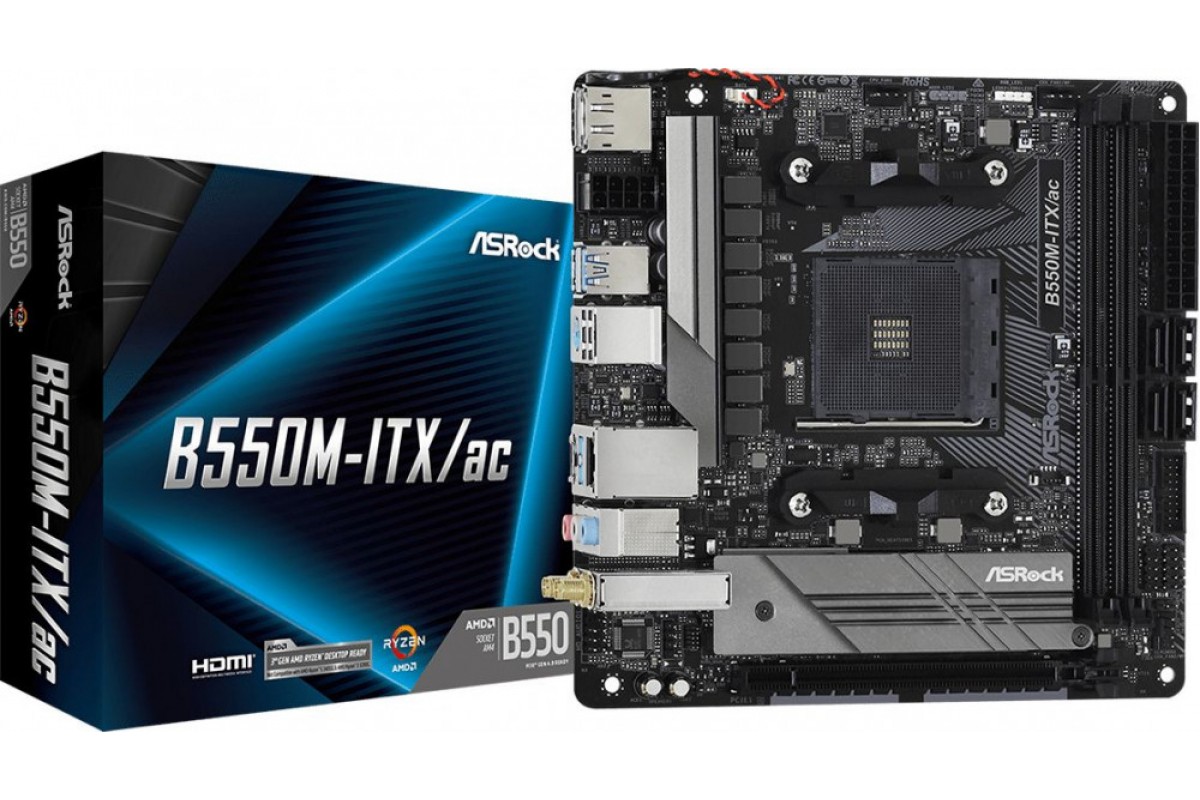

AMD B550 ASRock B550M-ITX/AC

Motherboard Form Factor
Mini ITX
Motherboard Width [mm]
170
Motherboard Depth [mm]
170
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD B550
Motherboard CPU Socket
Socket AM4
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR4
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
2133 MHz 2400 MHz 2667 MHz 2933 MHz 3200 MHz 3466 MHz 3600 MHz 3733 MHz 3800 MHz 3866 MHz 4000 MHz 4133 MHz 4200 MHz 4266 MHz 4333 MHz 4400 MHz 4466 MHz 4533 MHz 4600 MHz 4733 MHz
Motherboard Maximum Memory Capacity
64 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 887
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000
Motherboard Network Card Chipset
Realtek RTL8111H
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 5 (802.11 a/b/g/n/ac)
Motherboard Expansion Slots
M.2 Wi-Fi (1 szt.) PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x1 SATA 3 x4
Motherboard Internal Connectors
USB 2.0 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze FAN/W_PUMP x2 Złącze RGB LED x2

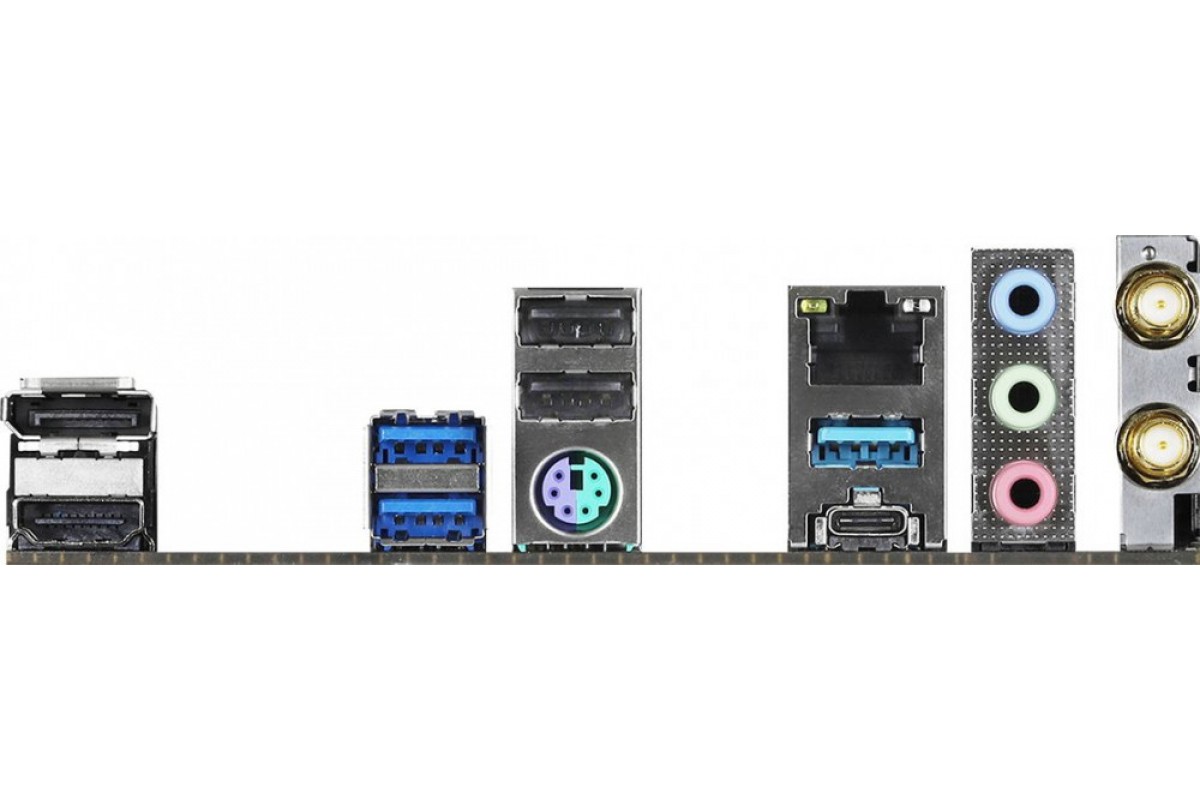

Motherboard Rear Panel
DisplayPort x1 HDMI x1 PS/2 (klawiatura/mysz) x1 RJ-45 x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x3 USB-C 3.2 Gen 1 (3.0/3.1 Gen 1) x1 Złącze anteny WiFi x2 Złącze audio x3
Motherboard Included Accessories
Antena WiFi x2 Osłona I/O Przewód SATA III x2
