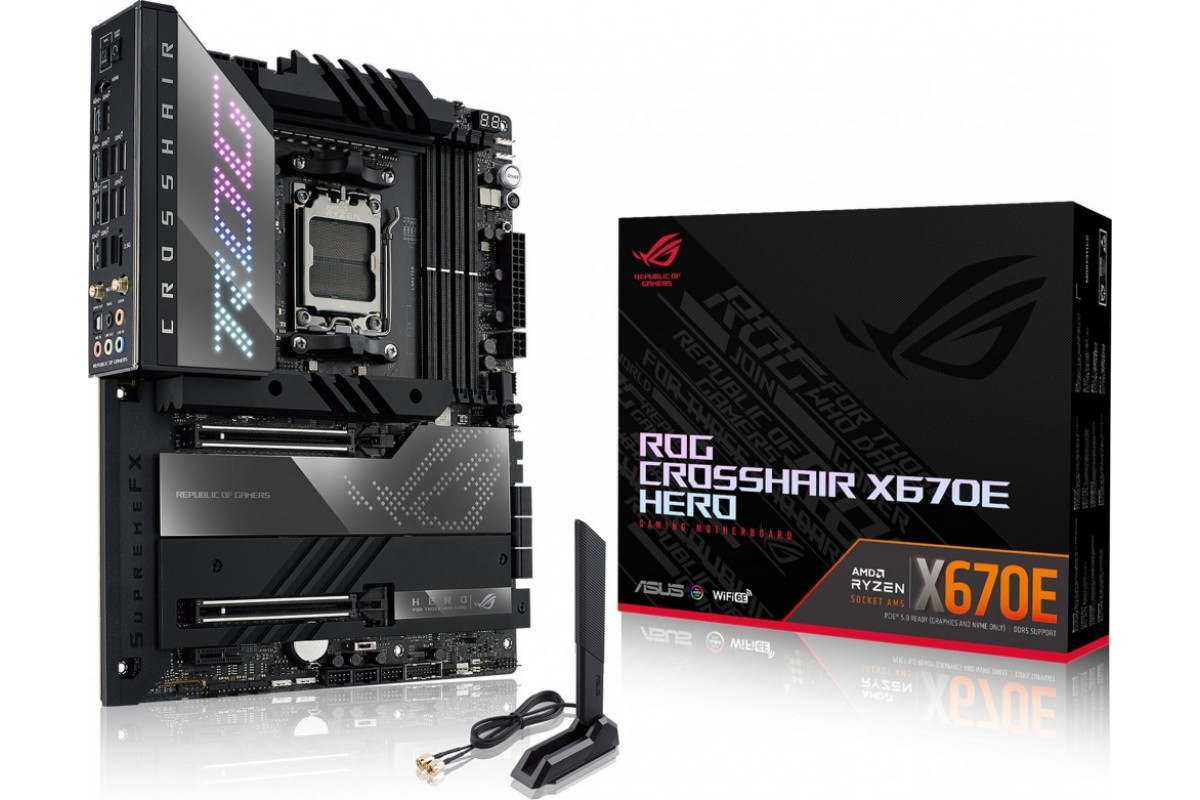

AMD X670E Asus ROG CROSSHAIR X670E HERO

Motherboard Form Factor
ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
305
Motherboard Usage
Gaming
Motherboard Chipset
AMD X670E
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5000 MHz 5200 MHz 5400 MHz 5600 MHz 5800 MHz 6000 MHz 6200 MHz 6400 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
SupremeFX ALC4082
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Intel 2.5GbE
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Motherboard Expansion Slots
PCI Express x1 (1 szt.) PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x5 SATA 3 x6
Motherboard Internal Connectors
Przycisk FlexKey x1 Przycisk ReTry x1 Przycisk włączenia zasilania x1 USB 2.0 x3 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB-C 3.2 Gen 2x2 x1 Złącze 2-pin Water In x1 Złącze 2-pin Water Out x1 Złącze 3-pin Flow x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 6-pin PCIe x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze AURA Addressable Gen 2 x3 Złącze Aura RGB x1 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze czujnika termicznego x1 Złącze panelu systemu x1 Złącze SYS FAN 4-pin x4 Złącze W_PUMP+ x1
Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 RJ-45 x1 S/PDIF Optyczne x1 USB 3.2 Gen 2 (3.1 Gen 2) x8 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 USB-C 3.2 Gen 2x2 x1 USB4 x2 Złącze anteny WiFi x2 Złącze audio x5
Motherboard Included Accessories
Adapter M.2 Antena WiFi Brelok do kluczy Naklejki Pendrive Przedłużacz RGB x2 Przewód SATA III x4 Śruby do modułu M.2 Termopady Uchwyt do karty graficznej
