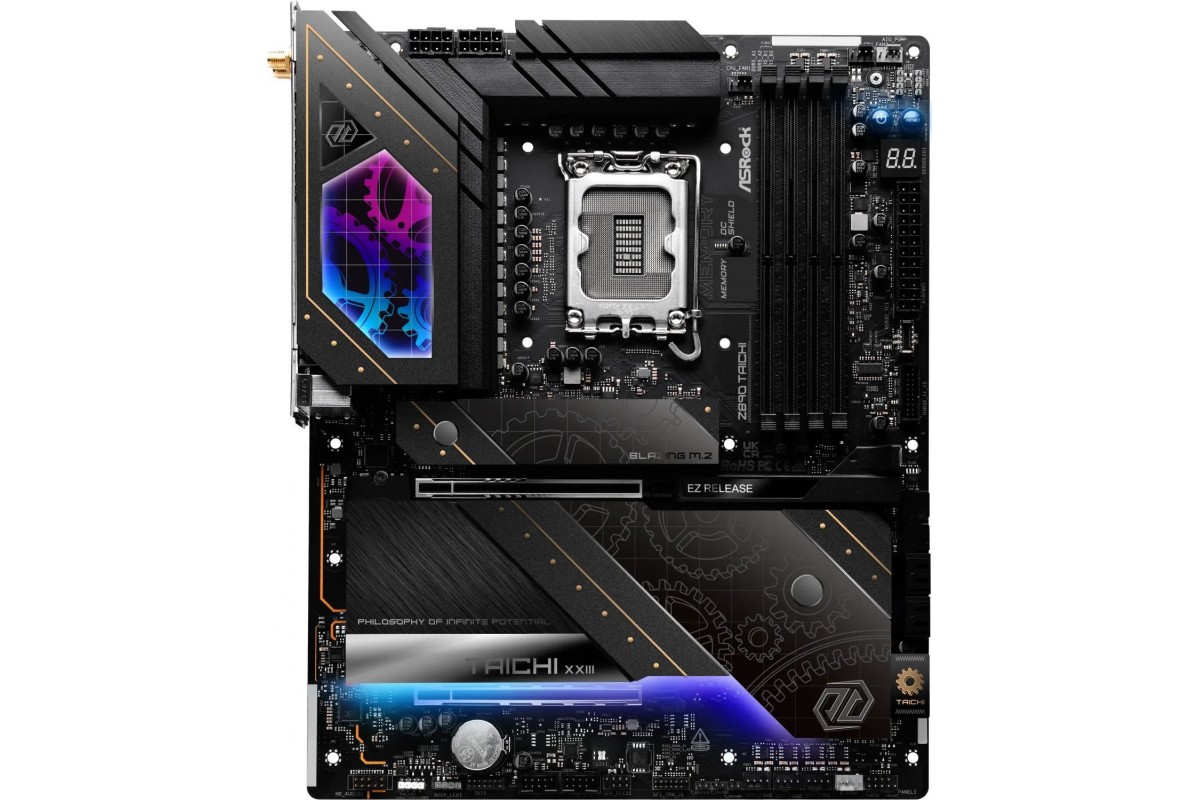

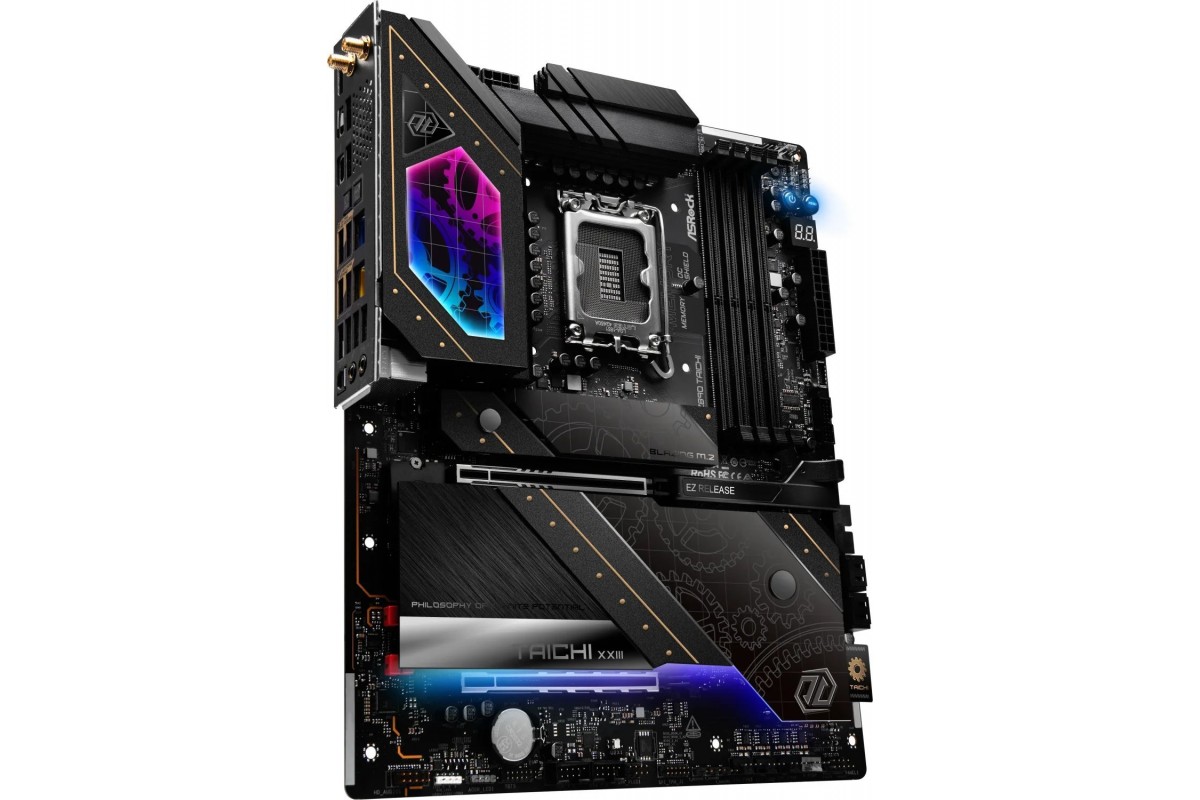

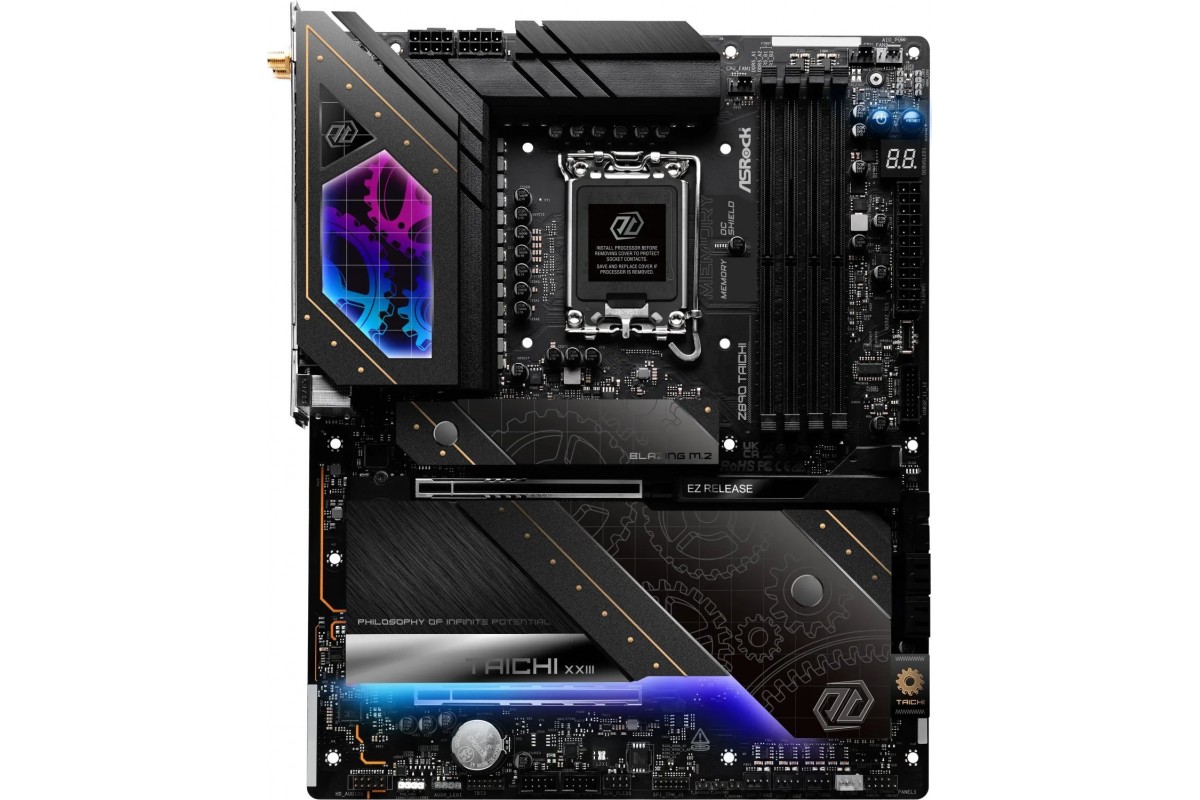

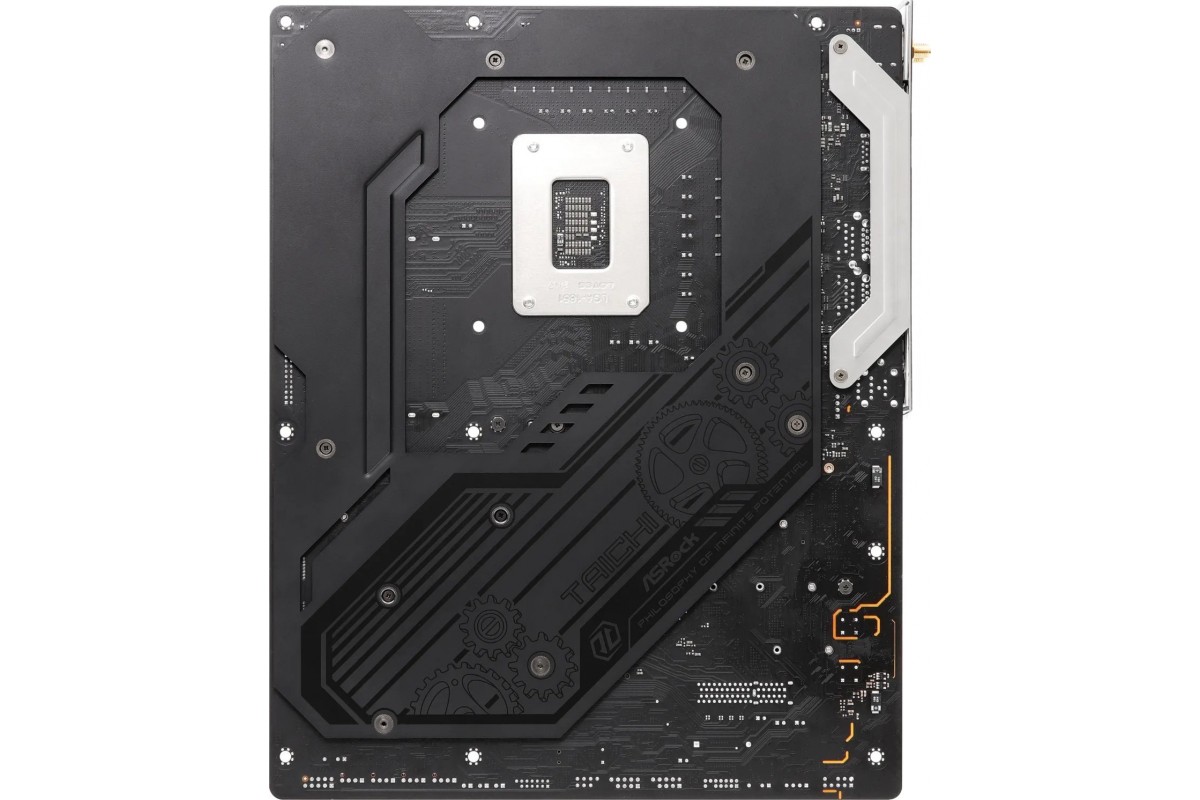

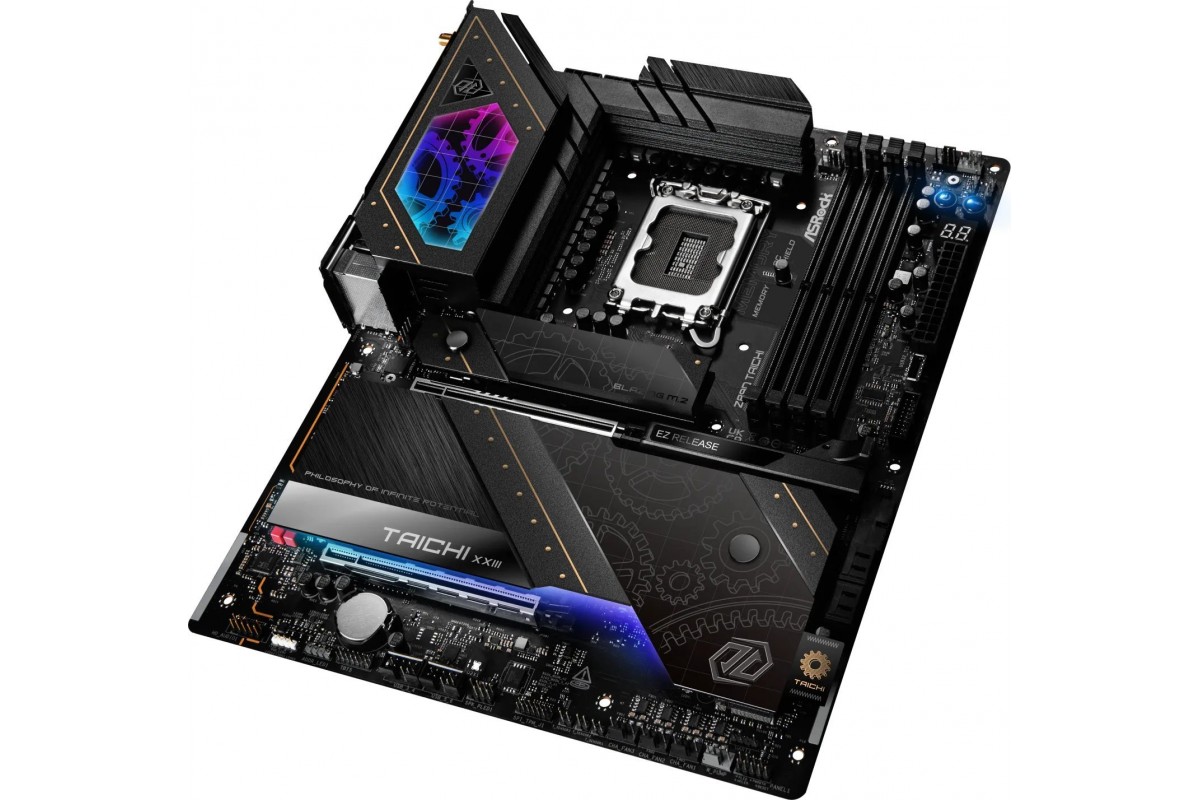

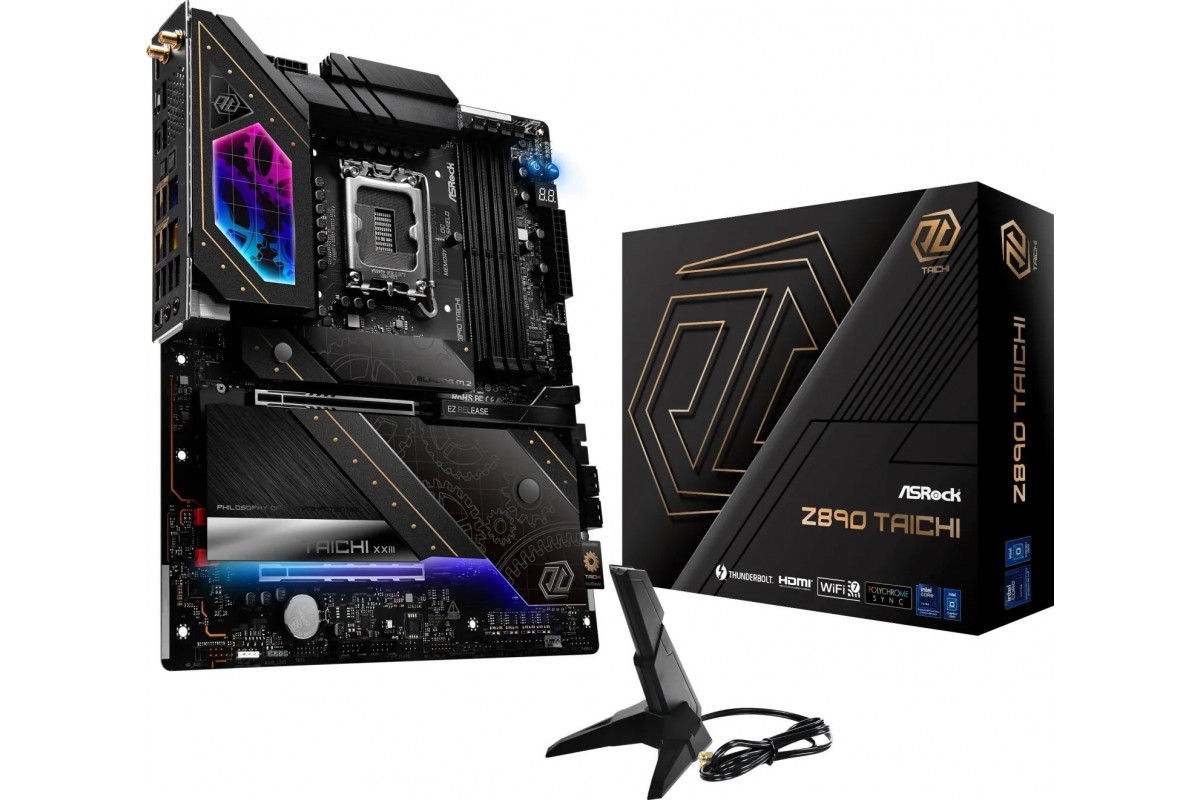

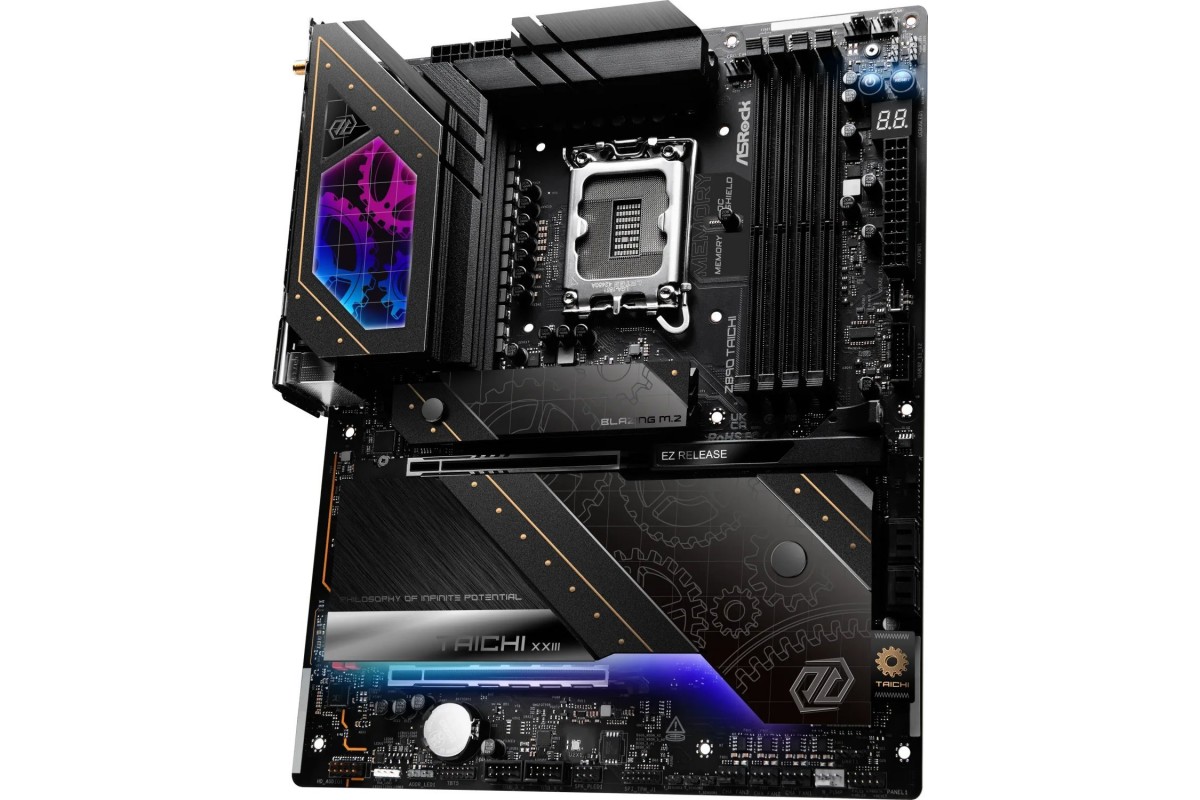

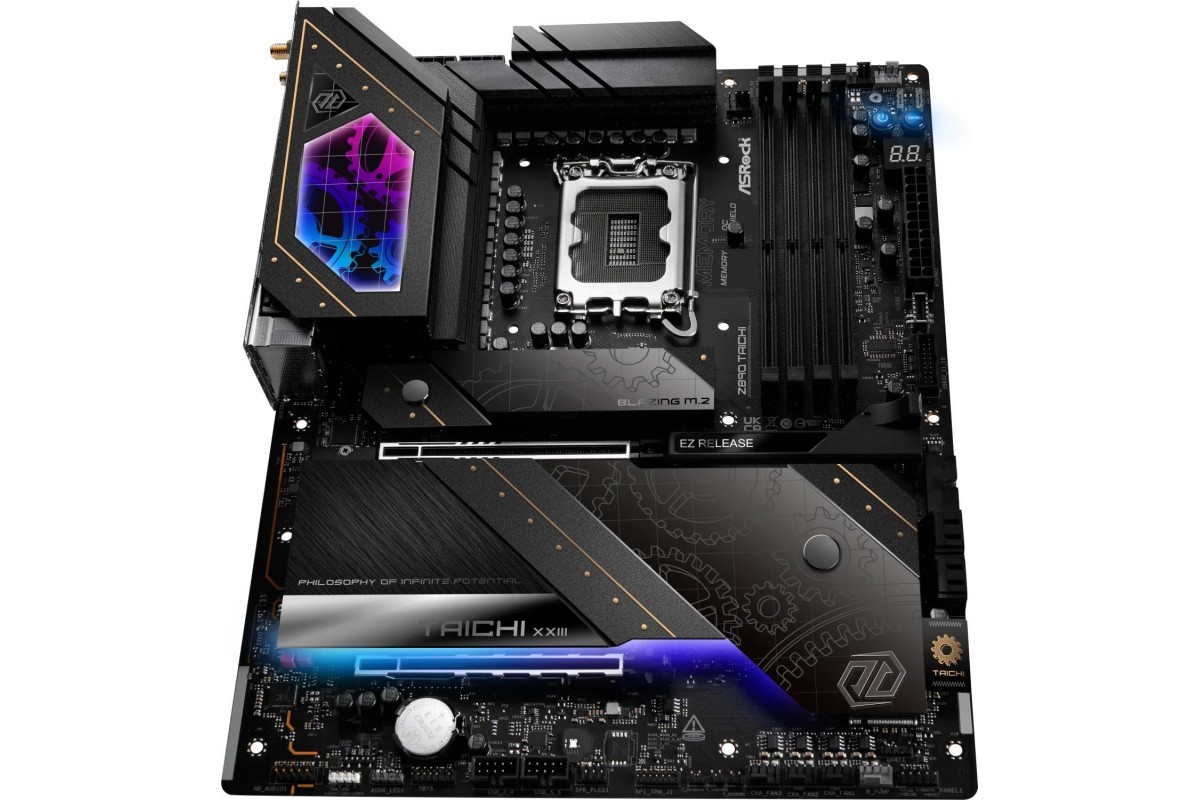

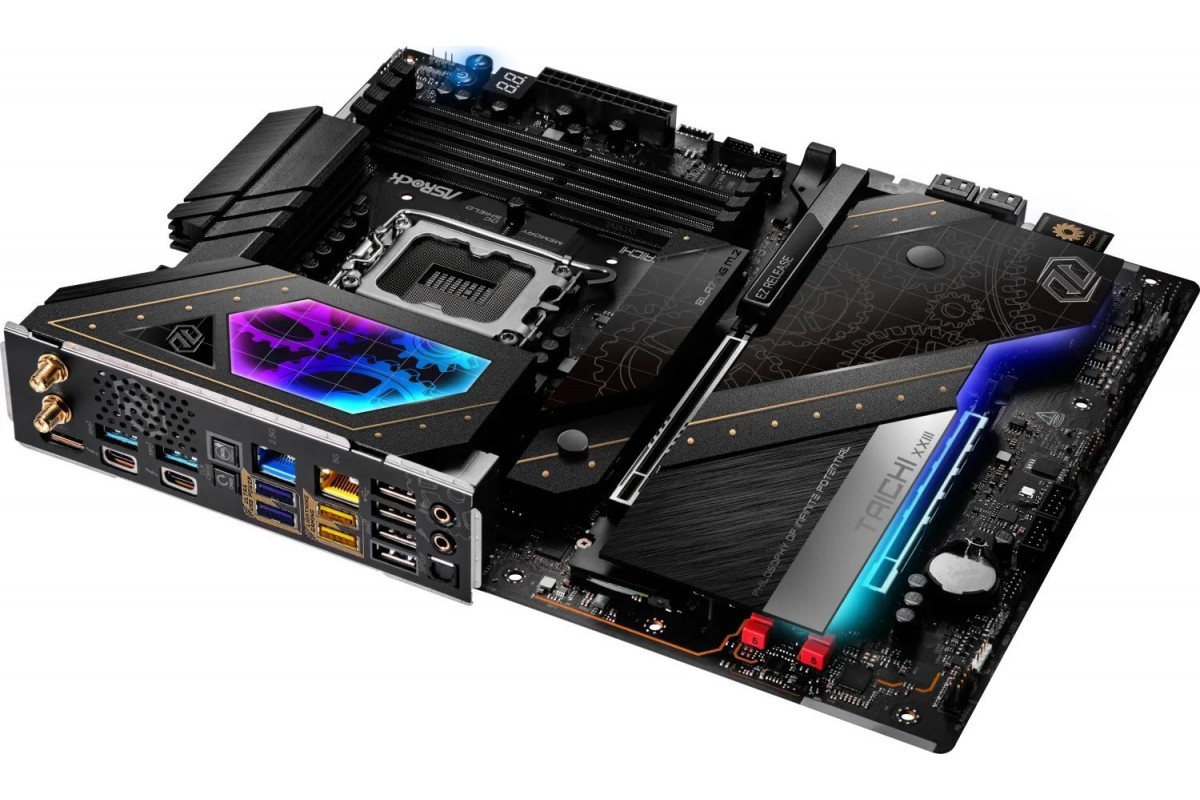

Intel Z890 ASRock Z890 TAICHI

Motherboard Form Factor
ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel Z890
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
9600 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 4082
Motherboard Audio Channels
5.1
Motherboard Integrated Network Card
10/100/1000/2500 100/1000/2500/5000
Motherboard Network Card Chipset
Realtek 8126 Realtek RTL8125BG
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
M.2 Wi-Fi (1 szt.) PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x6 SATA 3 x6
Motherboard Internal Connectors
Dioda Dr. Debug x1 Przycisk Reset x1 Przycisk włączenia zasilania x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB-C 3.2 Gen 2x2 x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x2 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x2 Złącze czujnika termicznego x3 Złącze głośnika x1 Złącze RGB LED x1 Złącze SYS FAN 4-pin x4 Złącze TPM x1

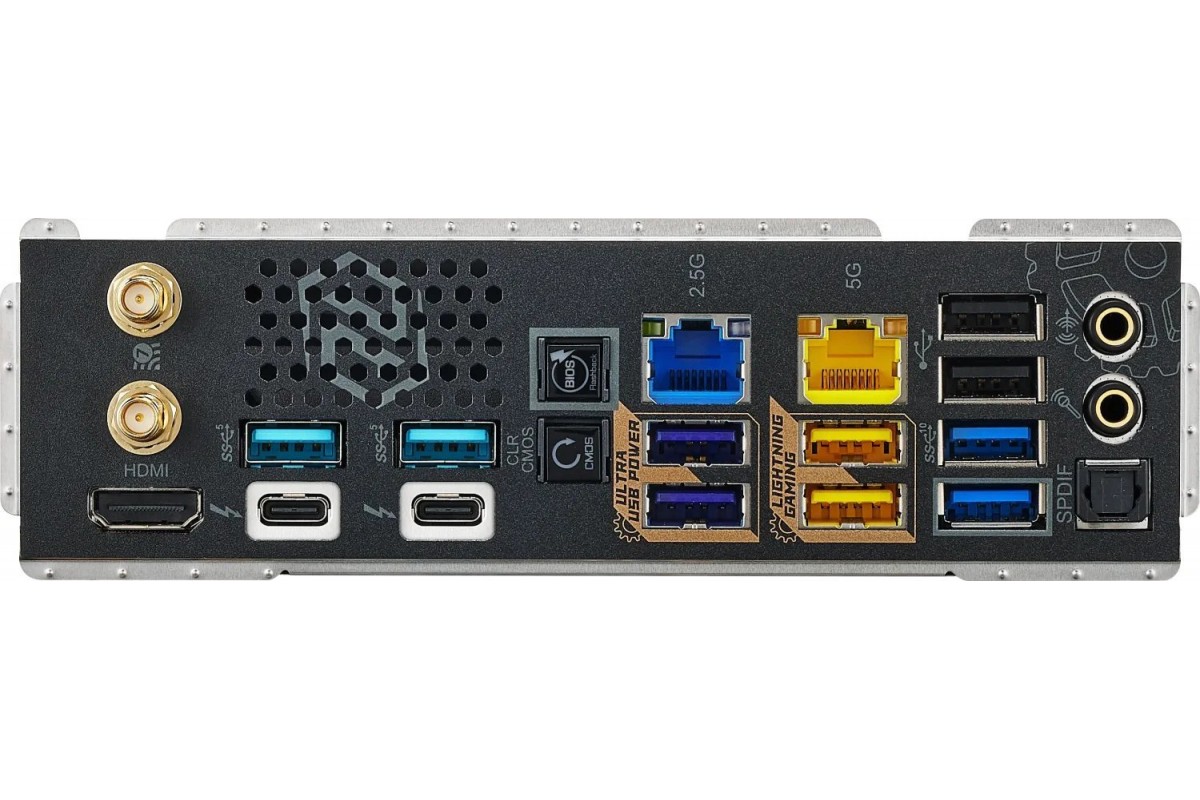

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 RJ-45 x2 S/PDIF Optyczne x1 Thunderbolt 4 x2 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x4 USB 3.2 Gen 2 (3.1 Gen 2) x4 Złącze anteny WiFi x2 Złącze audio x2

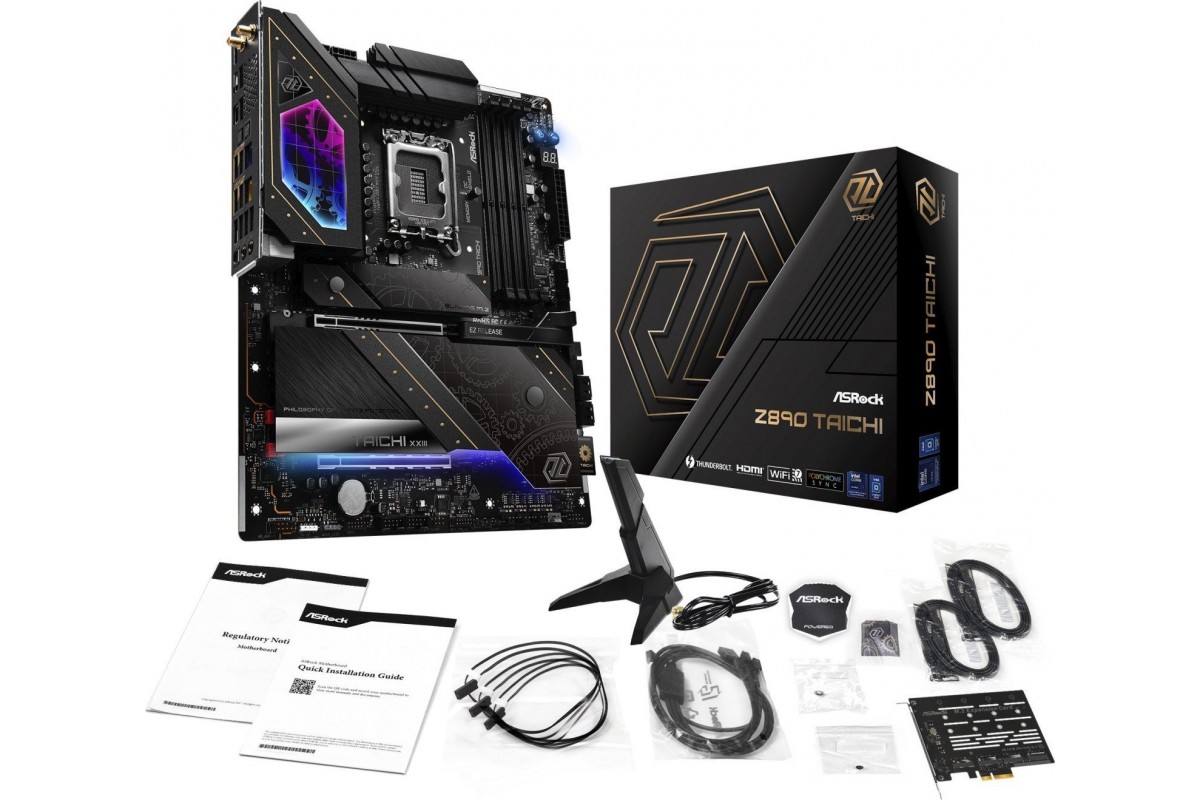

Motherboard Included Accessories
Adapter M.2 Antena WiFi Przewód czujnika termicznego x3 Przewód SATA III x4 Splitter ARGB LED Śruby do modułu M.2
