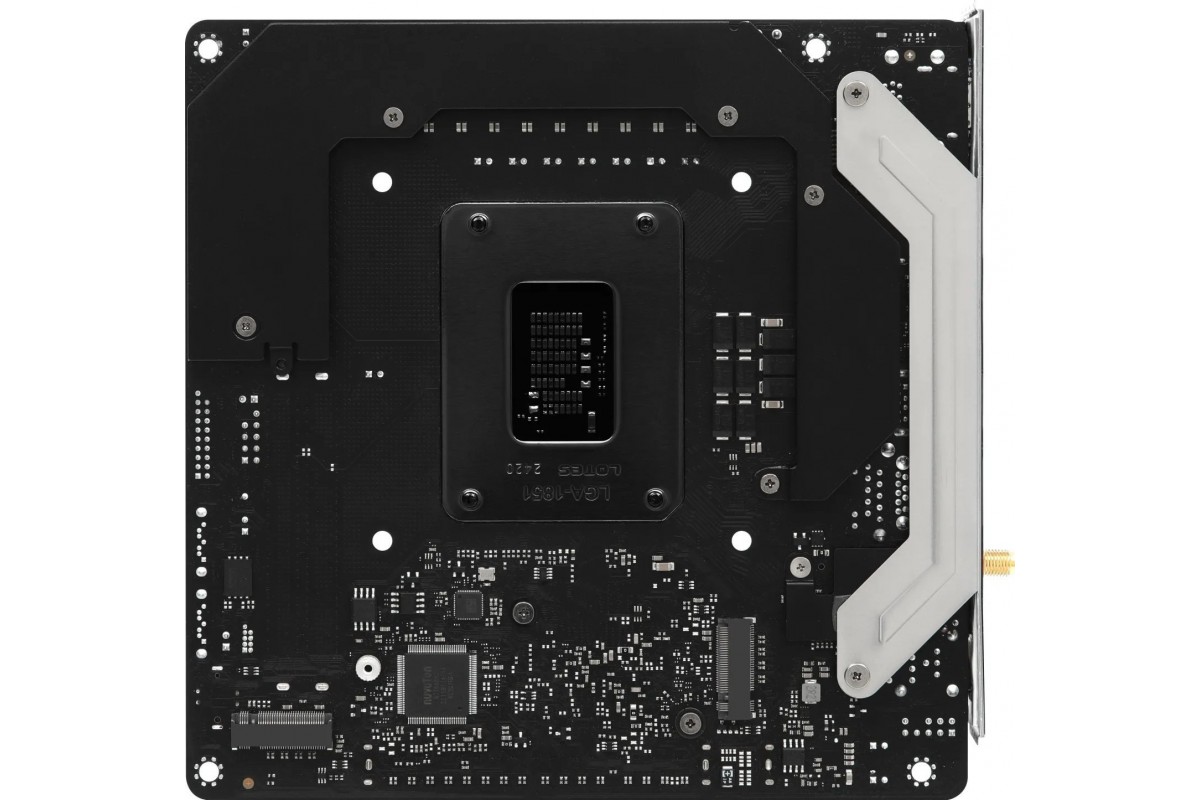

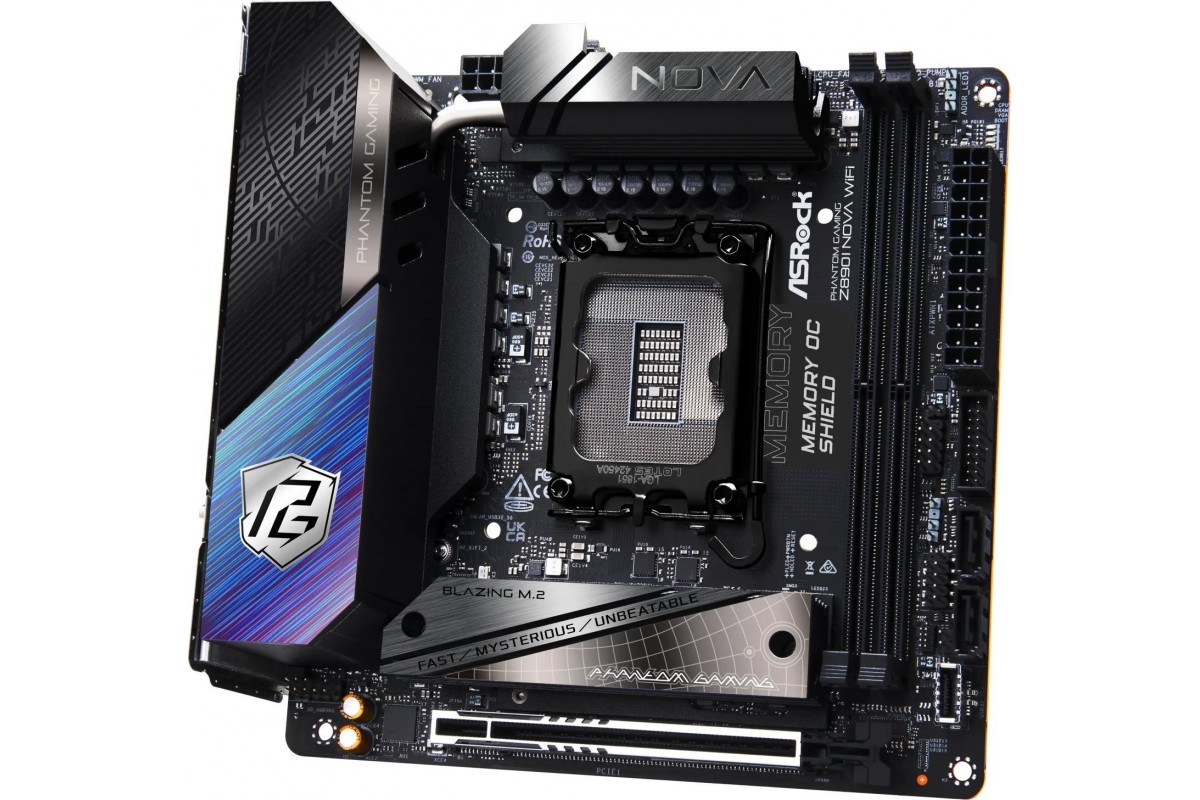

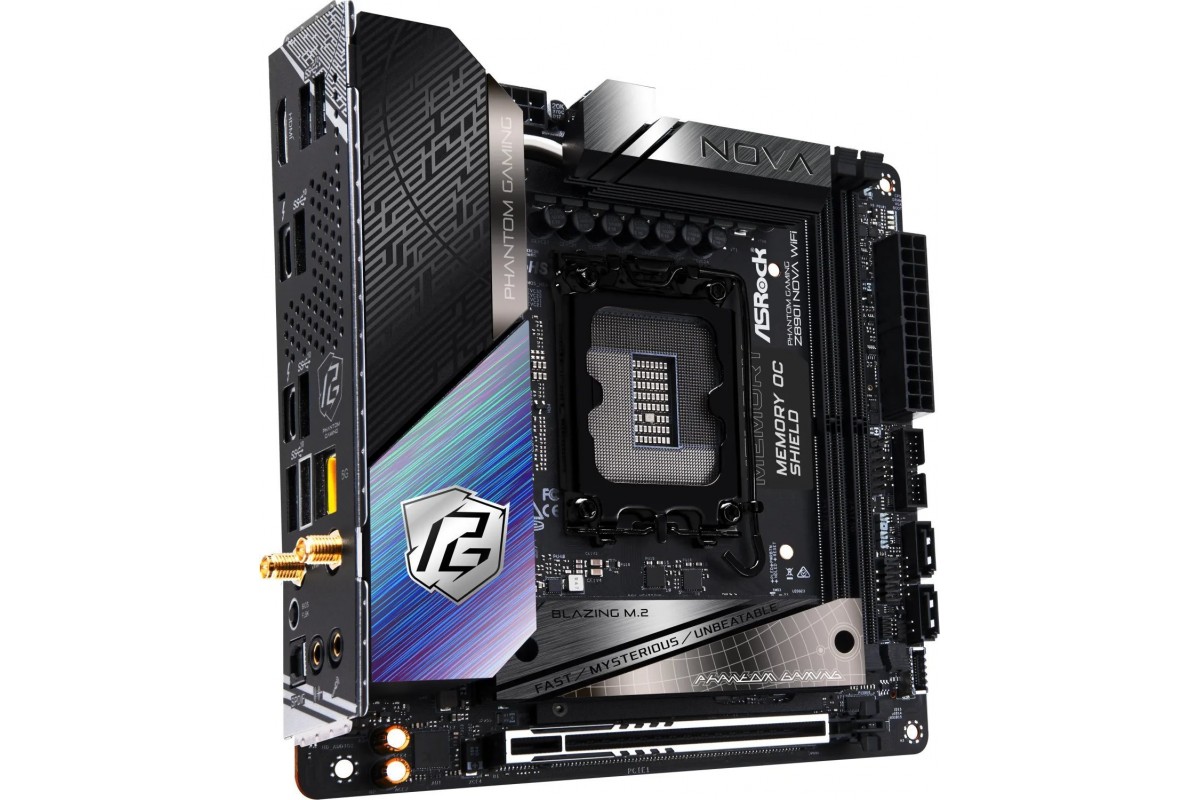

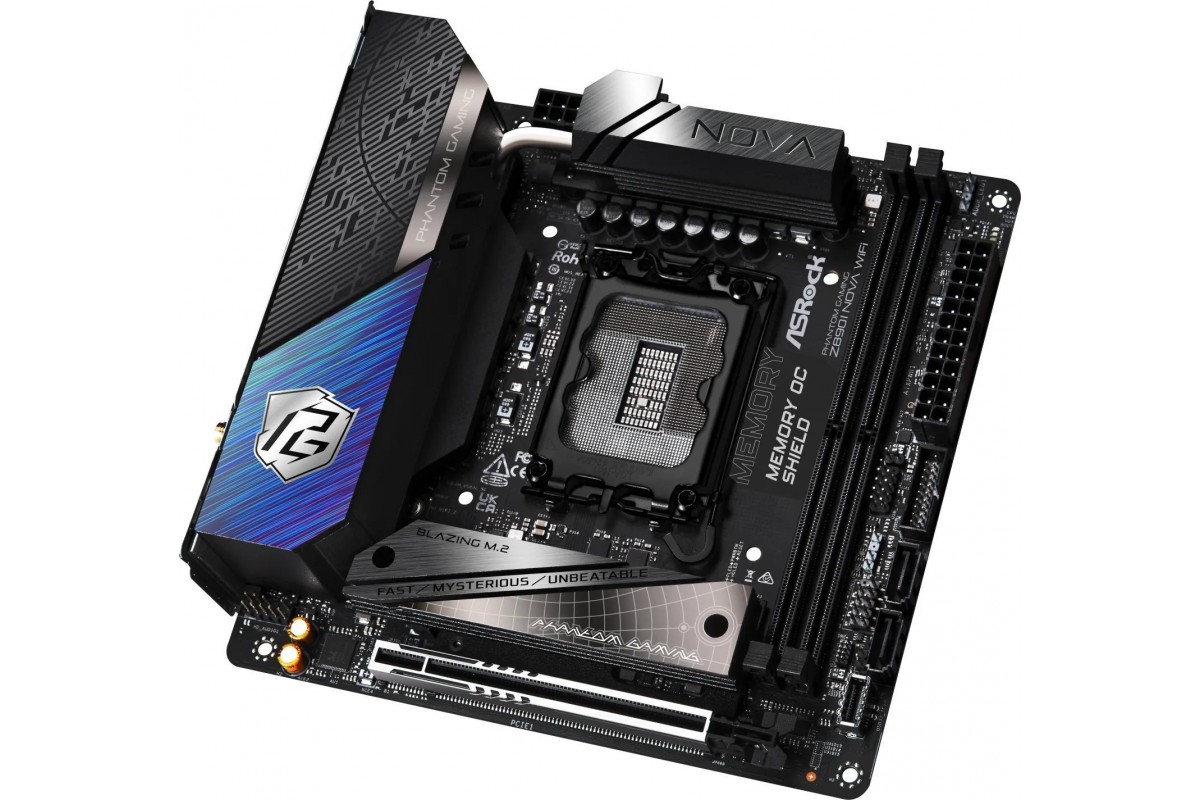

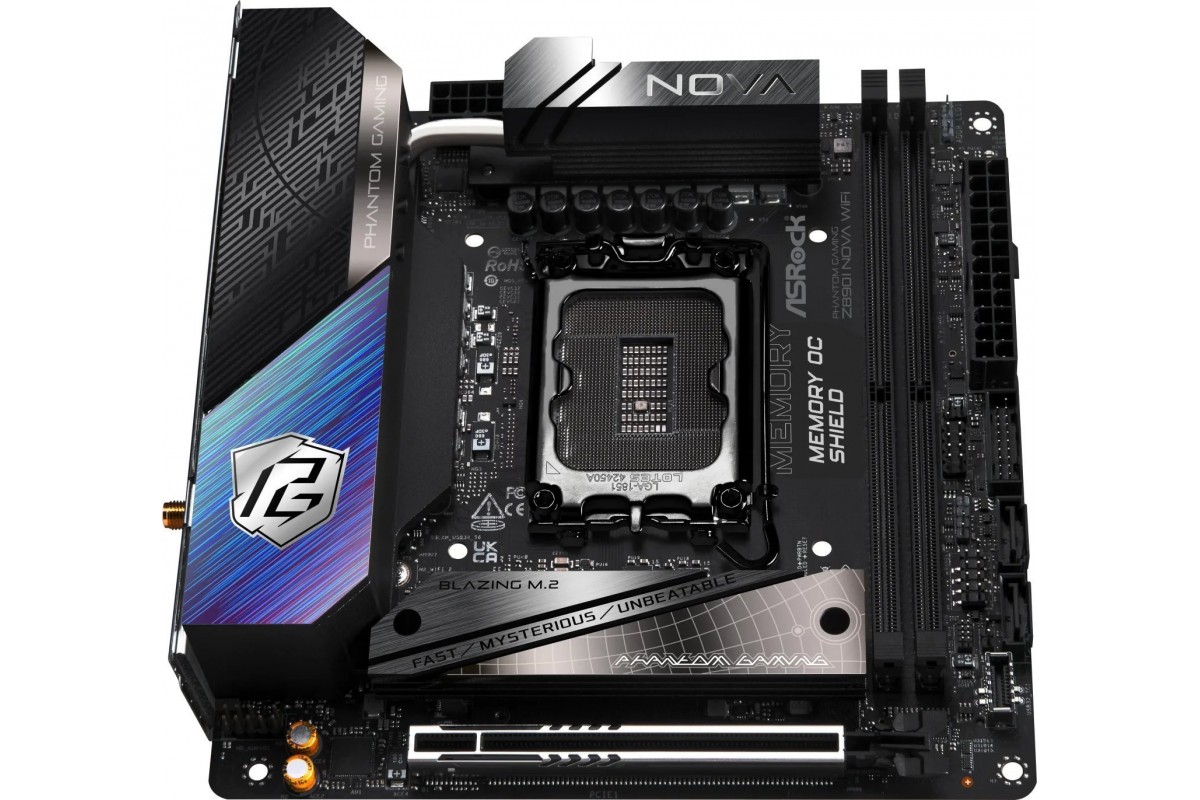

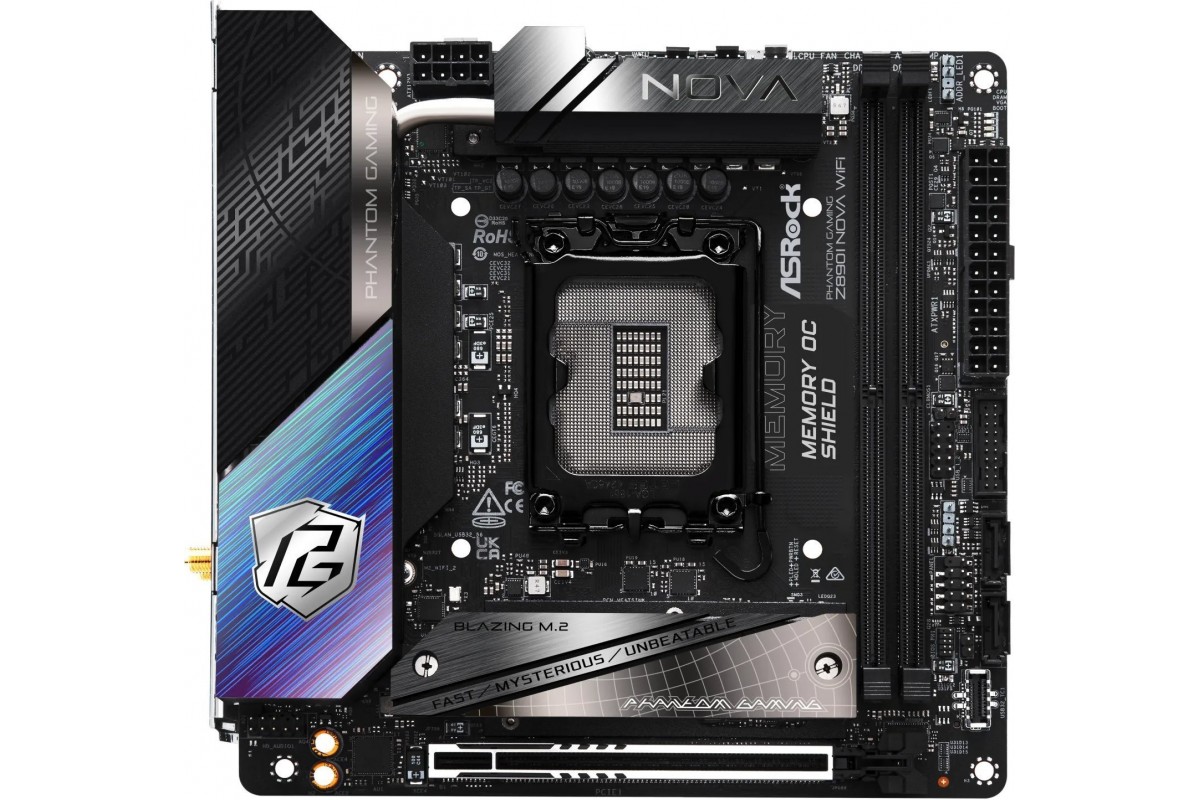

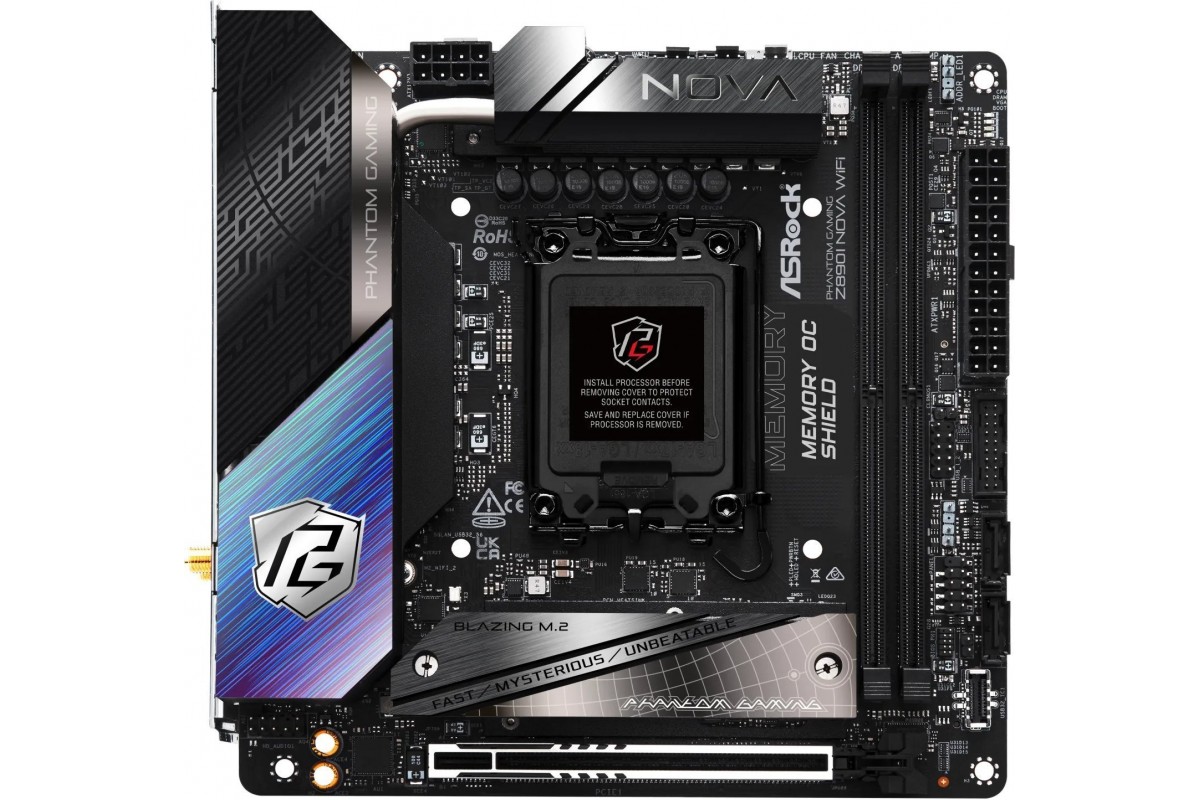

Intel Z890 ASRock Z890I NOVA WIFI

Motherboard Form Factor
Mini ITX
Motherboard Width [mm]
170
Motherboard Depth [mm]
170
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
Intel Z890
Motherboard CPU Socket
Socket 1851
Motherboard Supported Processors
Intel Core Ultra 5 Intel Core Ultra 7 Intel Core Ultra 9
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
2
Motherboard Memory Frequency
9866 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 4082
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
100/1000/2500/5000
Motherboard Network Card Chipset
Realtek 8126
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (1 szt.)
Motherboard Drive Connectors
M.2 slot x3 SATA 3 x3
Motherboard Internal Connectors
USB 2.0 x1 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze addressable RGB LED strip 5V x2 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze czujnika termicznego x1 Złącze SYS FAN 4-pin x1

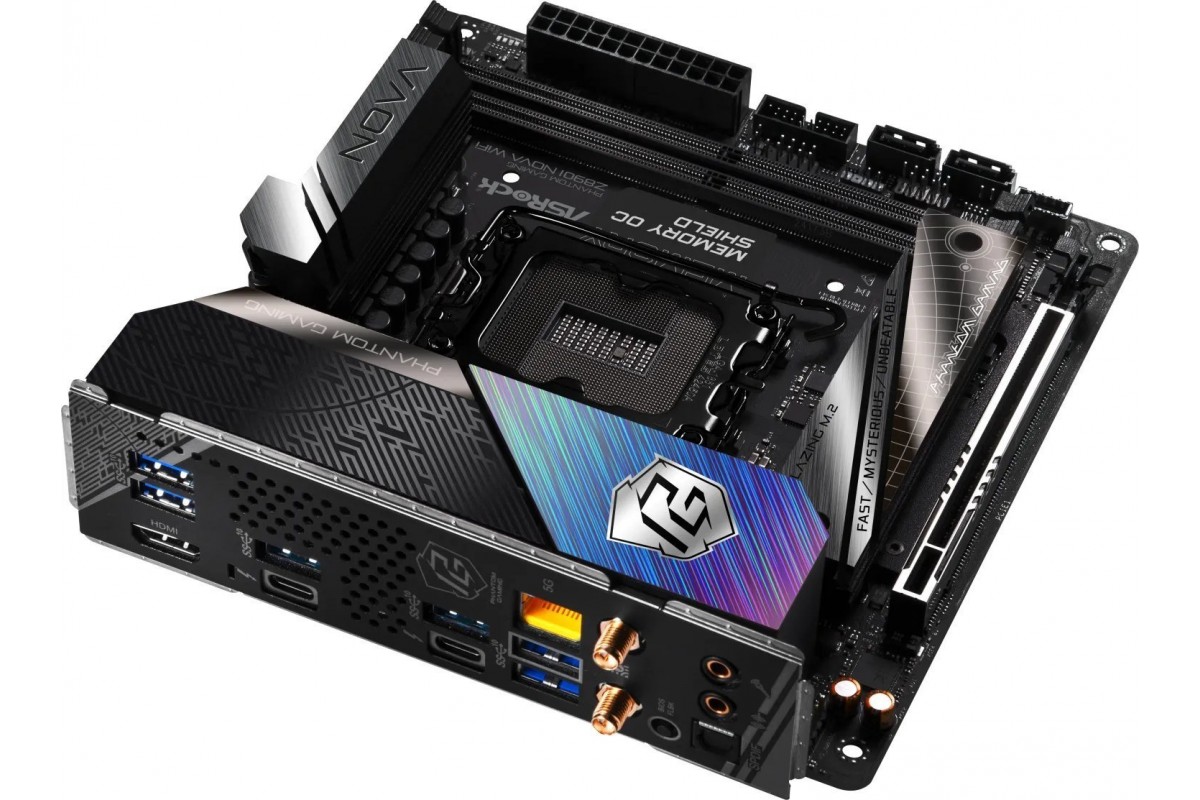

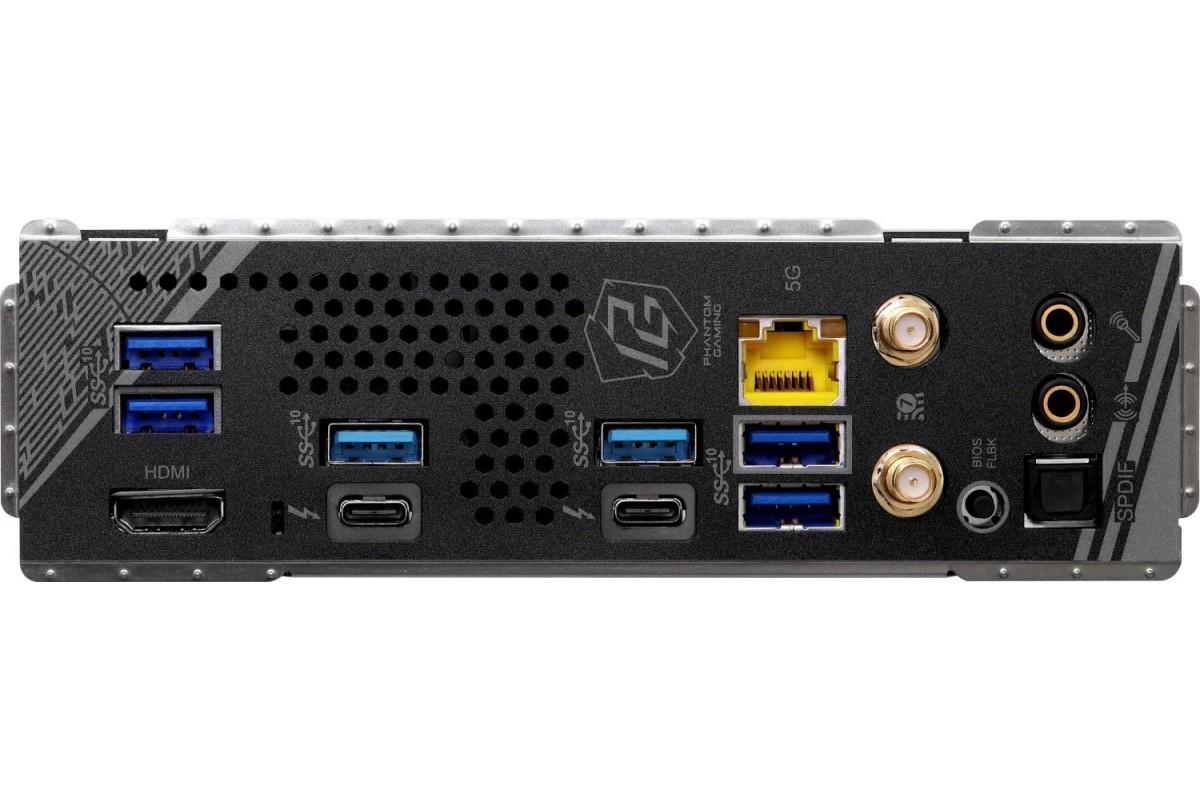

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 RJ-45 x1 S/PDIF Optyczne x1 Thunderbolt 4 x2 USB 3.2 Gen 2 (3.1 Gen 2) x6 Złącze anteny WiFi x2 Złącze audio x2

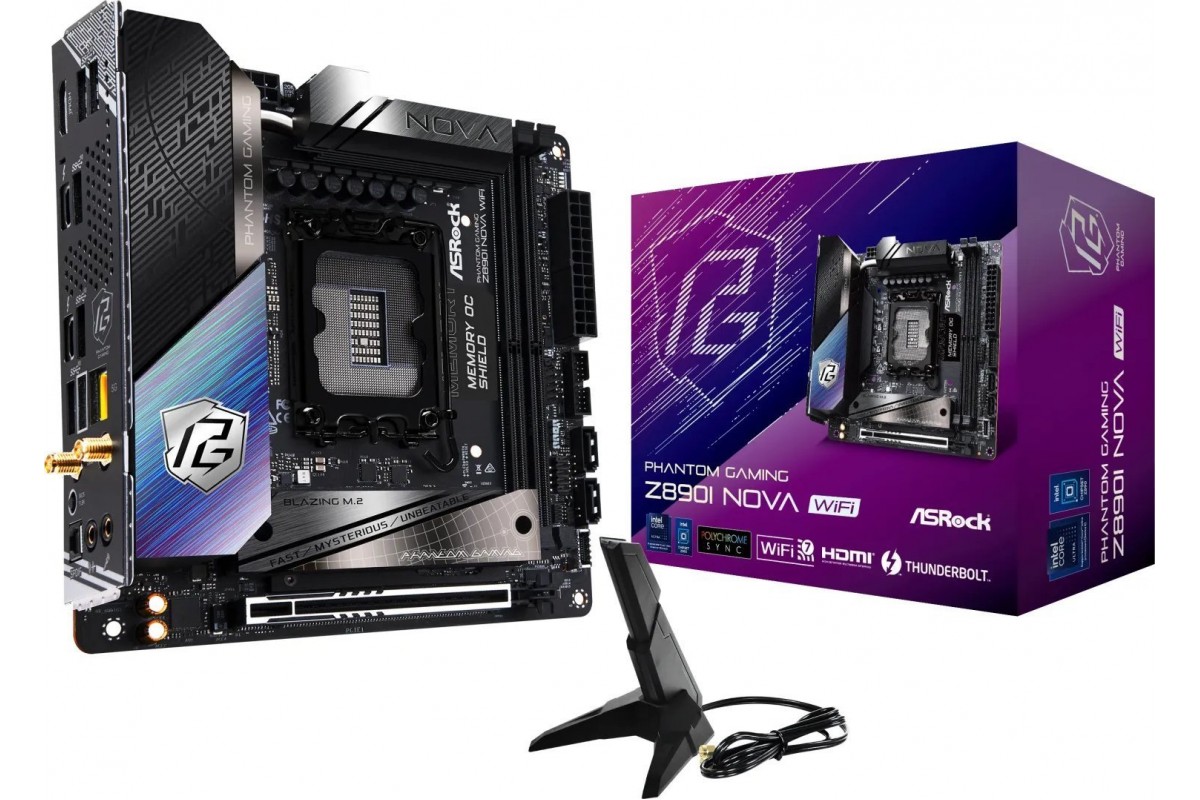

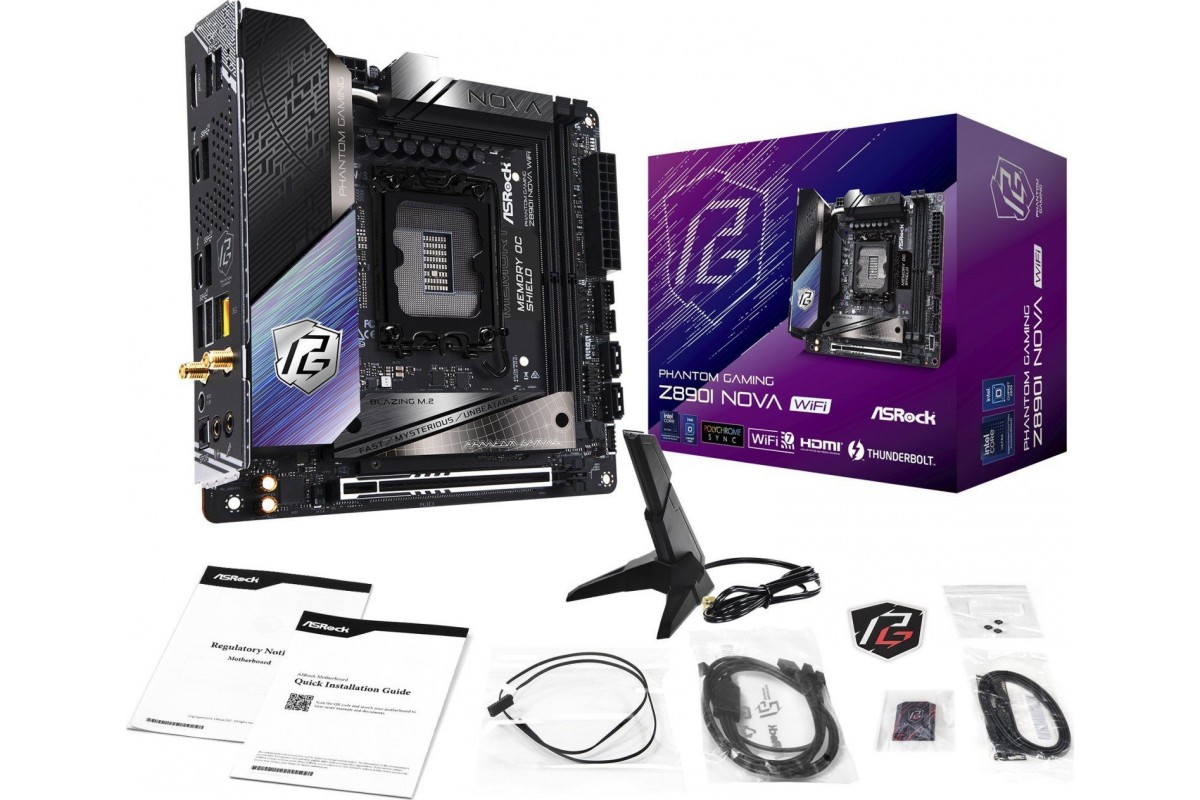

Motherboard Included Accessories
Antena WiFi Przewód czujnika termicznego Przewód SATA III x2 Splitter ARGB LED Śruby do modułu M.2
