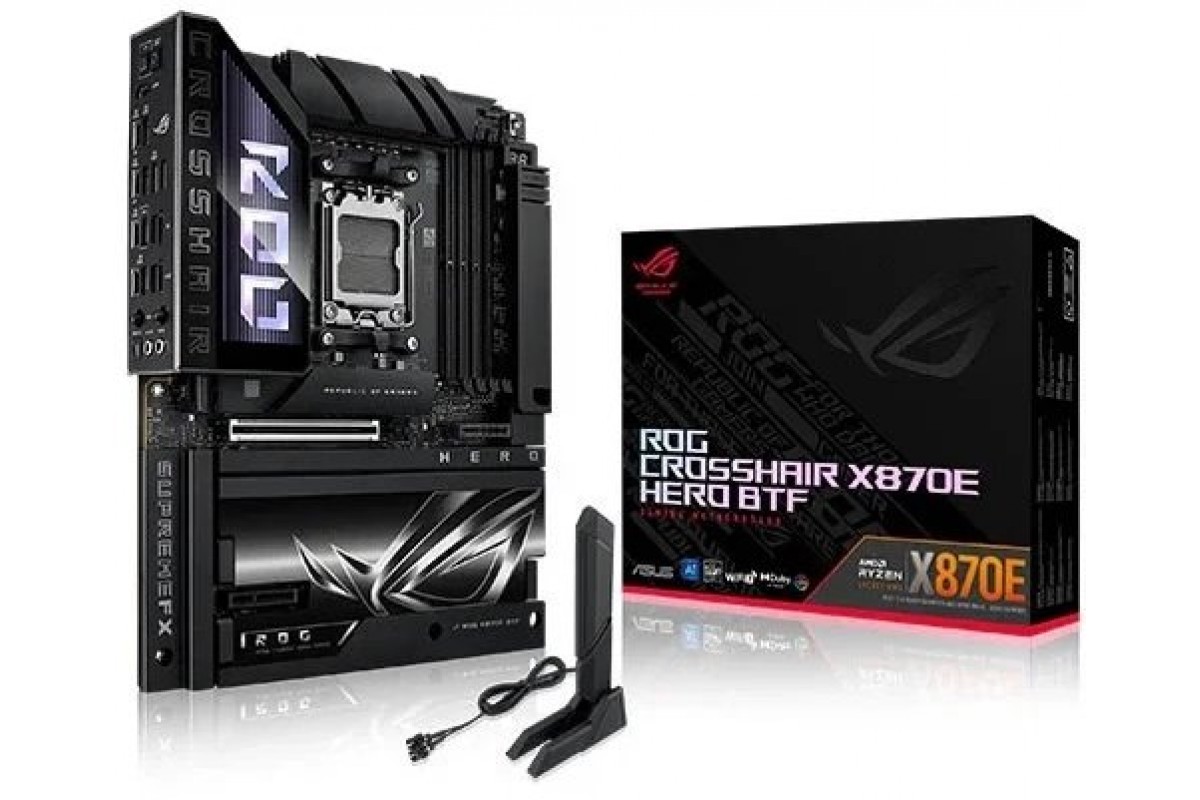

AMD X870E Asus ROG CROSSHAIR X870E HERO BTF

Motherboard Form Factor
ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD X870E
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
8000 MHz 8200 MHz 8600 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 4082
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
10/100/1000/2500 100/1000/2500/5000
Motherboard Network Card Chipset
Intel I226-V MediaTek Wi-Fi 7 MT7927 Realtek 5GbE
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x5 SATA 3 x4
Motherboard Internal Connectors
Przełącznik linii PCIe x1 Przycisk FlexKey x1 Przycisk włączenia zasilania x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB-C 3.2 Gen 2x2 x1 Złącze 12V-2X6 x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze AURA Addressable Gen 2 x3 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze czujnika termicznego x1 Złącze Graphics Card High-Power x1 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x4 Złącze W_PUMP+ x1
Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 RJ-45 x2 S/PDIF Optyczne x1 USB 3.2 Gen 2 (3.1 Gen 2) x6 USB-C 3.2 Gen 2 (3.1 Gen 2) x2 USB4 x2 Złącze anteny WiFi x2 Złącze audio x2
Motherboard Included Accessories
Antena WiFi Naklejki Otwieracz do butelek ROG Pendrive Przedłużacz ARGB Przewód SATA III x4 Śruby do modułu M.2
