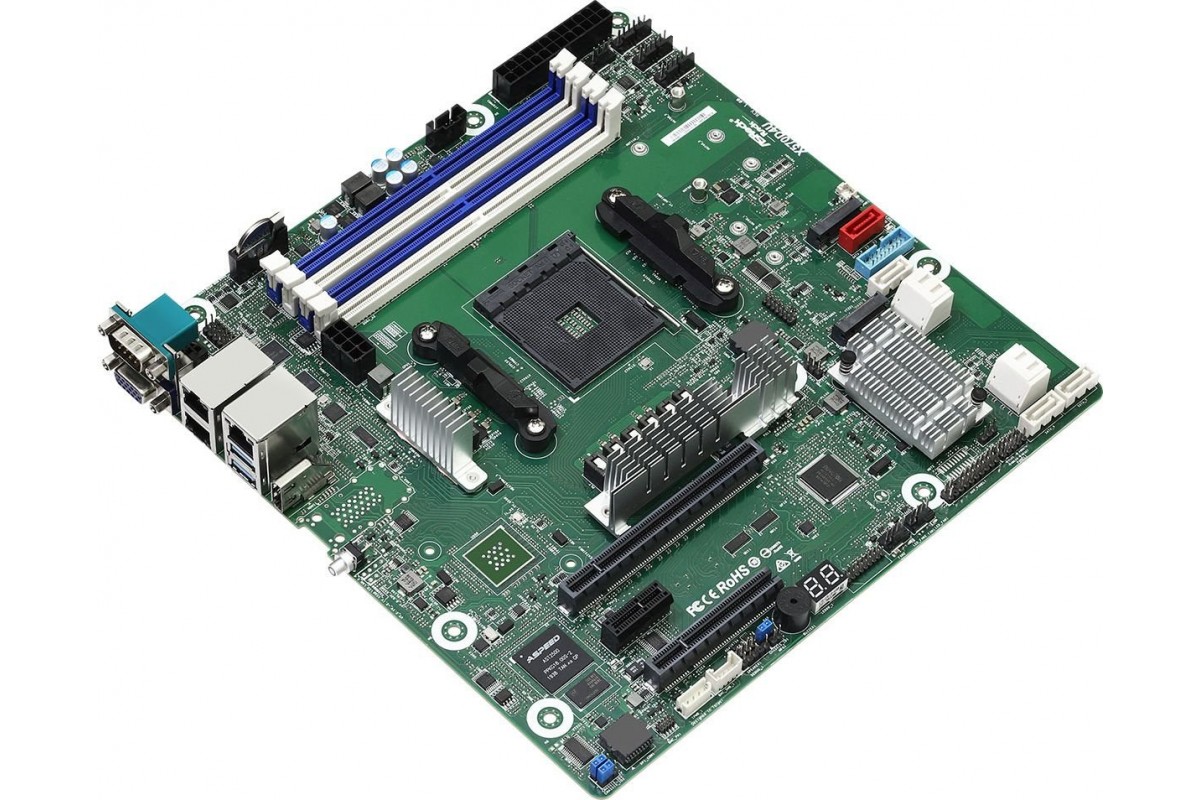

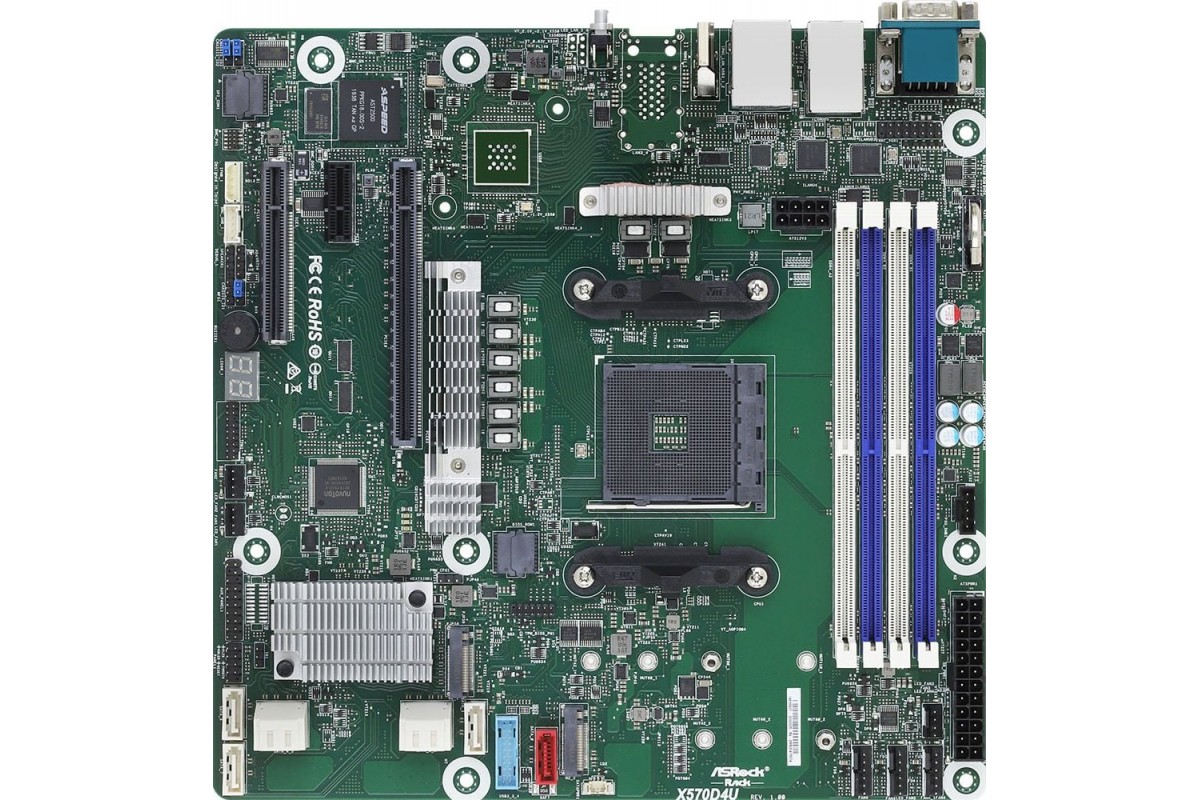

AMD X570 ASRock X570D4U

Motherboard Form Factor
Micro ATX
Motherboard Width [mm]
244
Motherboard Depth [mm]
244
Motherboard Color
Green
Motherboard Usage
Other
Motherboard Chipset
AMD X570
Motherboard CPU Socket
Socket AM4
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR4
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
2666 MHz 3200 MHz
Motherboard Maximum Memory Capacity
32 GB
Motherboard Multi-channel Architecture
No
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
No dotyczy
Motherboard Audio Channels
No dotyczy
Motherboard Integrated Network Card
10/100/1000 x2
Motherboard Network Card Chipset
Intel I210
Motherboard Wireless Connectivity
No
Motherboard Expansion Slots
PCI Express x1 (1 szt.) PCI Express x16 (1 szt.) PCI Express x8 (1 szt.)
Motherboard Drive Connectors
M.2 slot x2 SATA 3 x8
Motherboard Internal Connectors
Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x1 Złącze buzzer x1 Złącze czujnika otwarcia obudowy x1 Złącze FAN x6 Złącze głośnika x1 Złącze przedniego panelu x1 Złącze TPM x1 Złącze VGA power x1 Zworka Clear CMOS x1
Motherboard Rear Panel
D-Sub (VGA) x1 HDMI x1 Port szeregowy x1 RJ-45 x2 USB 3.2 Gen 2 (3.1 Gen 2) x2
