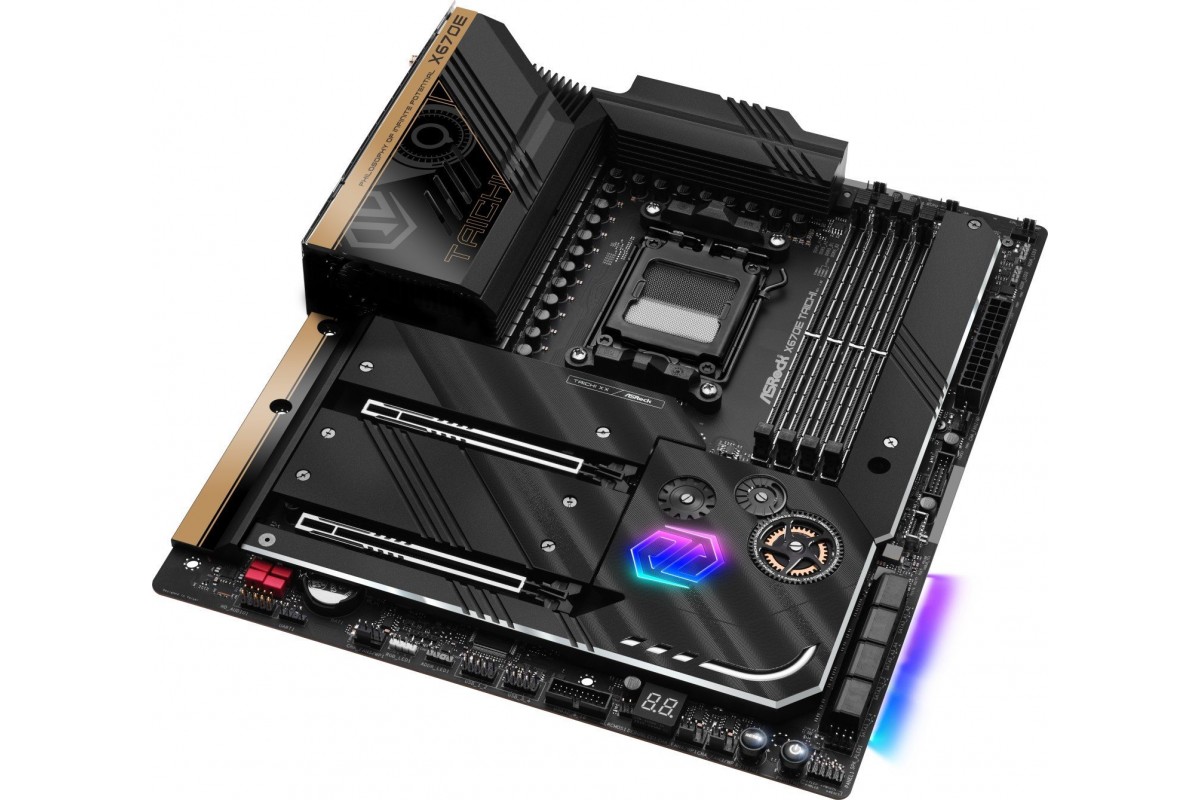

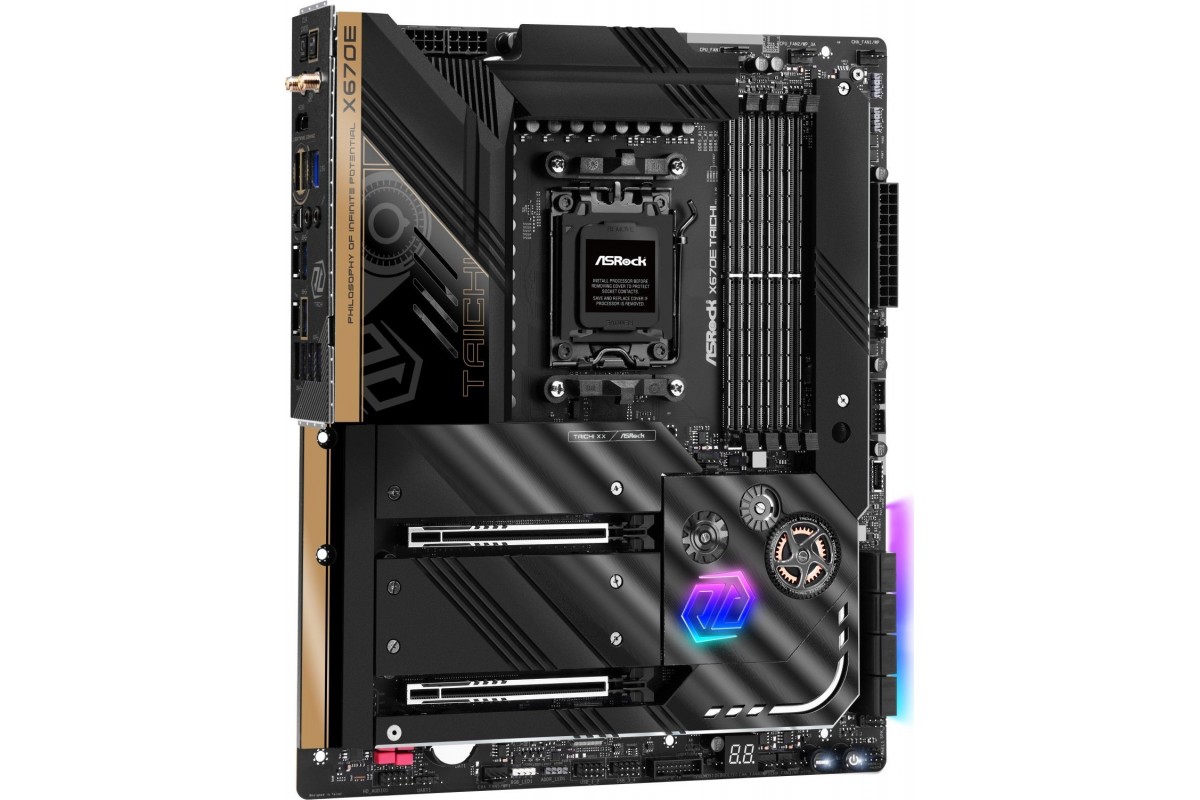

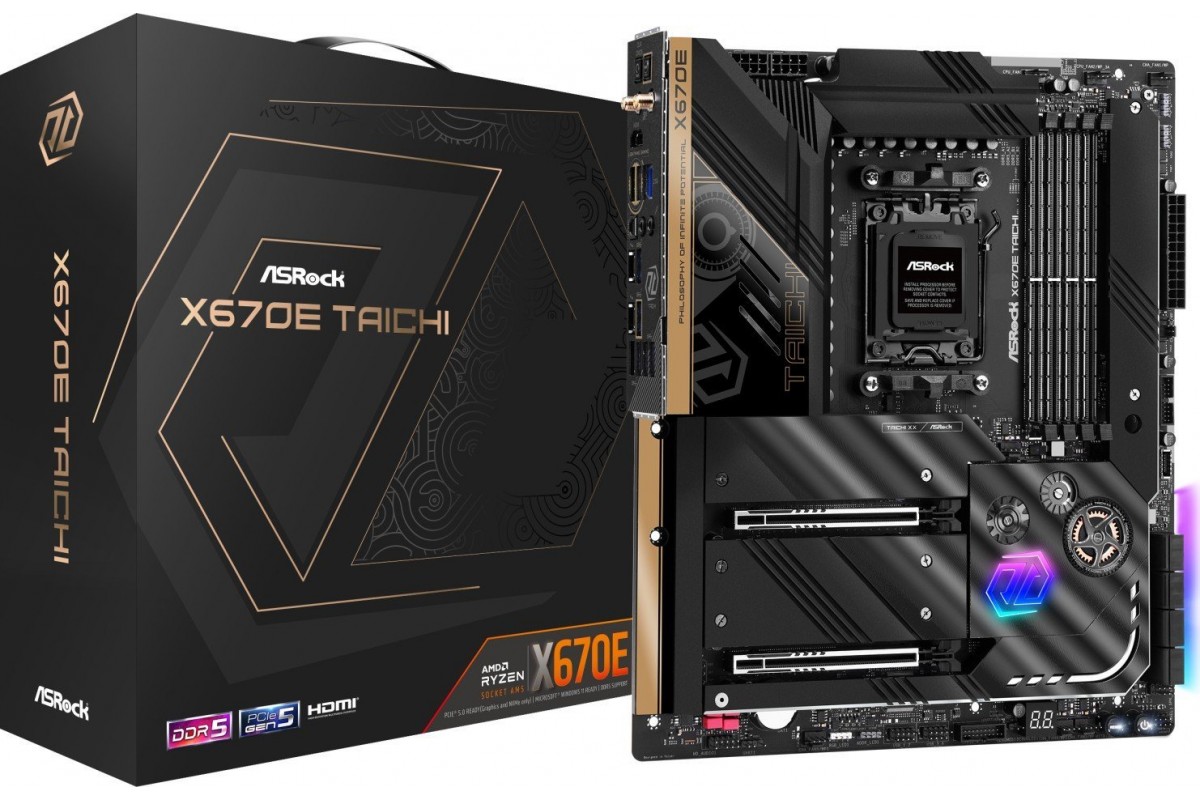

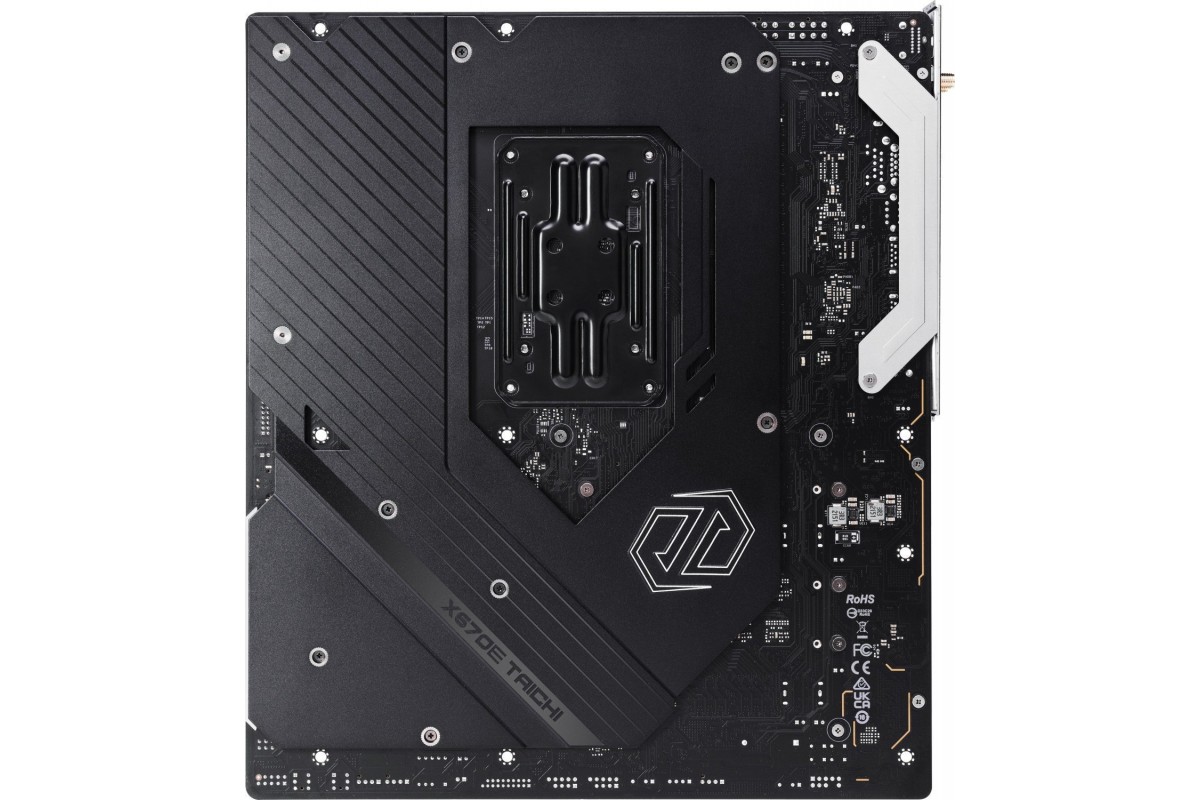

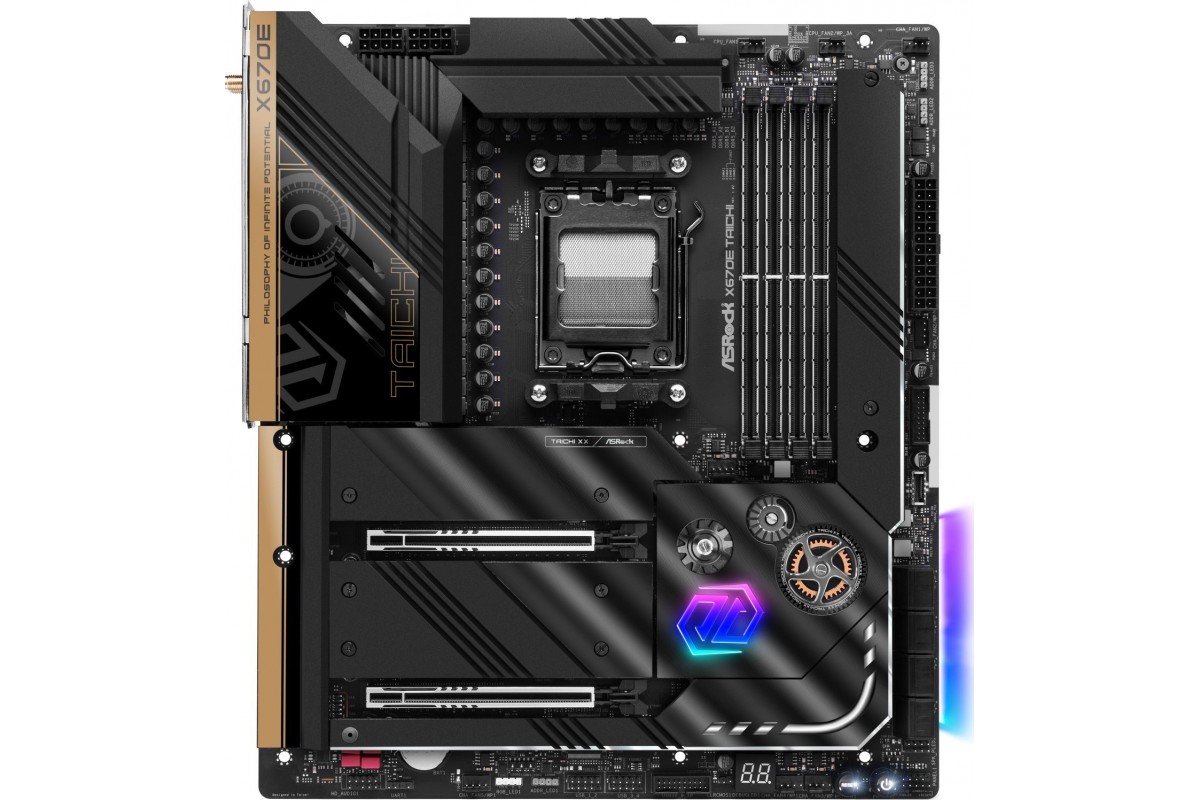

AMD X670E ASRock X670E TAICHI

Motherboard Form Factor
Extended ATX
Motherboard Width [mm]
267
Motherboard Depth [mm]
305
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD X670E
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 6000 MHz 6200 MHz 6600 MHz
Motherboard Maximum Memory Capacity
128 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
AMD CrossFireX
Motherboard Audio Chipset
Realtek ALC 4082
Motherboard Audio Channels
5.1
Motherboard Integrated Network Card
10/100/1000/2500
Motherboard Network Card Chipset
Killer AX1675x Killer E3100G
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Motherboard Expansion Slots
M.2 Wi-Fi (1 szt.) PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x4 SATA 3 x8
Motherboard Internal Connectors
Dioda Dr. Debug x1 Przycisk Reset x1 Przycisk włączenia zasilania x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x2 USB-C 3.2 Gen 2x2 x1 Złącze addressable RGB LED strip 5V x3 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze CPU FAN 4-pin x1 Złącze głośnika x1 Złącze RGB LED x1 Złącze SYS FAN 4-pin x6

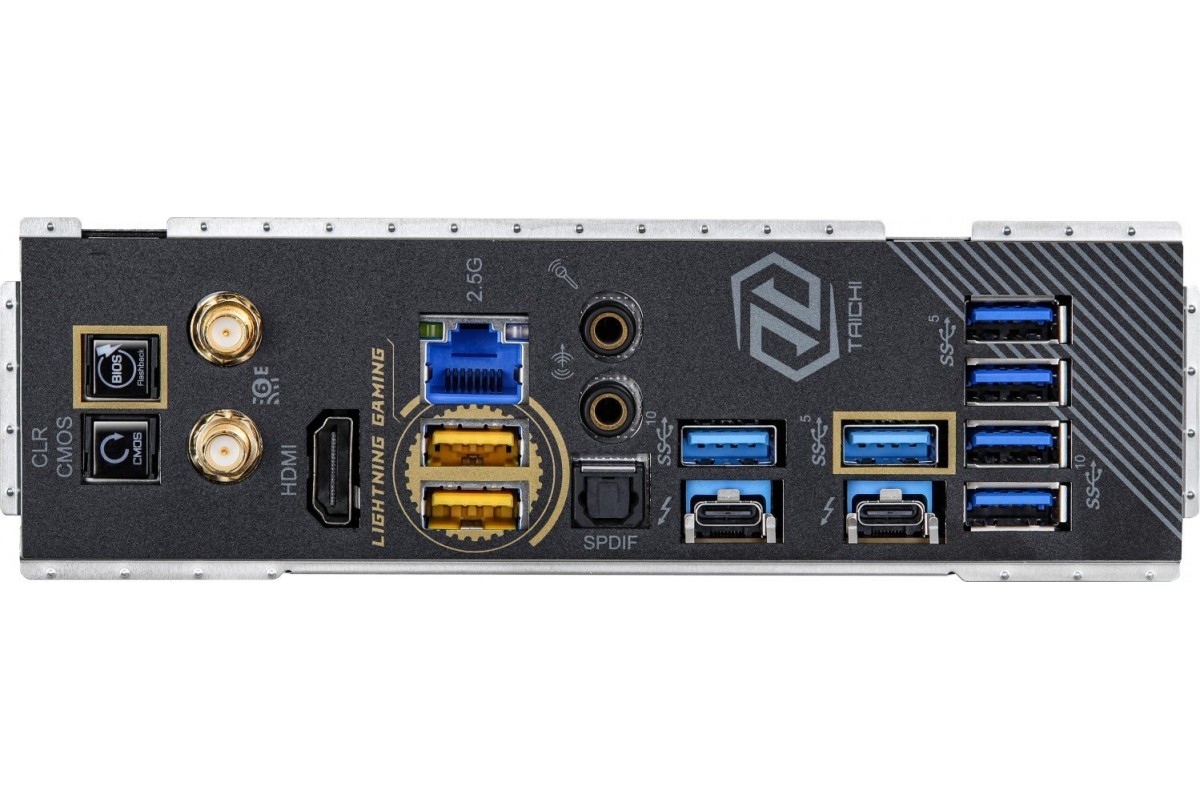

Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 RJ-45 x1 S/PDIF Optyczne x1 Thunderbolt 4 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x3 USB 3.2 Gen 2 (3.1 Gen 2) x5 Złącze anteny WiFi x2 Złącze audio x2

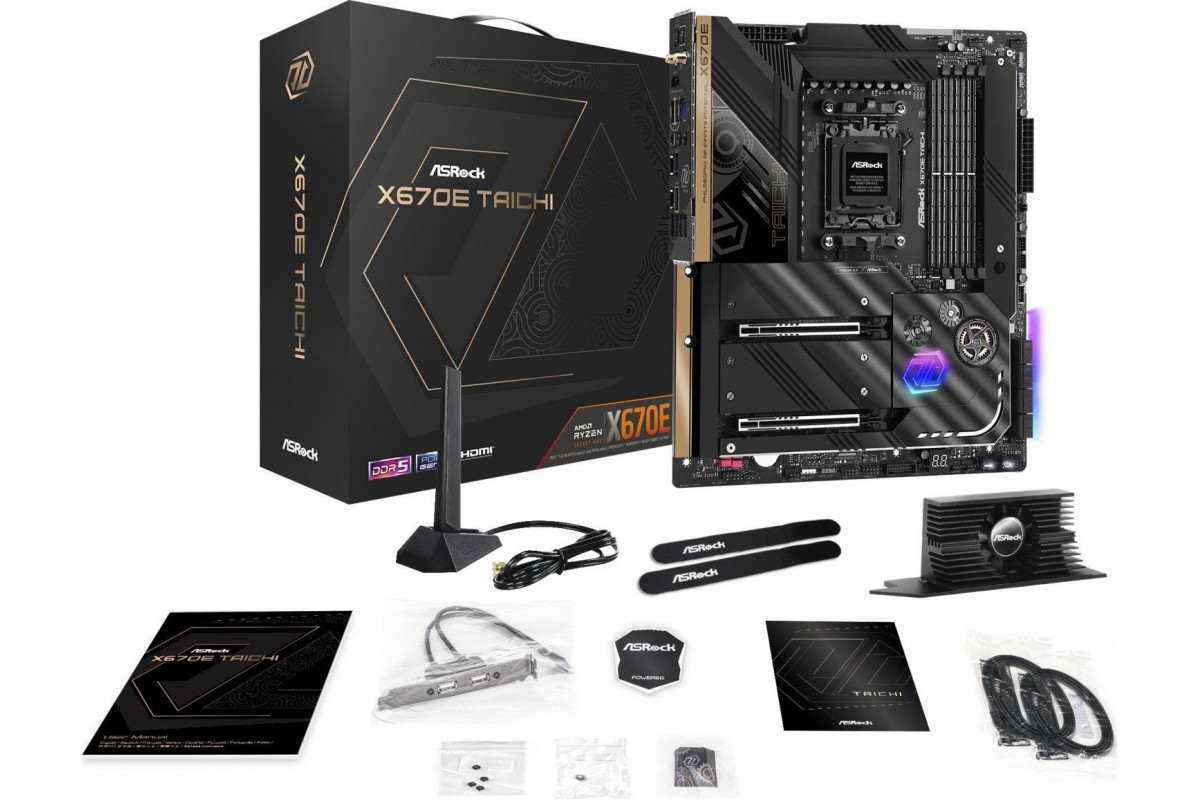

Motherboard Included Accessories
Antena WiFi Przewód SATA III x4 Śruby do modułu M.2
