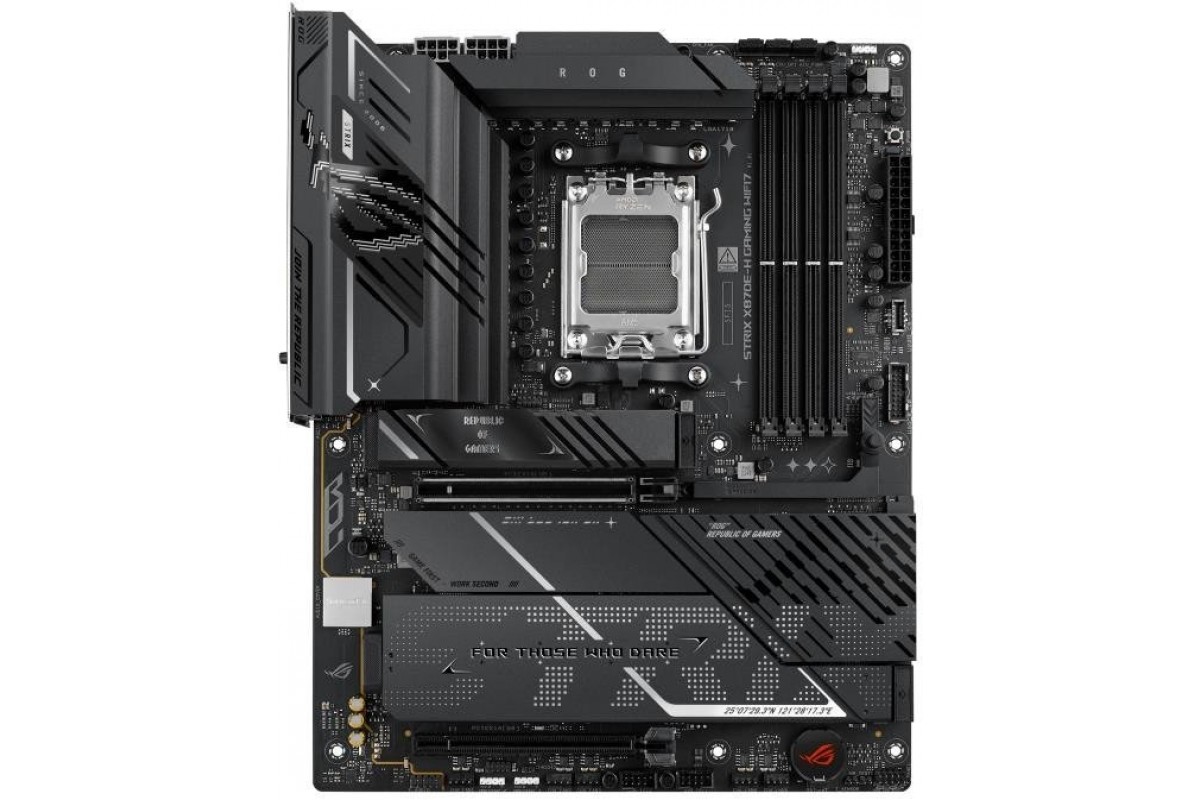

AMD X870E ROG STRIX X870E-H GAMING WIFI7

Motherboard Form Factor
ATX
Motherboard Width [mm]
305
Motherboard Depth [mm]
244
Motherboard Color
Black
Motherboard Usage
Gaming
Motherboard Chipset
AMD X870E
Motherboard CPU Socket
Socket AM5
Motherboard Supported Processors
AMD Ryzen
Motherboard RAID Controller
RAID 0 RAID 1 RAID 10 RAID 5
Motherboard Memory Standard
DDR5
Motherboard Connector Type
U-DIMM
Motherboard Number of Memory Slots
4
Motherboard Memory Frequency
4800 MHz 5200 MHz 5600 MHz 6000 MHz 6200 MHz 6400 MHz 6600 MHz 6800 MHz 7000 MHz 7200 MHz 7600 MHz 7800 MHz 8000 MHz
Motherboard Maximum Memory Capacity
256 GB
Motherboard Multi-channel Architecture
Dual-Channel
Motherboard Integrated Graphics Support
Yes
Motherboard Graphics Chipset
Zależny od procesora
Motherboard Multi-GPU Support
No
Motherboard Audio Chipset
Realtek ALC 1220P
Motherboard Audio Channels
7.1
Motherboard Integrated Network Card
100/1000/2500/5000
Motherboard Network Card Chipset
Realtek 5GbE Realtek Wi-Fi 7 RTL8922AE
Motherboard Wireless Connectivity
Bluetooth Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
Motherboard Expansion Slots
PCI Express x16 (2 szt.)
Motherboard Drive Connectors
M.2 slot x4 SATA 3 x4
Motherboard Internal Connectors
Przycisk włączenia zasilania x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x1 USB-C 3.2 Gen 2x2 x1 Złącze AIO_PUMP 4-pin x1 Złącze ATX 24-pin 12V x1 Złącze ATX 8-pin 12V x2 Złącze audio panelu przedniego (AAFP) x1 Złącze AURA Addressable Gen 2 x3 Złącze CPU FAN 4-pin x1 Złącze CPU_OPT FAN 4-pin x1 Złącze czujnika otwarcia obudowy x1 Złącze czujnika termicznego x1 Złącze przedniego panelu x1 Złącze SYS FAN 4-pin x5 Zworka CPU/DRAM overvoltage x1
Motherboard Rear Panel
HDMI x1 Przycisk BIOS Flashback x1 Przycisk Clear CMOS x1 RJ-45 x1 S/PDIF Optyczne x1 USB 2.0 x2 USB 3.2 Gen 1 (3.0/3.1 Gen 1) x6 USB 3.2 Gen 2 (3.1 Gen 2) x3 USB-C 3.2 Gen 2 (3.1 Gen 2) x1 USB4 x2 Złącze anteny WiFi x2 Złącze audio x2
Motherboard Included Accessories
Antena WiFi Brelok do kluczy Naklejki Opaski do kabli Przewód SATA III x2
